RT60 Rough Terrain Cran 02 - 5

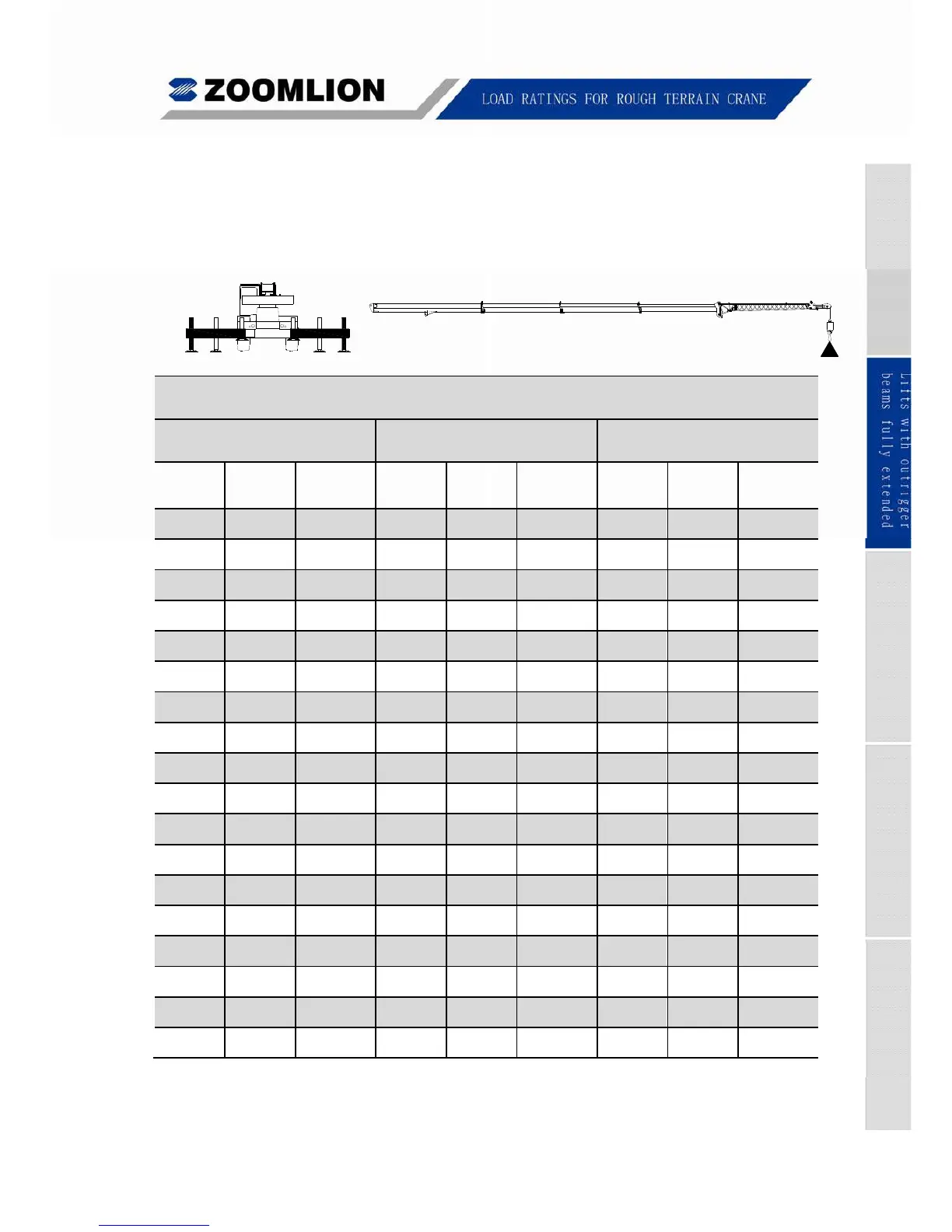

2.2 10 M JIB RATED LOADS
USE THIS CHART ONLY WHEN ALL OUTRIGGERS ARE FULLY EXTENDED
USE THIS CHART ONLY WHEN JIB SECTION 2 IS NOT PULLED OUT FROM JIB
SECTION 1
Rated loads on outriggers fully extended - 360°
(Rated load unit: Kg)
0° OFFSET 20° OFFSET 40° OFFSET
BOOM
ANGLE
(º)
LOAD
RADIUS
(MM)
360º
(KG)
BOOM
ANGLE
(º)
LOAD
RADIUS
(MM)
360º
(KG)
BOOM
ANGLE
(º)
LOAD
RADIUS
(MM)
360º
(KG)
78 9020 5140 78 11887 2840 78 14186 2090
76 10823 4740 76 13648 2740 76 15873 2040
74 12610 4390 74 15389 2640 74 17538 1990
72 14379 4090 72 17110 2540 72 19179 1940
70 16128 3840 70 18807 2440 70 20795 1890
68 17856 3640 68 20478 2340 68 22382 1840
66 19559 3440 66 22123 2290 66 23940 1840
64 21235 3240 64 23738 2240 64 25467 1790
62 22884 3090 62 25321 2140 62 26960 1790
60 24502 2940 60 26871 2090 60 28418 1740
58 26088 2540 58 28386 2040 58 29838 1740
56 27640 2190 56 29864 1990 56 31220 1740
54 29155 1890 54 31304 1740 54 32561 1650
52 30633 1630 52 32702 1510 52 33861 1440
50 32071 1400 50 34059 1310 50 35116 1250
48 33467 1200 48 35371 1130 48 36327 1080
46 34820 1030 46 36638 970 46 37490 930
44 36128 870 44 37858 820 44 38606 790
