Zoomlion ZCC2600CR User Manual

Description of Crane
Operator’s Manual for Crawler Crane
2.2 Terminology
2.2.1 Boom configurations
S
SL
SW SF
SFV

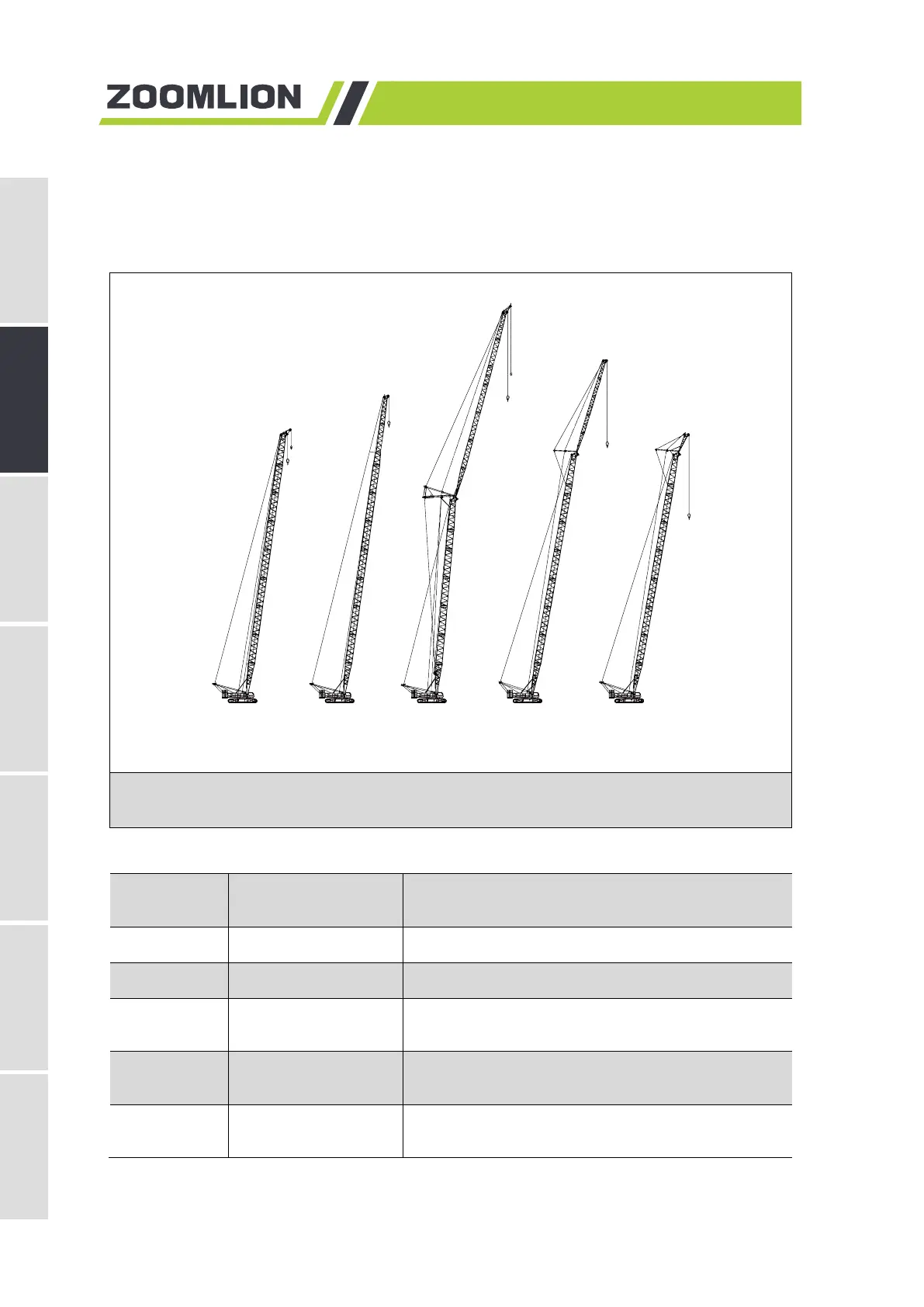

Figure 2-2 Boom configurations
Table 2-1 Description of boom configurations
Configuration
No.
Description Parameters
S Heavy duty boom 20m-83m
SL Light duty boom 86m-95m
SW
Luffing jib on heavy
duty boom
S-boom =23m-62m
W-jib = 21m-60m
SF
Fixed jib on heavy duty
boom
S-boom = 29m-77m
F-jib =12m-30m
SFV
Heavy fixed jib on
heavy duty boom
S-boom = 41m-77m
FV-jib = 6m
