Assembly and
Dismantling
O
perator’s Manual for Crawler Crane
5-16

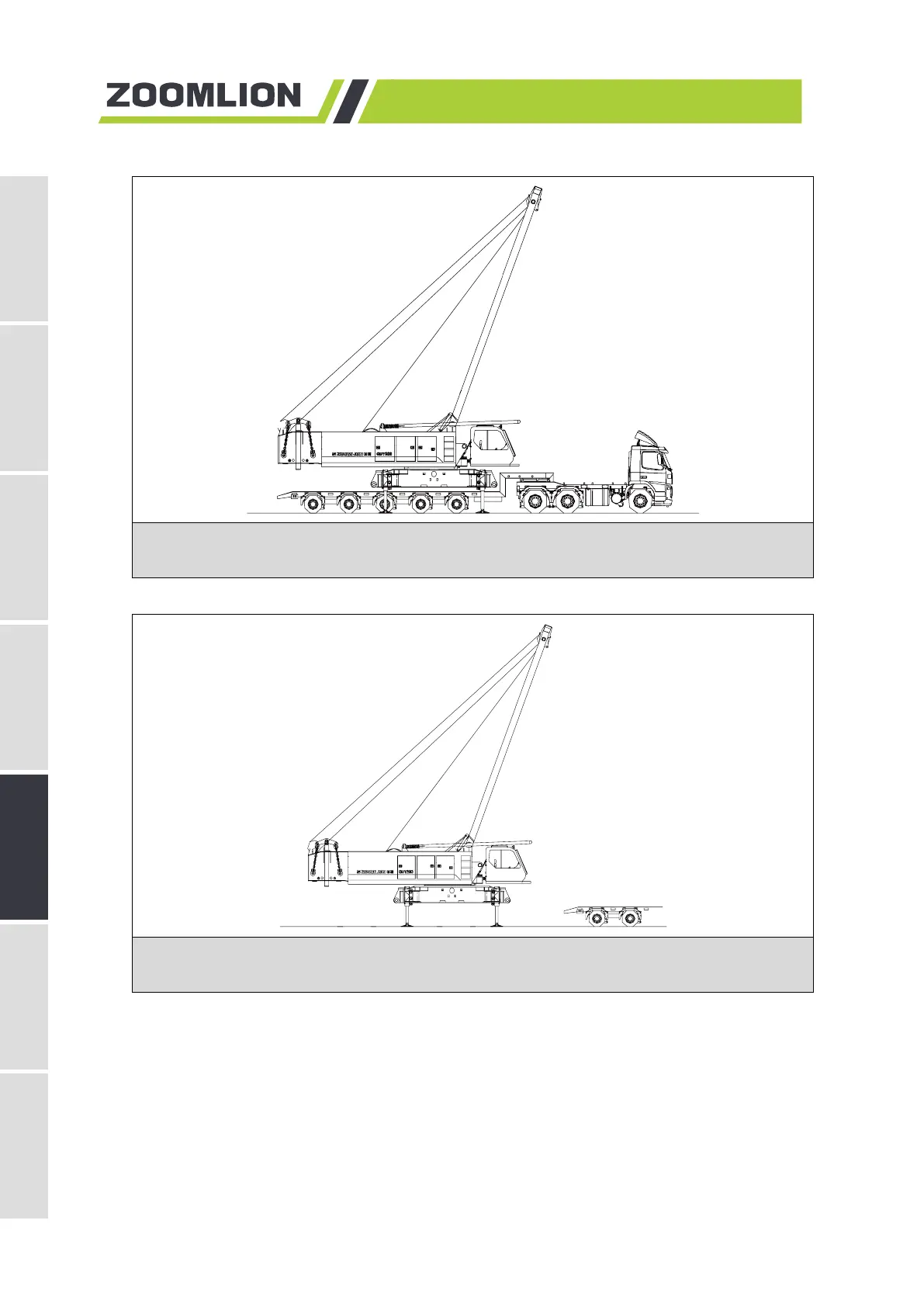

Figure 5-13 Extending support cylinders
f) Dr
ive the low-loader away.
Figure 5-14 Drive the low-loader away
5.3.2 Attaching the first crawler carrier
a) Tilt the A-frame forwards according to the method in Section 5.2 “Operation of A-frame”.
b) Turn “self-assembly& dismantling” switch on the right control panel to right and push the
right control lever (30) forwards, and then the mounting cylinder on A-frame will be
extended. Connect the mounting cylinder to crawler carrier with assembling chain.
