15
Hardware Installation

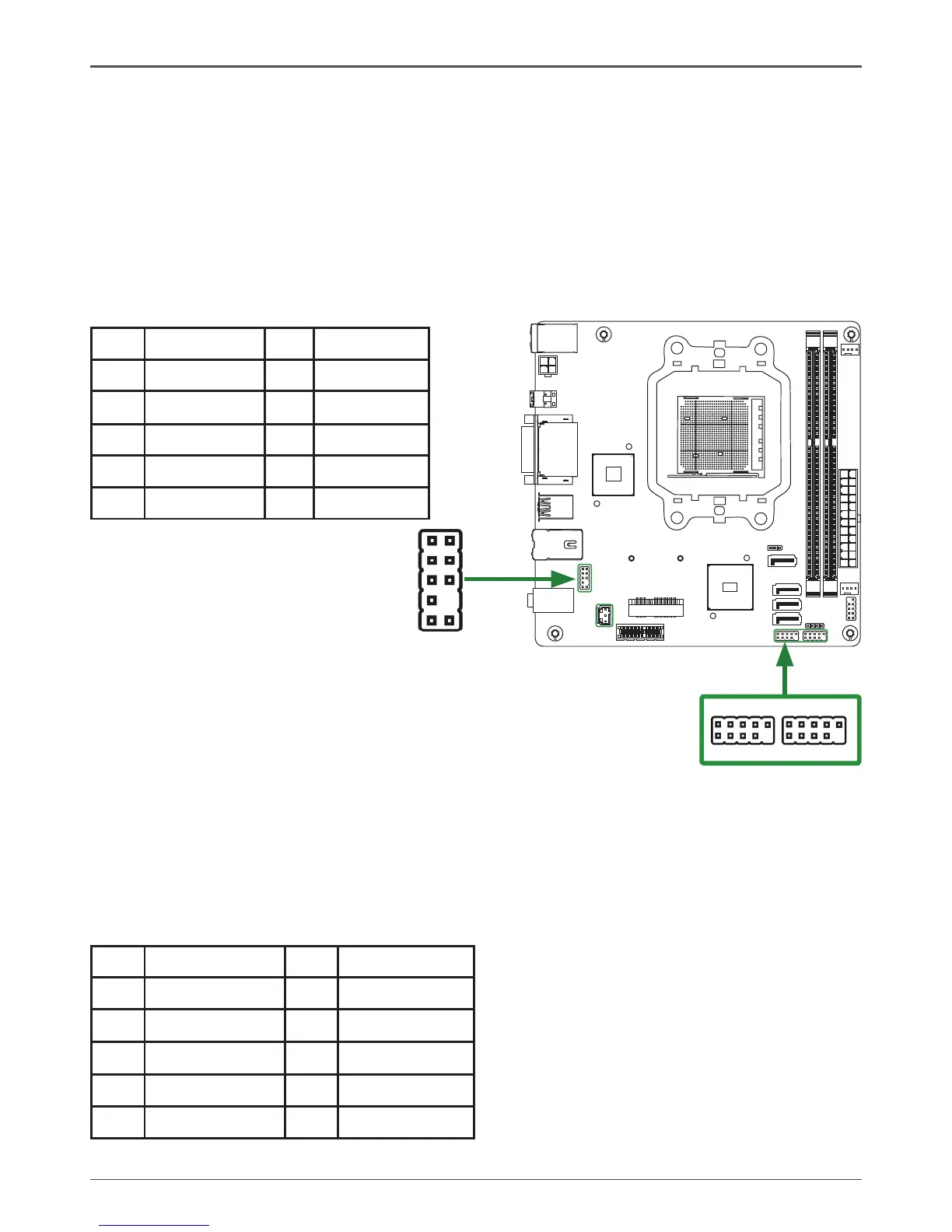

USB Headers
This motherboard contains four USB 2.0 ports and two USB 3.0 ports that are exposed
on the rear panel of the chassis (Figure 2). The motherboard also contains two 10-pin
internal headers onboard. The onboard headers are optional.
Note. Secure the bracket to either the front or rear panel of your chassis (not all
chassis are equipped with the front panel option).
FP USB1/FP USB2-Pin Denition
PIN Assignment PIN Assignment
1 VCC 2 VCC
3 USBP0- 4 USBP1-
5 USBP0+ 6 USBP1+
7 GND 8 GND
9 KEY 10 NC
FP USB1
1
1
FP USB2
FP Audio Header
The audio connector supports HD audio
standard and provides two kinds of audio
output choices: the Front Audio, the Rear
Audio. The front Audio supports re-tasking
function.
Note:
In order to utilize the front audio
header, your chassis must have front
audio connector. Also please make
sure the pin assignment on the cable
is the same as the pin assignment on
the mainboard header. To find out if
the chassis you are buying supports a
front audio connector, please contract
your dealer.
FP_AUDIO1-Pin Denition
PIN Assignment PIN Assignment
1 MIC2(L) 2 GND
3 MIC(R) 4 -ACZ-DET
5 Front Audio(R) 6 Reserved
7 FAVDIO-JD 8 Key(No pin)
9 Front Audio(L) 10 Reserved
1
FP_AUDIO1
To Next Page
