Zotac 880G-ITX wifi User Manual

16
AMD RS880 motherboard

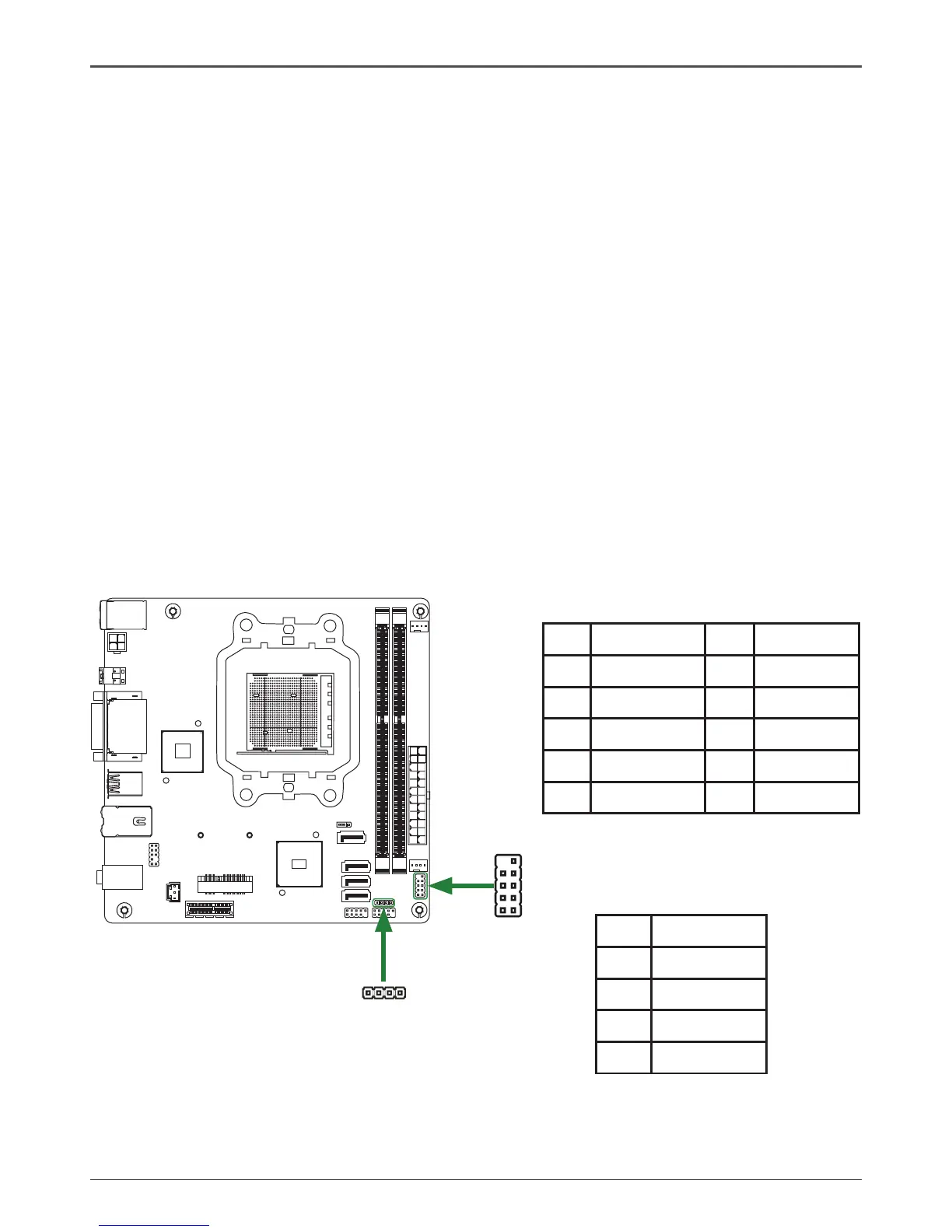

Front Panel Header
The front panel header on this motherboard is one connector used to connect the
following four cables:
q PWR LED
Attach the front panel power LED cable to these two pins of the connector. The
Power LED indicates the system’s status.
q PWR SW
Attach the power button cable from the case to these two pins. Pressing the
power button on the front panel turns the system on and off rather than using the
power supply button.
q HDD LED
Attach the hard disk drive indicator LED cable to these two pins. The HDD indicator
LED indicates the activity status of the hard disks.
q RST SW
Attach the Reset switch cable from the front panel of the case to these two pins.
The system restarts when the RESET switch is pressed.
Note: Some chassis do not have all four cables. Be sure to match the name on
the connectors to the corresponding pins.
FP2-Pin Denition
Pin Signal Pin Signal
1 HDD_LED+ 2 PW_LED+
3 HDD_LED- 4 PW_LED-
5 GND 6 PWR_SW
7 RESET 8 GND
9 NC 10 KEY
Speaker Header-FP1
FP1-Pin Denition
PIN Assignment
1 VCC
2 NC
3 NC
4 SPK-
120
240
121
120
240
121
1.5V 1.5V
. .
.
1
FP2
FP1
1
