Installing Drivers and Software
Speaker Conguration
Step 1:
Plug in the device in any available jack.
Step 2:

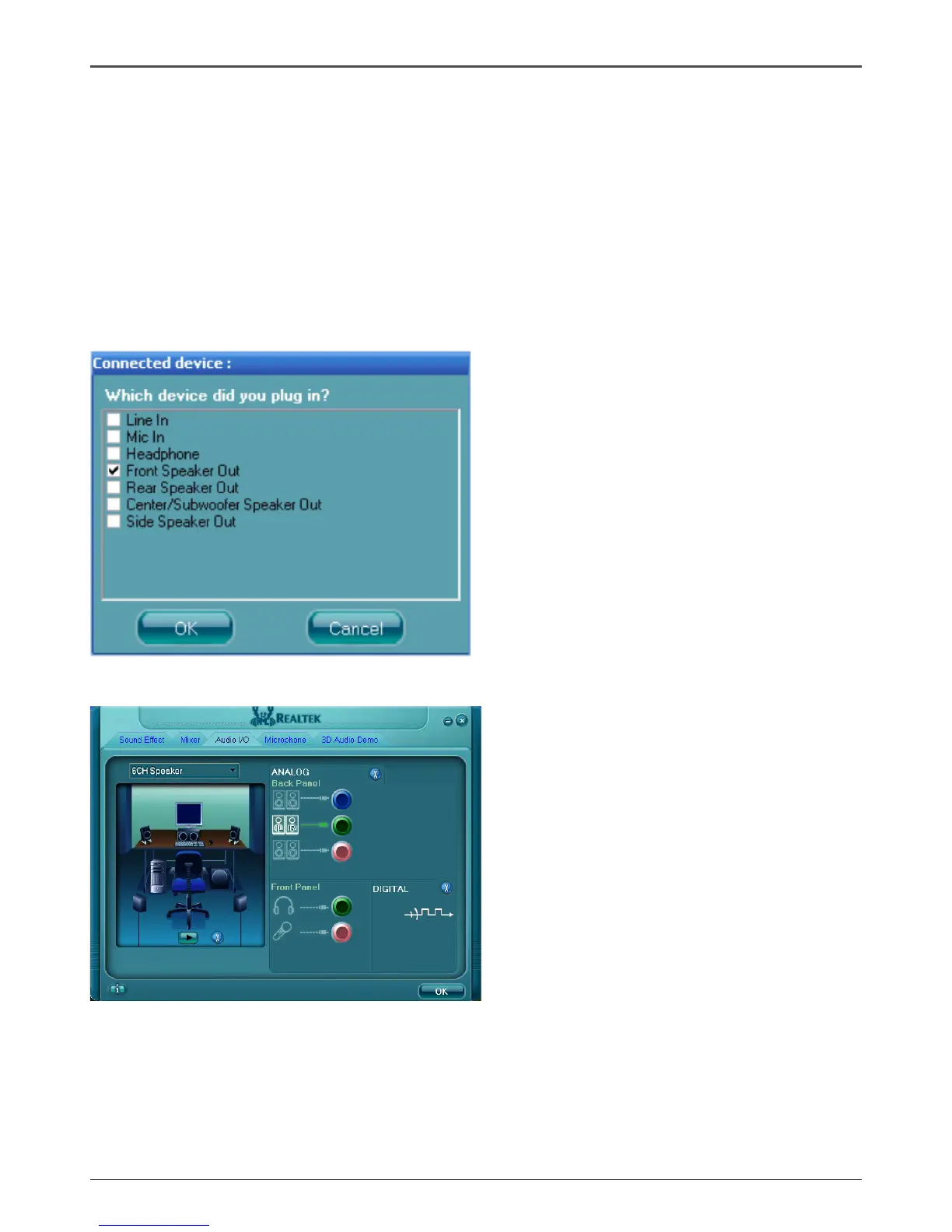

Dialogue “connected device” will pop up for your selection. Please select the
device you are trying to plug in.
*
If the device is
being plugged into
the correct
jack, you will
be able
to nd
the icon
beside the jack changed to the one that is same as your device.
*
If
not correct,
Realtek HD
Audio Manager will
guide you
to
plug the
device into
the
correct jack.
41
