47
SATA RAID User Manual
Entering the RAID BIOS Setup
1. After rebooting your computer, wait until you see the RAID software prompting
you to press <Ctrl-F>.

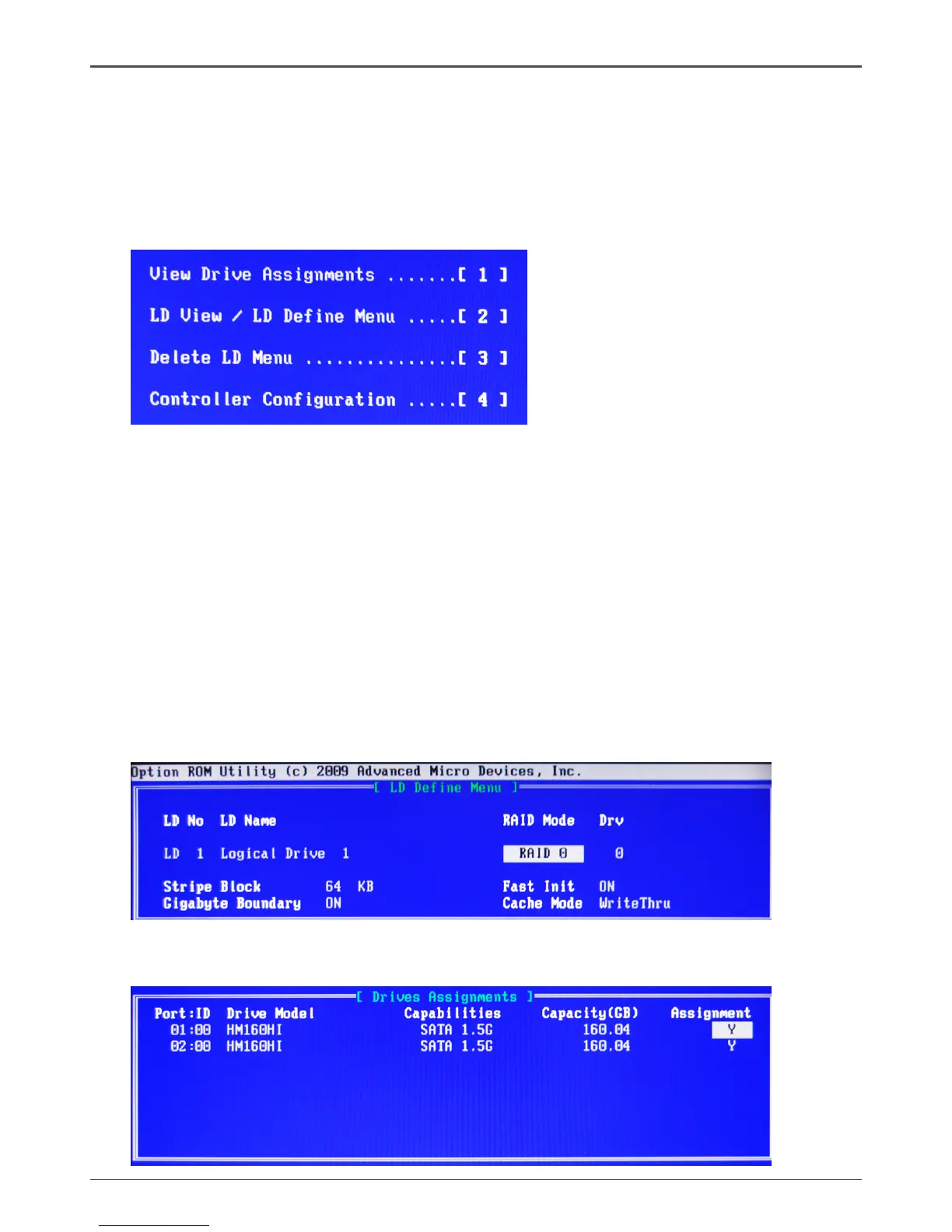

2. Option ROM Utility (c) 2009 Advanced Micro Devices, Inc.-Main Menu window
appears.
Creating a RAID set
1. In Main Menu, select <2> to enter LD View Menu, and press <Ctrl-C> to enter
LD Dene Menu.
a. In the RAID Mode eld, use the space bar to select a RAID Mode. The supported
RAID modes include Mirroring (RAID 1), Striping (RAID 0) and Stripe Mirroring
(RAID 10), Spanning(JBOD) and RAID 5. The following is an example of RAID 0
array creation.
b. If RAID 0 (Striping) is selected, you can manually set the striping block size. In the
Striping Block eld, use the UP or DOWN ARROW key to set the Striping Block
size. The KB is standard unit of Striping Block size. We recommend you leaving
it to the default setting-Optimal (64k). The size range is from 4k to 128k.
2. In Drives Assignments menu, use the space bar to select <Y>, and press <Ctrl-
Y>.
