ZOTAC ZBOX
6
Getting to know your ZOTAC ZBOX
Front view

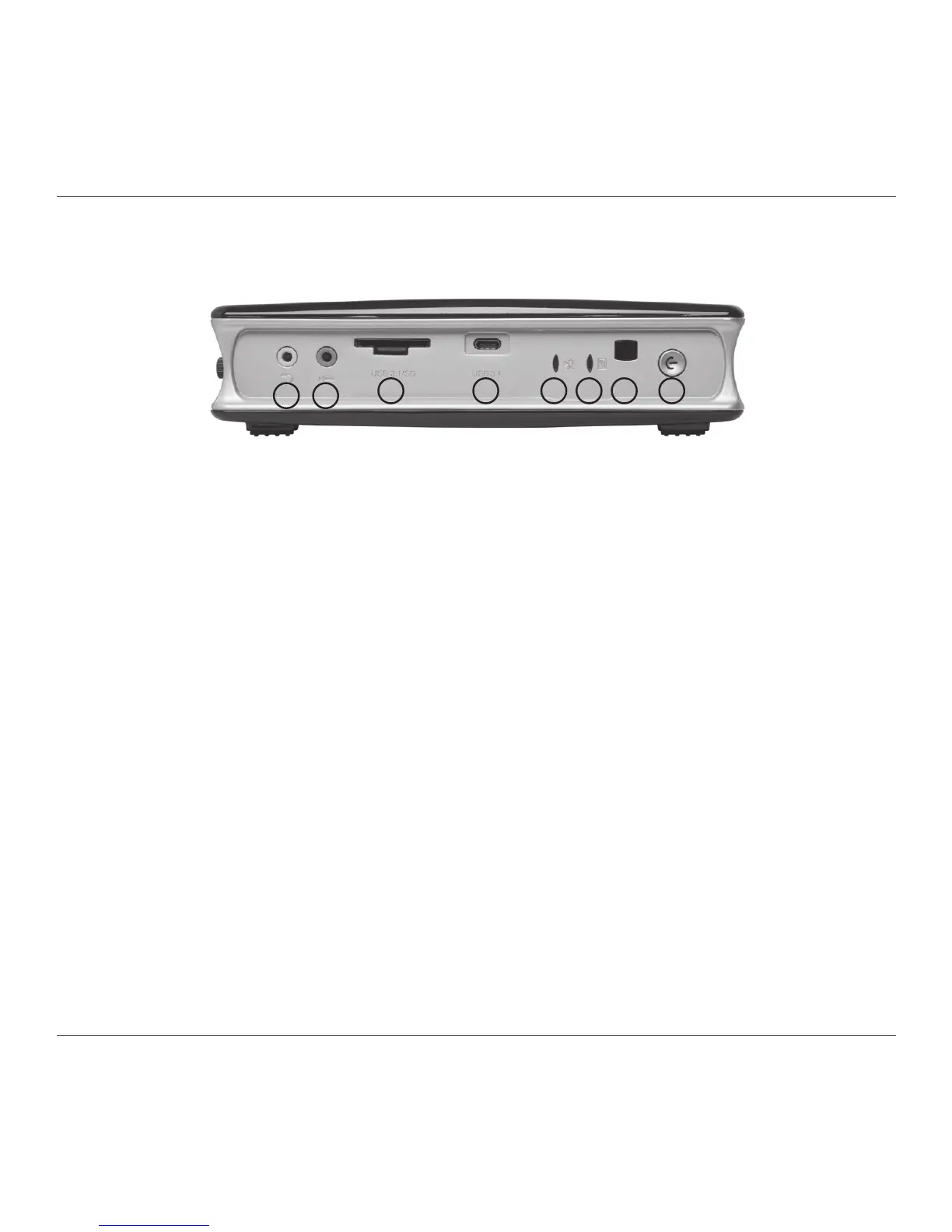

Refer to the diagram below to identify the components on the front of the ZBOX
1. Headphone/Audio Out jack
The stereo headphone jack (3.5mm) is used to connect the system’s audio output signal to
amplied speakers or headphones.
2. Microphone jack
The microphone jack is designed to connect a microphone for video conferencing, voice
narrations or simple audio recordings.
3. Combo USB 3.1 port / Memory card slot
The Combo USB 3.1 port / Memory card slot is compatible with USB 3.1 devices or SD/SDHC/
SDXC cards used in devices like digital cameras, MP3 players, mobile phones and PDAs.
4. USB 3.1 Type-C port
The type-C USB 3.1 port supports the SuperSpeed USB 3.1 devices and is backwards
compatible with USB 3.0/2.0/1.1 devices. Use this port for USB 3.1 devices for maximum
performance with USB 3.1 compatible devices.
5. WiFi LED
The WiFi LED blinks when data is being transfered over WiFi.
6. Hard disk LED
The hard disk LED blinks when data is being written onto or read from the hard disk drive.
7. IR receiver
The integrated IR receiver is used to receive signals from the IR remote control.
8. Power switch
The power switch allows powering ON and OFF the system.
