4.Installing Your Device

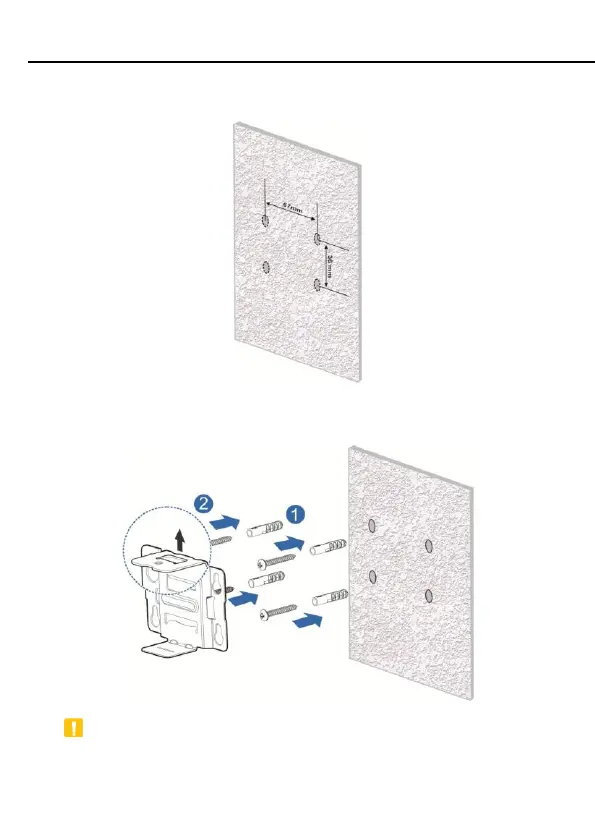

Installing the Device on a Wall
1. Mark the positions for drilling holes on the wall.
2. Firstly, use a 6mmpercussion drill to drill holes at the marked positions, and install four M6
expansionspigots.Secondly, use four M6 expansion bolts to fix the bracket to the wall.
CAUTION:
The screw hole of the bracketfaces upwards. Do not install the bracketupside
down.Otherwise,the screw cannot be installed later.
