Zte ZXHN H2640 User Manual

4 Configure the Internet
SJ-20200714160642-002 | 2020-07-27(R1.0)
4-3

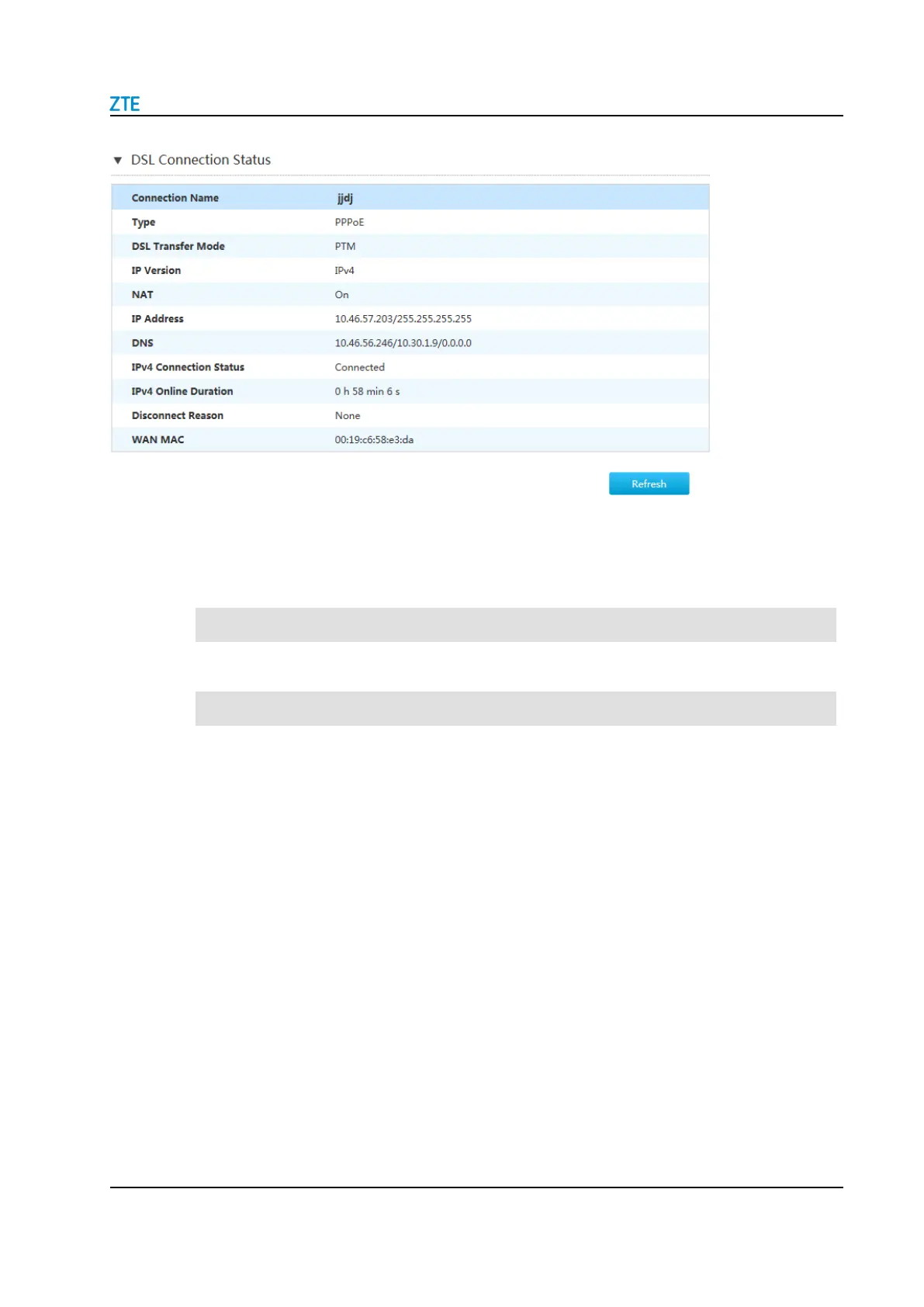

Figure 4-2 DSL Connection Status
2. Click Refresh to refresh the information.
4.1.2 Check the Ethernet Status
The section describes how to check the Ethernet status.
Checking the Ethernet Interface Information
1. On the main page of the ZXHN H2640, select Internet > Status > SFP/Ethernet >
SFP/Ethernet Interface Information to the SFP/Ethernet Interface Information
page, see Figure 4-3.
Steps
Abstract

Zte ZXHN H2640 Specifications

General

Device Type	Gateway
Model	ZXHN H2640
Dimensions	210 mm x 140 mm x 33 mm
Power Supply	12V DC/1.5A
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Wireless Standard	IEEE 802.11b/g/n/ac
Wireless Frequency Bands	2.4 GHz and 5 GHz
Maximum Wireless Speed	1200Mbps
Wi-Fi Standards	IEEE 802.11b/g/n/ac
WAN Interface	1 x GE port for WAN
DSL Standards	Not applicable (GE WAN port)
