2.4.1.5 Input devices
2.4.1.5.1 Override potentiometers
Thetwoover-ridepotentiometerscanbeusedfordierentpurposes,forinstancesettingthespindle
speed or the machine movement speed along a certain axis.
• Resolution: 0-255 linear
2.4.1.5.2 Handwheel (optional)
Thehandwheelisanoptionalaccessory.Itcanbeusedforthemachinemovementnetuninginthe
“handwheel incremental JOG” working mode.
Thehandwheelcounts40detentspereach360◦turn.Clockwiseturnsdecrementwhilecounter-
clockwise turns increment the counter.
2.4.1.5.3 Rubber keypad
The mobile panel has a rubber keypad containing 19 keys. 6 keys are command keys, useful for a
direct machine control. The remaining 13 keys are function keys, useful for navigating and operating
through the panels of the software application. The letter or the symbol printed on the keys reminds
the function.

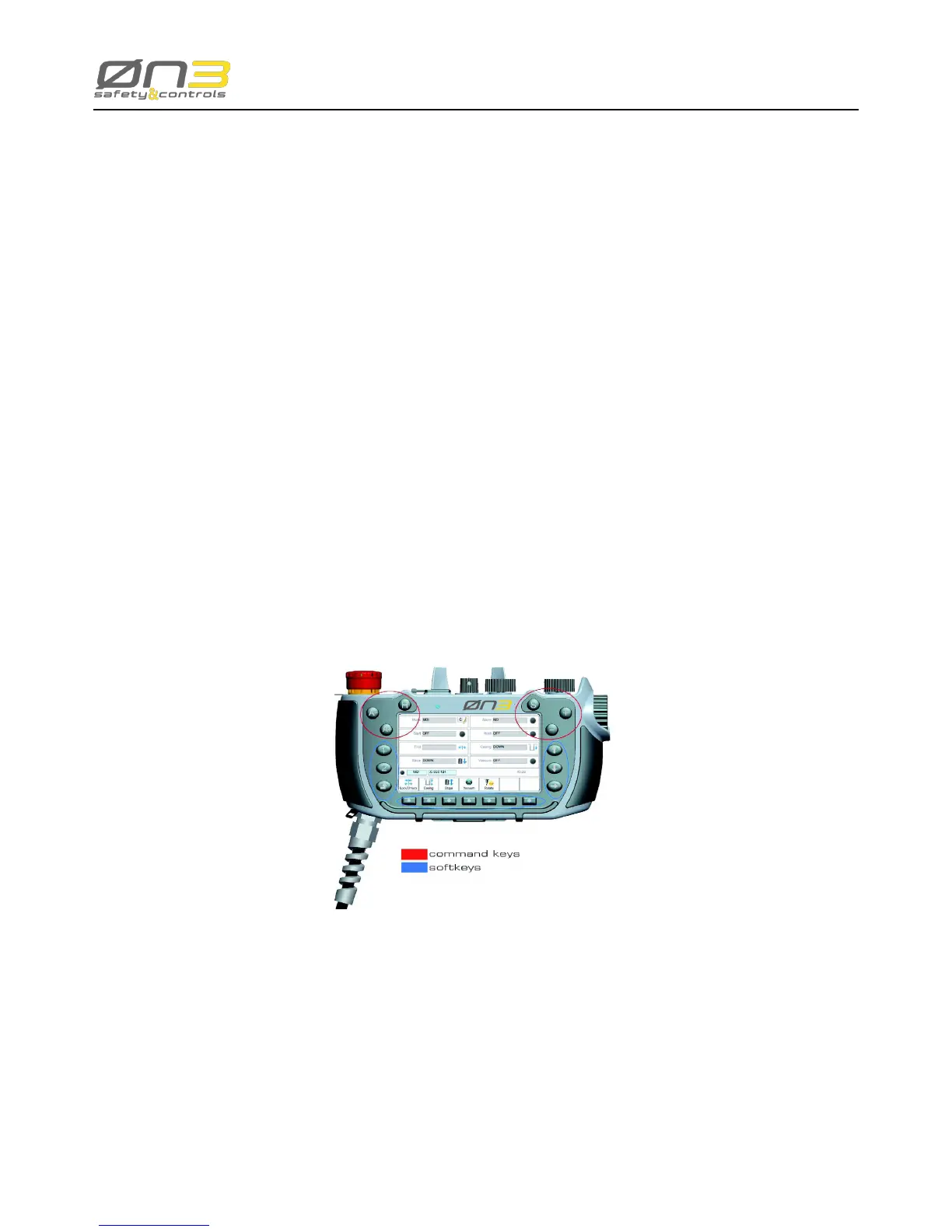

Figure 9: Keypad
