2easy DMR21/S8 - Page 15

2 EASY
MODULES

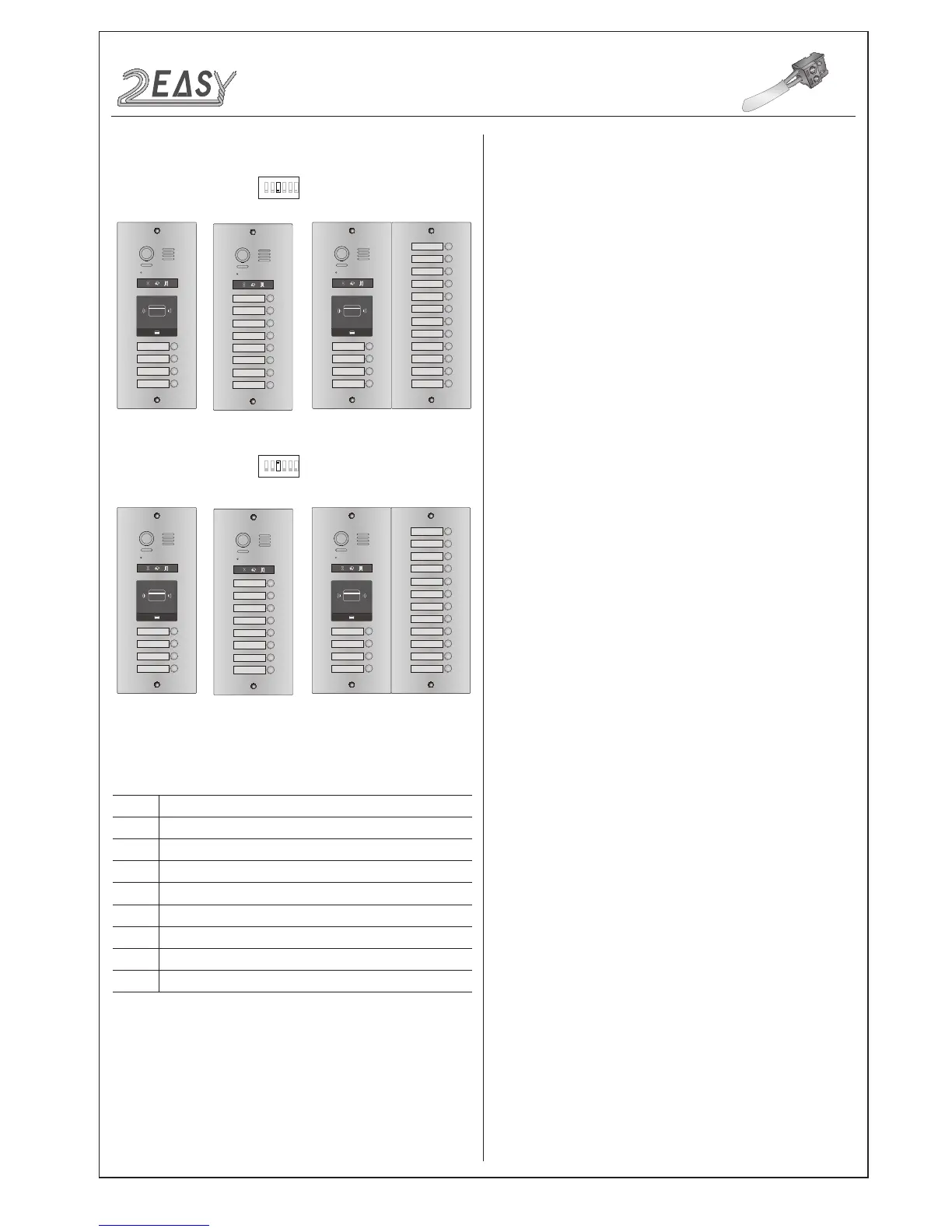

3. Address description
For single row of buttons
• DIP3 switch set Off
• DIP3 switch set to on
1 2 3 4 5 6
ON
RF CARD RF CARD
02
04
06
08
02
04
06
08
02
04
06
08
10
12
14
16
10
12
14
16
18
20
22
24
26
28
30
32
RF CARD RF CARD
01
02
03
04
01
02
03
04
01
02
03
04
05
06
07
08
05
06
07
08
09
10
11
12
13
14
15
16
1 2 3 4 5 6
ON
01
02
03
04
05
06
07
08
NO. Functions
Call apartment 01
Call apartment 02
Call apartment 03
Call apartment 04
Call apartment 05
Call apartment 06
Call apartment 08
Call apartment 07
DMR21 Technical Manual -15-
