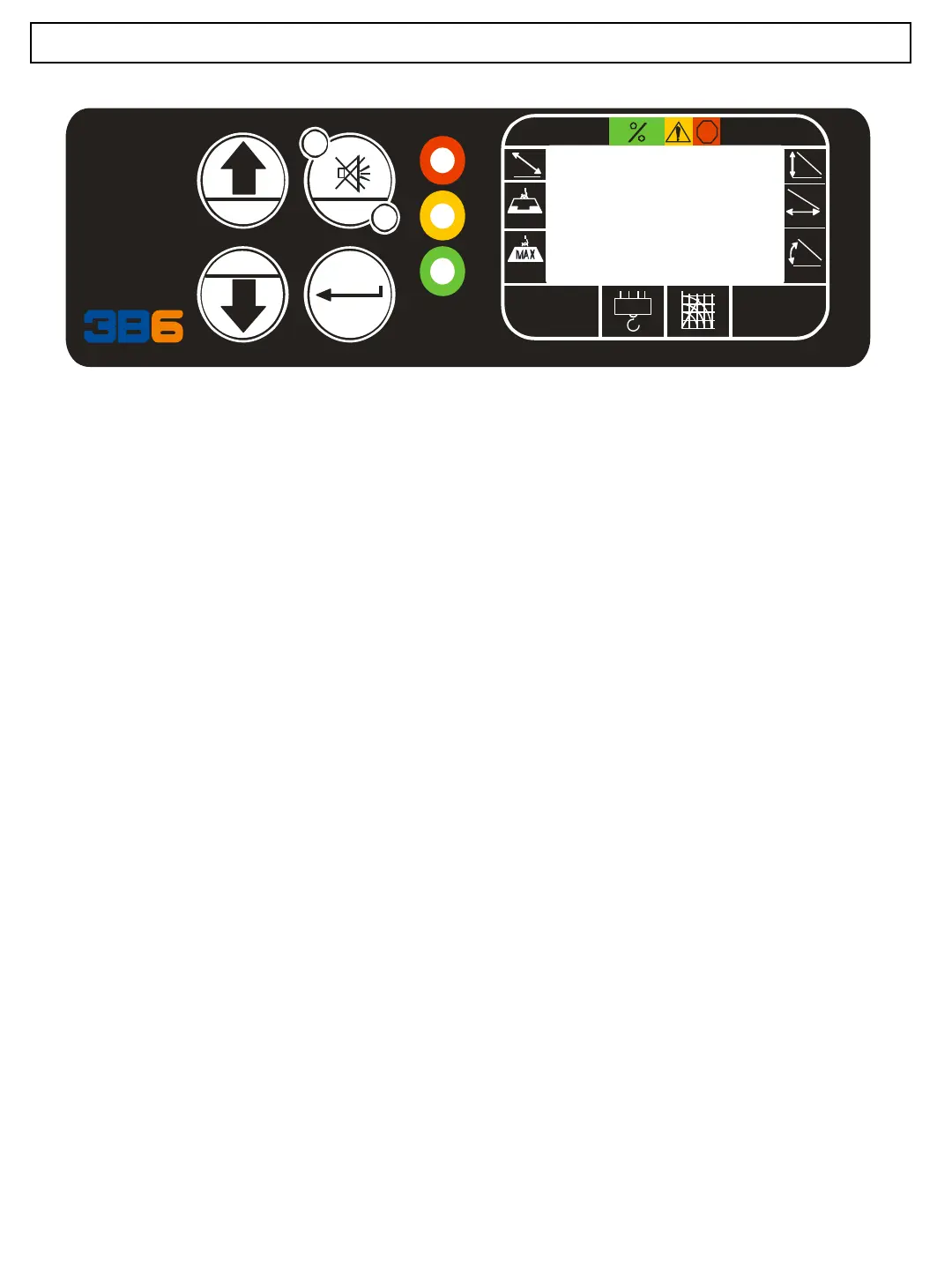

Operating Modes
Program number and Description
0 Main Boom
1 Jib 30 ft 0 degree
2 Jib 30 ft 15 degree
3 Jib 30 ft 30 degree
4 Jib 47 ft 0 degree
5 Jib 47 ft 15 degree
6 Jib 47 ft 30 degree
8 Rigging & Travel
16 Main boom SR (SR is Spin resistant cable)
17 Jib 30ft 0 degree SR
18 Jib 30ft 15 degree SR
19 Jib 30ft 30 degree SR
20 Jib 47ft 0 degree SR
21 Jib 47ft 15 degree SR
22 Jib 47ft 30 degree SR
11
Rigging and Travel Mode
The unit is equipped with a rigging and travel mode, when selected the audible alarm
sounds every 5 seconds to warn the operator the program is selected. This program
enables the (shutoff) lock out valves all the time and it is used for rigging and travel only.
It is not intended to be used to operate the crane for normal operation. The audible alarm
can not be silenced in this mode. If the cylinder is topped and an overload condition is
present, rigging and travel mode is selected in order to over ride and allow the boom to
be lowered. Then select the proper program for operation.
The range limiting feature is disabled with this program and will not stop the rotation in
the event the rotation values and angle of the boom is below the 10 degree range when
swinging towards the outriggers. See page 12.
