AUTO DIAGNOSTIC
Geometrical data

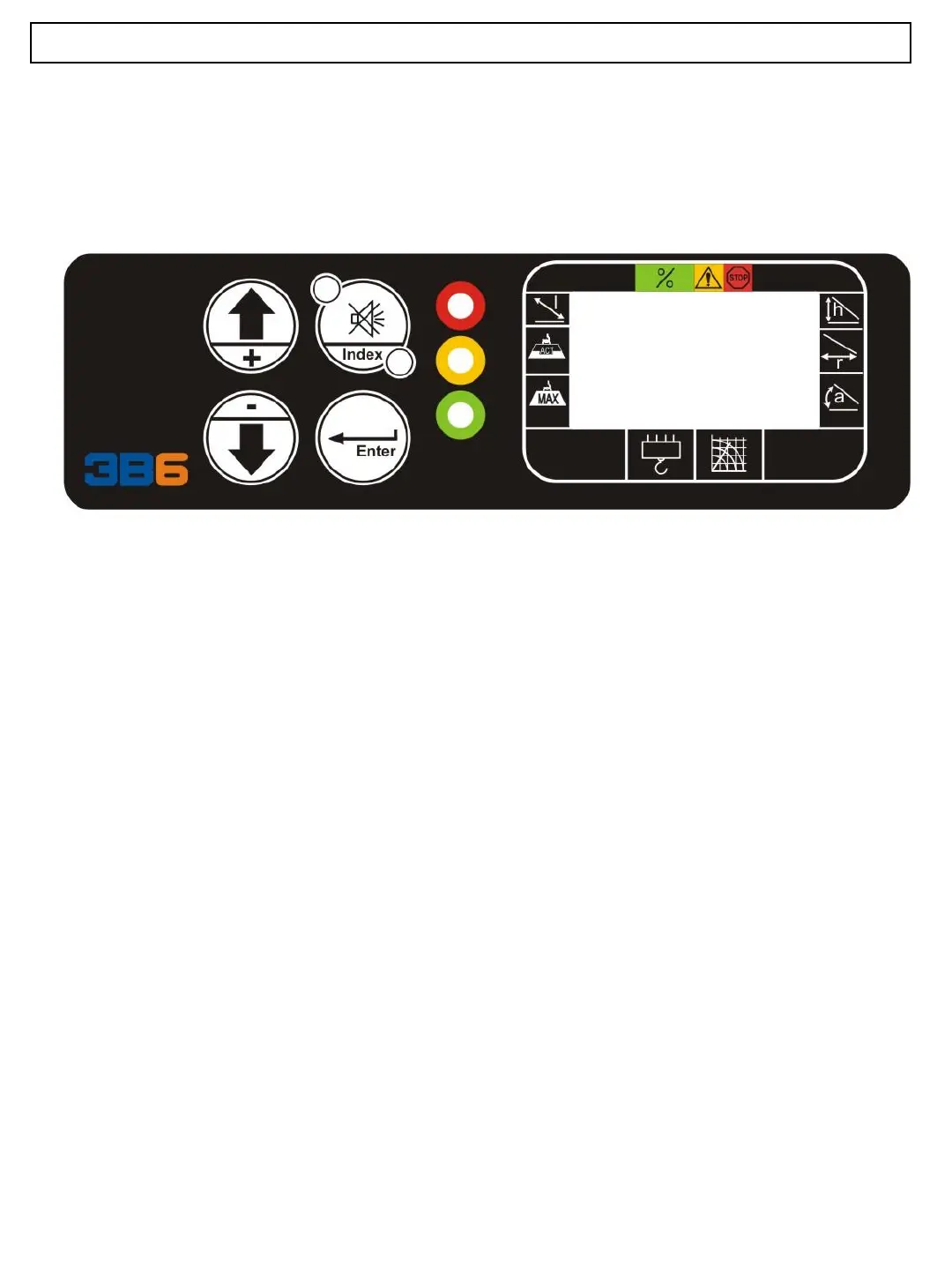

Starting from the LMI screen, press and release the ENTER pushbutton. The display will
change to
3B6 Operator Manual
All pages are displayed for 30 seconds; after which, it returns to the normal working
condition page.
The displayed parameters are as follows:
• P : Main cylinder differential pressure in Bar;
• W : Lifted load weight in Tonnes (Pounds/1000 if Imperial Measurement System is used);
• M : Maximum admitted load in present position in Tonnes (Pounds/1000 if Imperial
Measurement System is used)
• A : Actual angle in Degrees:
• L : Actual boom length in Meters (in Feet if Imperial Measurement System is used );
• R : Radius from turret rotation centre in Meters (in Feet if Imperial Measurement System is
used)
If you continue to press and release the ENTER pushbutton the
following diagnostics page are displayed.
P100 W 5.0 M 5.0
A 60 L20.3 R15.1
PO2
