AUTO DIAGNOSTIC

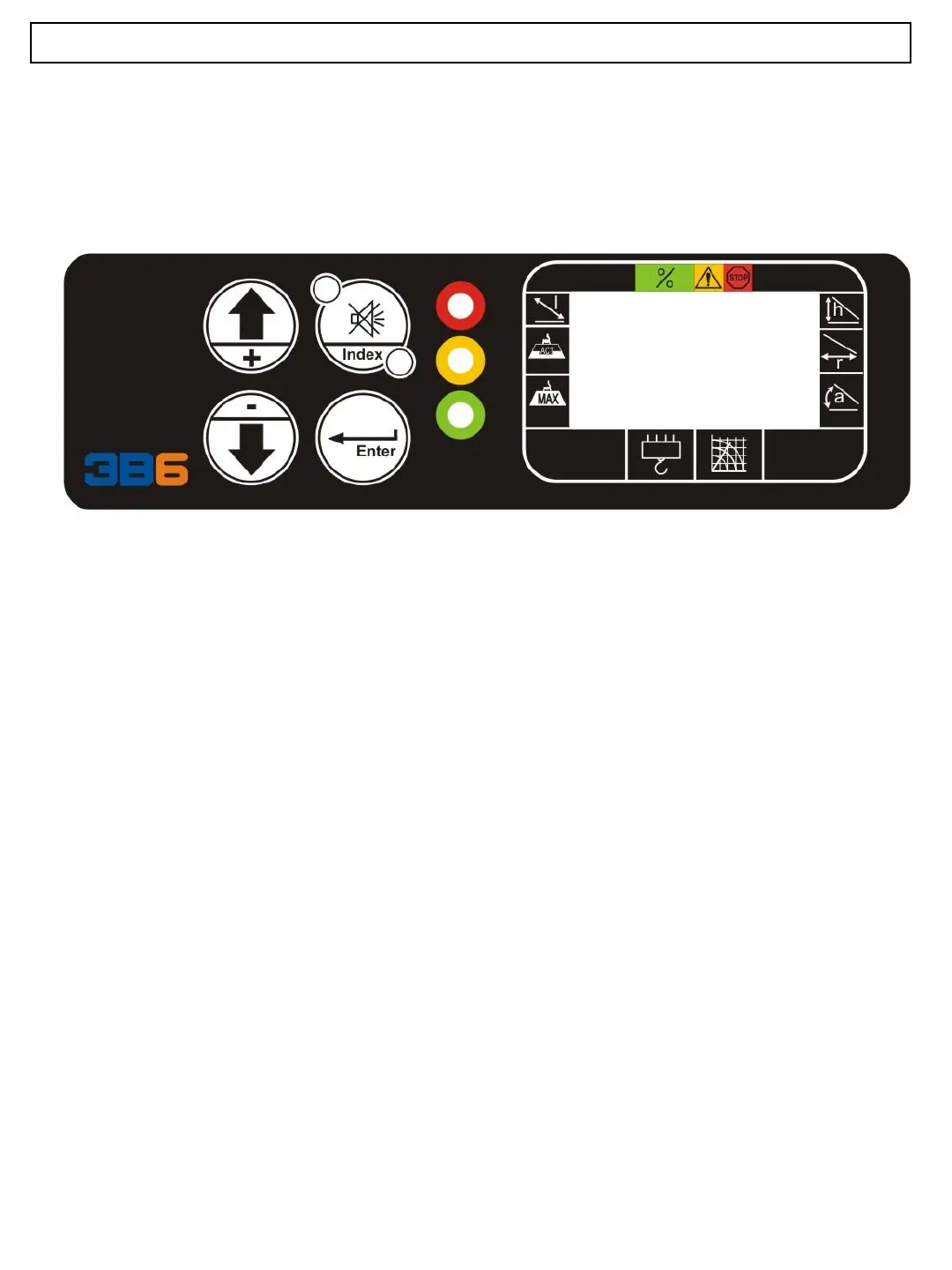

Hydraulic data
3B6 Operator Manual
The displayed parameters are as follows:
Upper row:
• P : Main cylinder differential pressure in Bar;
• L : Main cylinder piston side pressure in Bar;
• H : Main cylinder rod side pressure in Bar;
Lower row:
• p : Compensation cylinder differential pressure in Bar;
• l : Compensation cylinder bottom side pressure in Bar;
• h :Compensation cylinder rod side pressure in Bar;
P100 L: 50 H: 40
p 0 l: 0 h: 0
PO3
