Virtual wall feature (ISAAC)

(Activate)

3B6 Operator Manual

The system is equipped with a virtual wall feature ,which allows the operator to set the

angle, radius or height limits. This is performed by putting the boom in that position and

then selecting the function and confirming. These features are audible and visual

warning only. See below for setting.

To activate the feature press and hold the INDEX pushbutton for 3 seconds the display

will indicate ;

71 Angle set; position the boom at the proper angle to set and press and release the

ENTER pushbutton to activate that setting, then press and release the INDEX

pushbutton to confirm or press and release the UP arrow pushbutton to activate the;

72 Radius set; position the boom at the proper radius to set and press and release the

ENTER pushbutton to activate that setting, then press and release the INDEX

pushbutton to confirm or press and release the UP arrow pushbutton to activate the;

73 Height set position the boom at the proper height to set and press and release the

ENTER pushbutton to activate that setting, then press and release the INDEX

pushbutton to confirm or press and release the UP arrow pushbutton to activate the;

76 Rot. Max Set position the boom at the min (left side) rotation angle to set and press

and release the ENTER pushbutton, then press and release the INDEX to confirm or

press and release the UP pushbutton to activate the;

77 Rot. Min Set position the boom at the (right side) max rotation angle to set and press

and release the ENTER pushbutton, then press and release the INDEX to confirm or

press and release the UP pushbutton to scroll to the next setting.

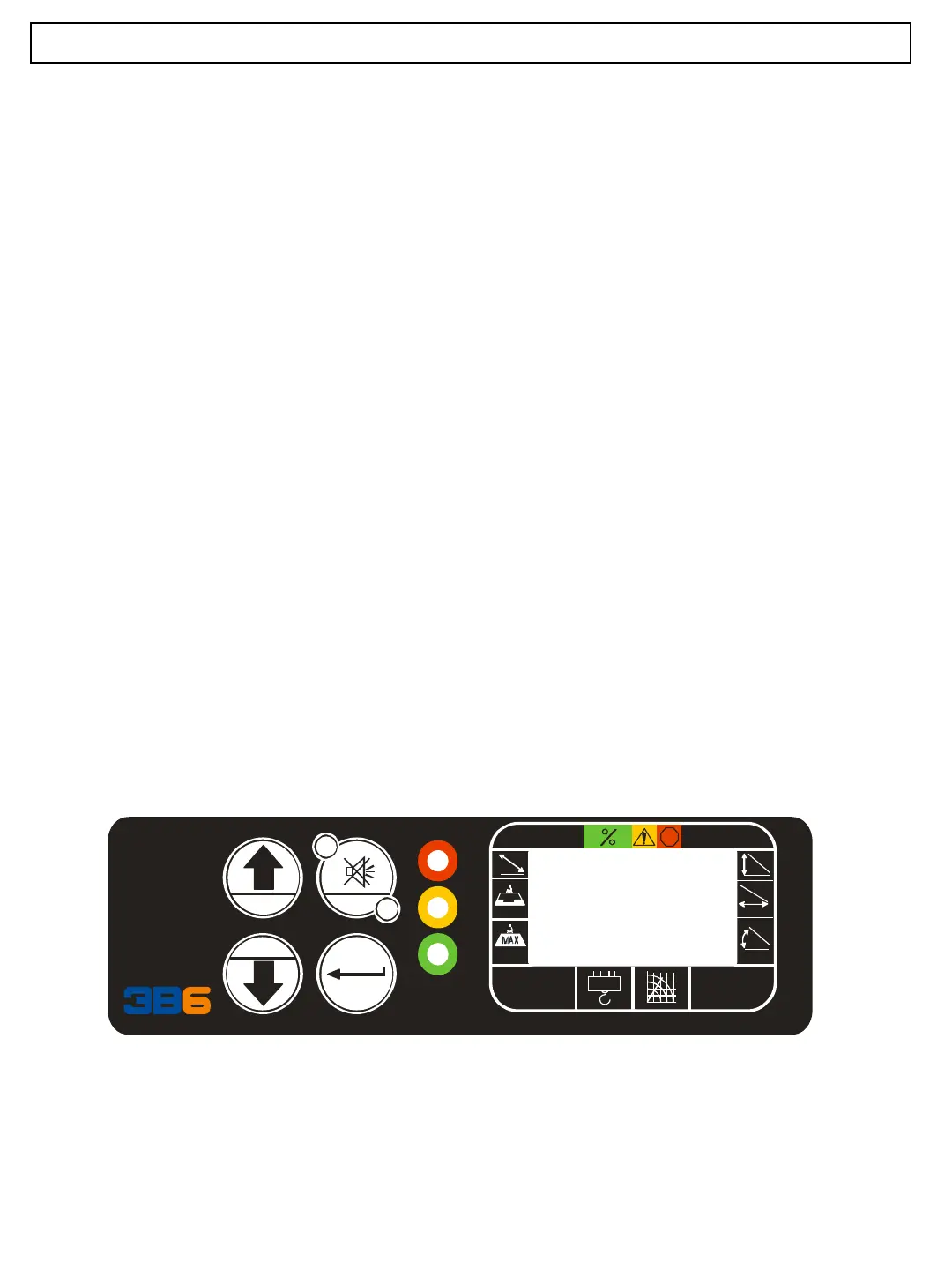

Enter

ACT

STOP

Index

71 Angle Set

ACTIVE WARNING CODES

Warning 11 indicates Angle preset has been exceeded

Warning 12 indicates Radius preset has been exceeded

Warning 13 indicates Height preset has been exceeded

Warning 15 indicates Rot Min preset has been exceeded

Warning 16 indicates Rot Max preset has been exceeded

To exit this feature press and release the INDEX pushbutton to return to the LMI

working screen
