22

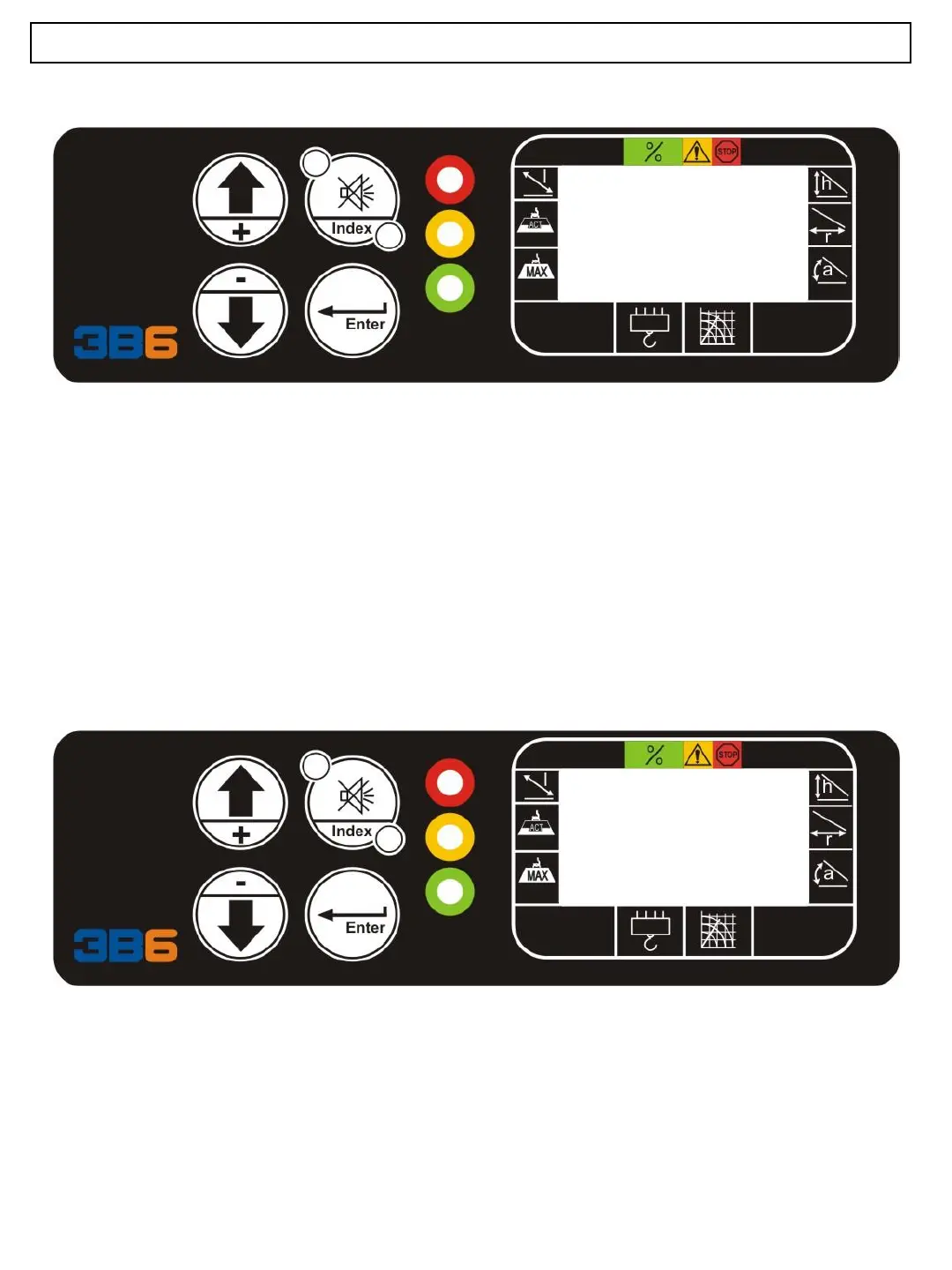

AUTO DIAGNOSTIC
Angle and Length Data
3B6 Operator Manual
A 45.1 45.0 0.1
L 15 15.2 0.2
The displayed parameters are as follows:
Upper row:
• A : Angle1 value ;
• Angle 2 (N/A)
• Difference between angle1 value and angle2 value;
Lower row:
• L : Extension1 value;
• Extension2 value (N/A)
• Difference between extension1 value and extension2 value;
A 45.1 45.0 0.1
L 15 15.2 0.2
PO4
AUTO DIAGNOSTIC
Status of Digital inputs
0 XXXX 1 XXXX
2 XXXX 3 XXXX
PO5
The displayed parameters are as follows:
• 0 XXXX : Main cylinder bottom side pressure value in Bits; between 0 and 1023 (*)
• 1 XXXX : Main cylinder rod side pressure value in Bits; between 0 and 1023 (*)
• 2 XXXX : Angle value in Bits; between 0 and 1023 (*)
• 3 XXXX : Boom Length value in Bits; between 0 and 1023 (*)
(*) = Due to 10bits A/D Converter
