AUTO DIAGNOSTIC
Analog Sensor Signals

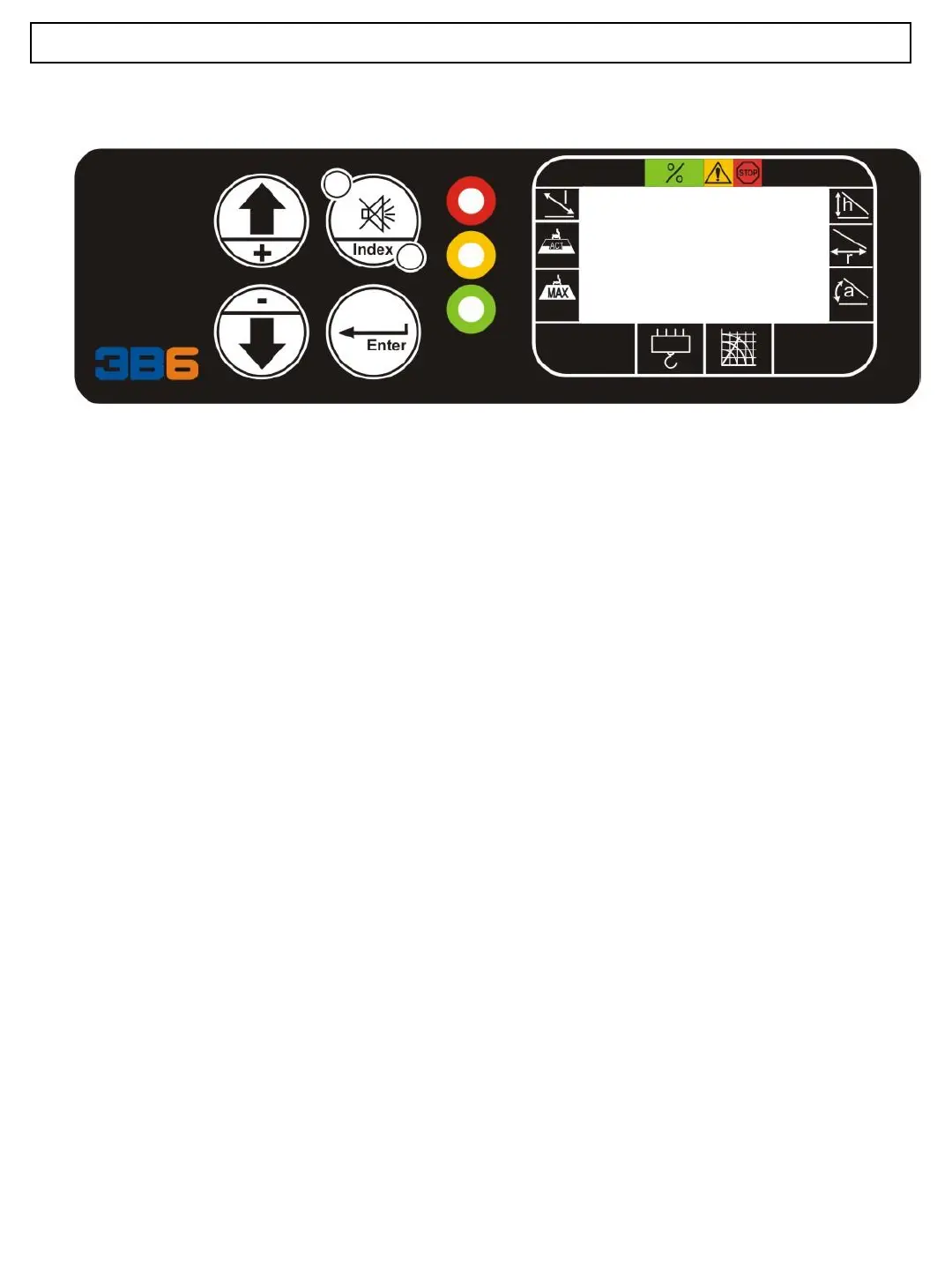

3B6 Operator Manual
The displayed parameters are as follows:
• 4 XXXX : Main cylinder piston side pressure value in Bits; between 0 and 1023 (*)
• 5 XXXX : Main cylinder rod side pressure value in Bits; between 0 and 1023 (*)
• 6 XXXX : Angle value in Bits; between 0 and 1023 (*)
• 7 XXXX : Boom Length value in Bits; between 0 and 1023 (*)
4 XXXX 5 XXXX
6 XXXX 7 XXXX
PO6
