Dynamic Weighing Mode
The system is based on the measurement of the lift cylinder piston pressure (by means
of the pressure transducer) and the calculation of the raise speed (with proximity
switches or inclinometer).
To perform the weighing completely close the bucket, raise the arm keeping the engine
Rpm’s constant and the the lift lever full open and wait for the unit to give the audible
signal, which signals when the system is performing the weighing.
It is important during this audible signal not to alter the conditions of machine: the
upward movement must remain constant and the Rpm’s. The machine must work level
and should be subjected to as few movements as possible.
When the audible signal is finished the central unit display will read:
For correct weighing the following must be respected.
• The bucket must be completely closed
• During the audible signal keep the Rpm’s at and raise lever fully open.
• During the weighing the machine must be as level as possible.
Note: Unit of measurement
•mTon = Metric ton (2204 lbs or 1000 kg)
•LBS = pounds (0.45359 kg)
•iTon = Imperial/Long ton (2240 lbs or 1016 kg)
•sTon = Short ton (2000 lbs or 907.18 kg)
•KG = kilogram (2.204 lbs)

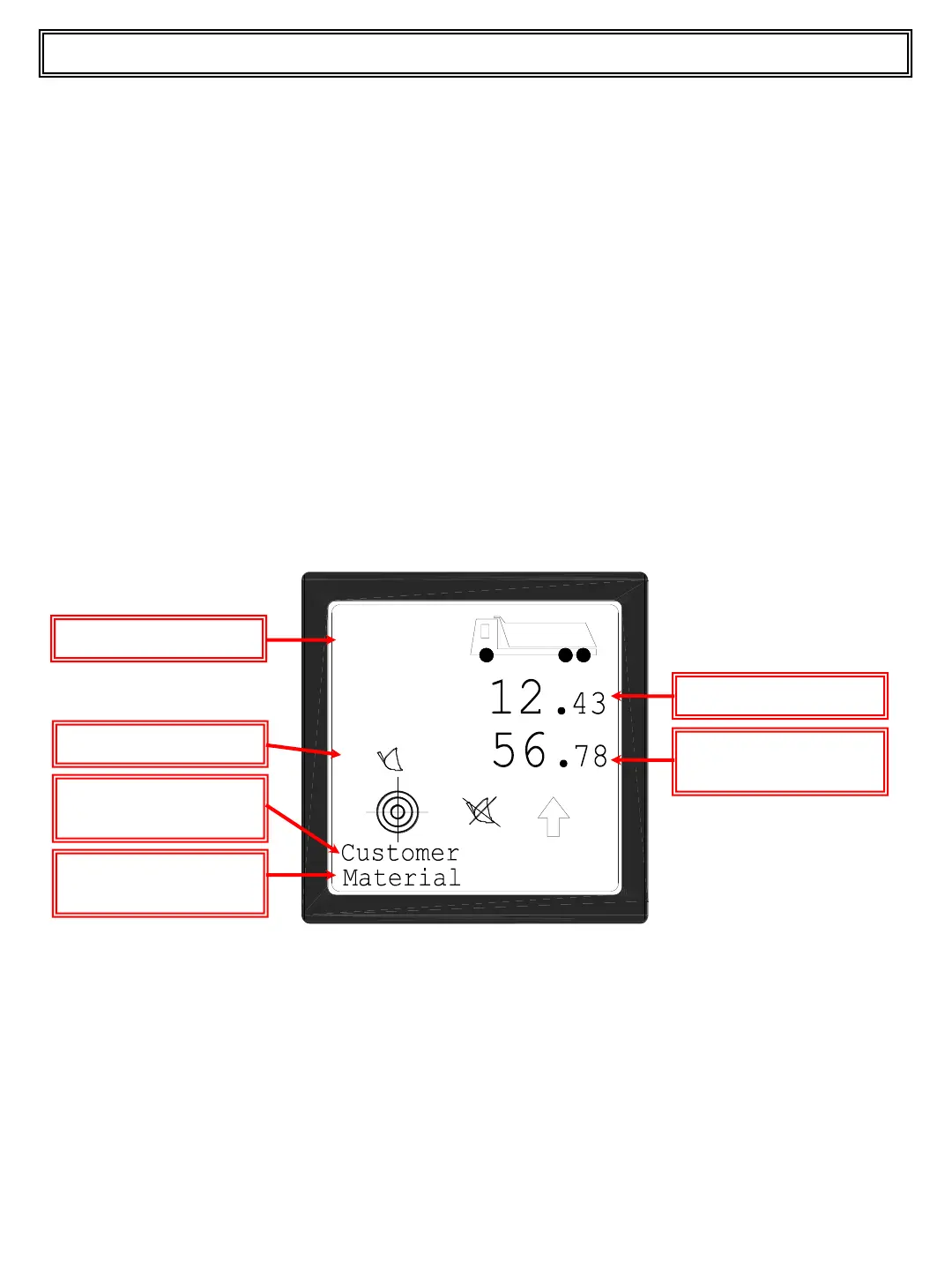

Total weight
Weight of the
single Load
Unit of measurement
Number of weighing
Customer Code No.
or name
Material Code No.
or name
8
Top Master User Manual
To Next Page
