126 CHAPTER 6: USING RF PLANNING
To create RF obstacles for all objects in a layer:
1 The Organizer panel is displayed on the left. Expand Sites, right-click on a
building, and select Edit.

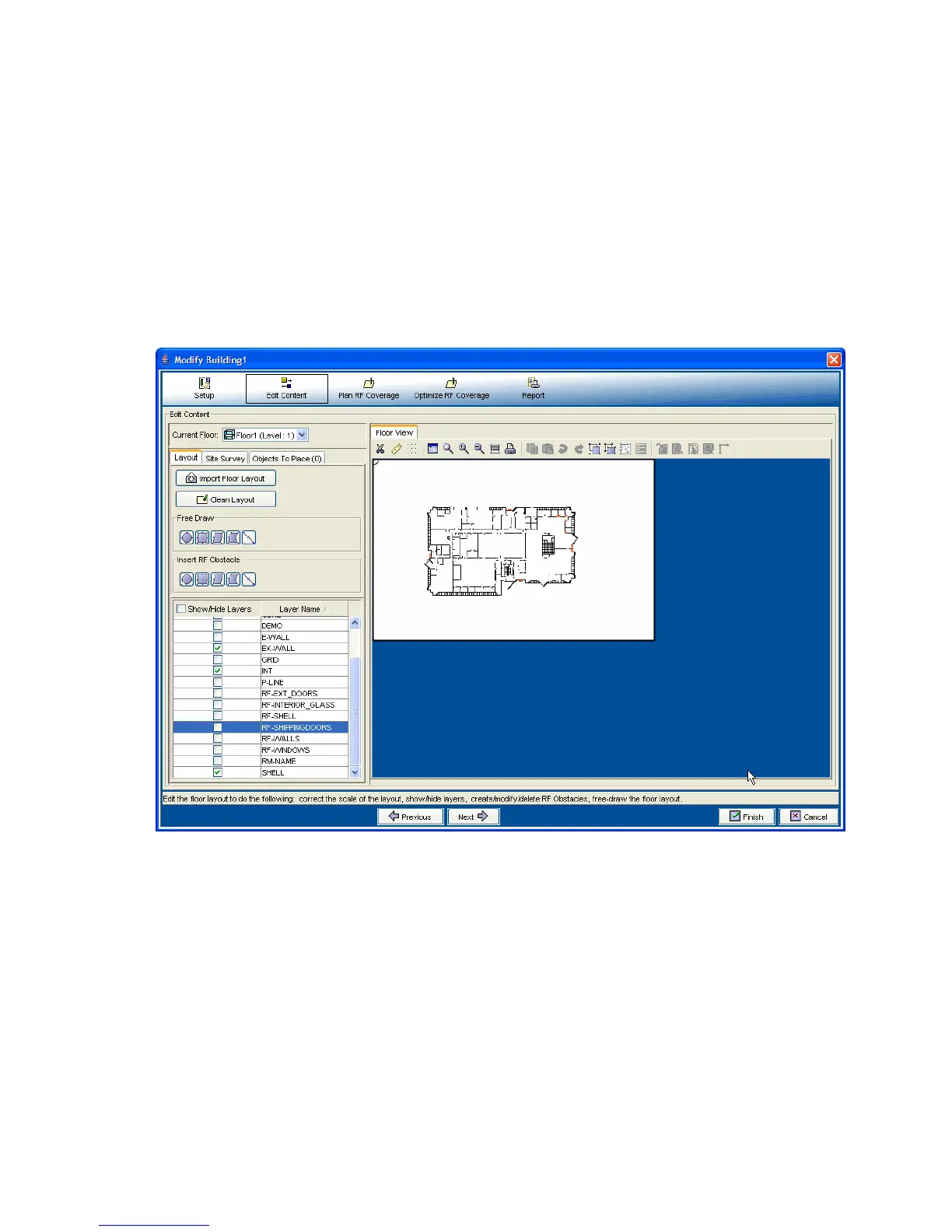

The Modify Building wizard is displayed.
2 Select the Edit Content tab.
3 Right-click on a layer and select Create RF Obstacle. Mouse over to the
floor plan and draw the shape approximately.
4 Define the RF obstacle.
5 Click Finish.
The layer’s objects are now obstacles in your floor plan.
