140 CHAPTER 6: USING RF PLANNING
Data Rate—Coverage is shown in colored bands that represent each
of the data transmit rates supported by the radio. These rates are
standard for each radio type.
RSSI—Coverage is shown based on the received signal strength
indication (RSSI) of the radio’s signal heard by other radios.

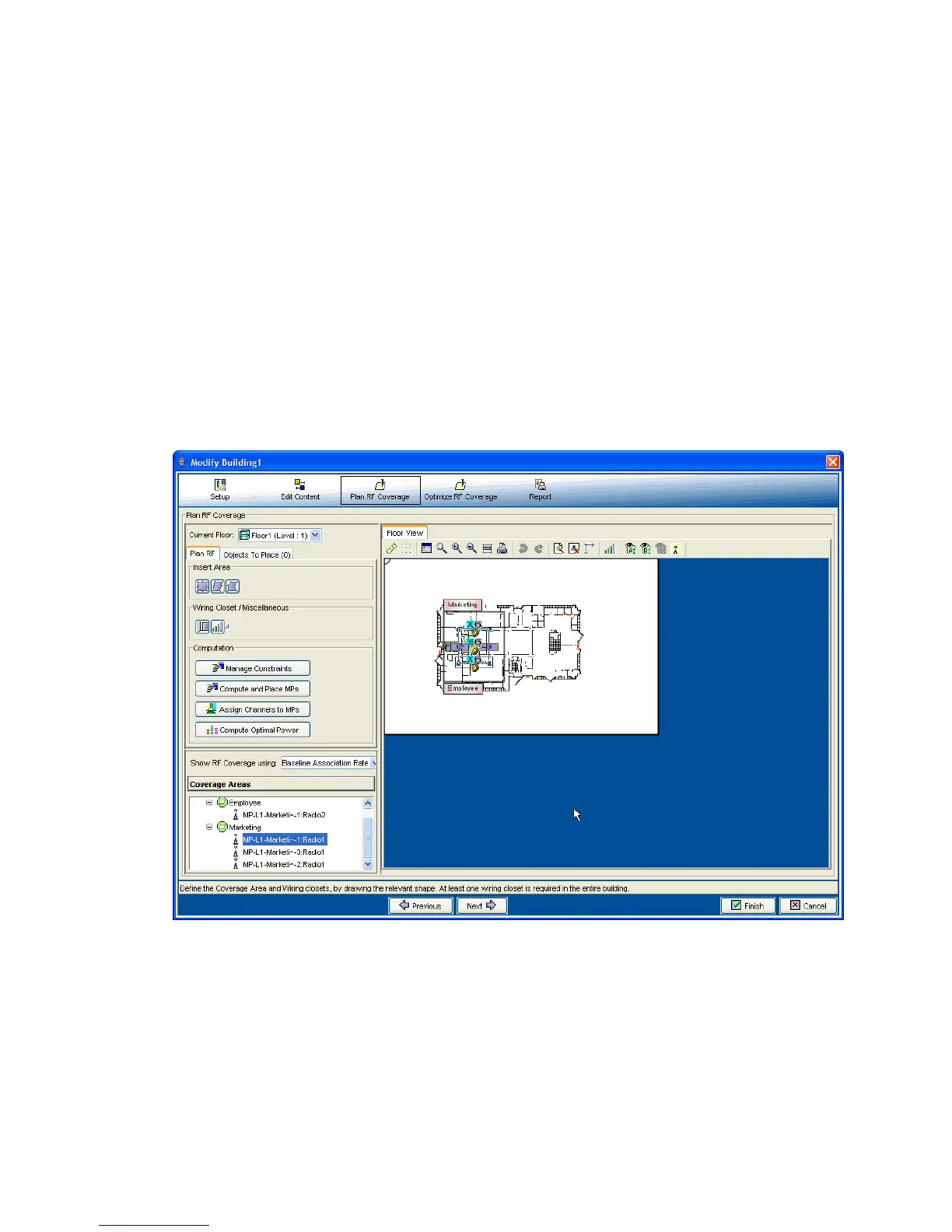

2 Right-click on a coverage area and select Show RF Coverage.
3 Select the A, B, or G icon from the Floor View toolbar to view the
coverage area for that technology.
The coverage area is displayed, color-coded by channel.
If the coverage area provided by an MAP on the floor above or below is
one meter or less, 3WXM displays a message. This coverage area is not
displayed on the floor plan.
