3D Systems CubePro - Page 11

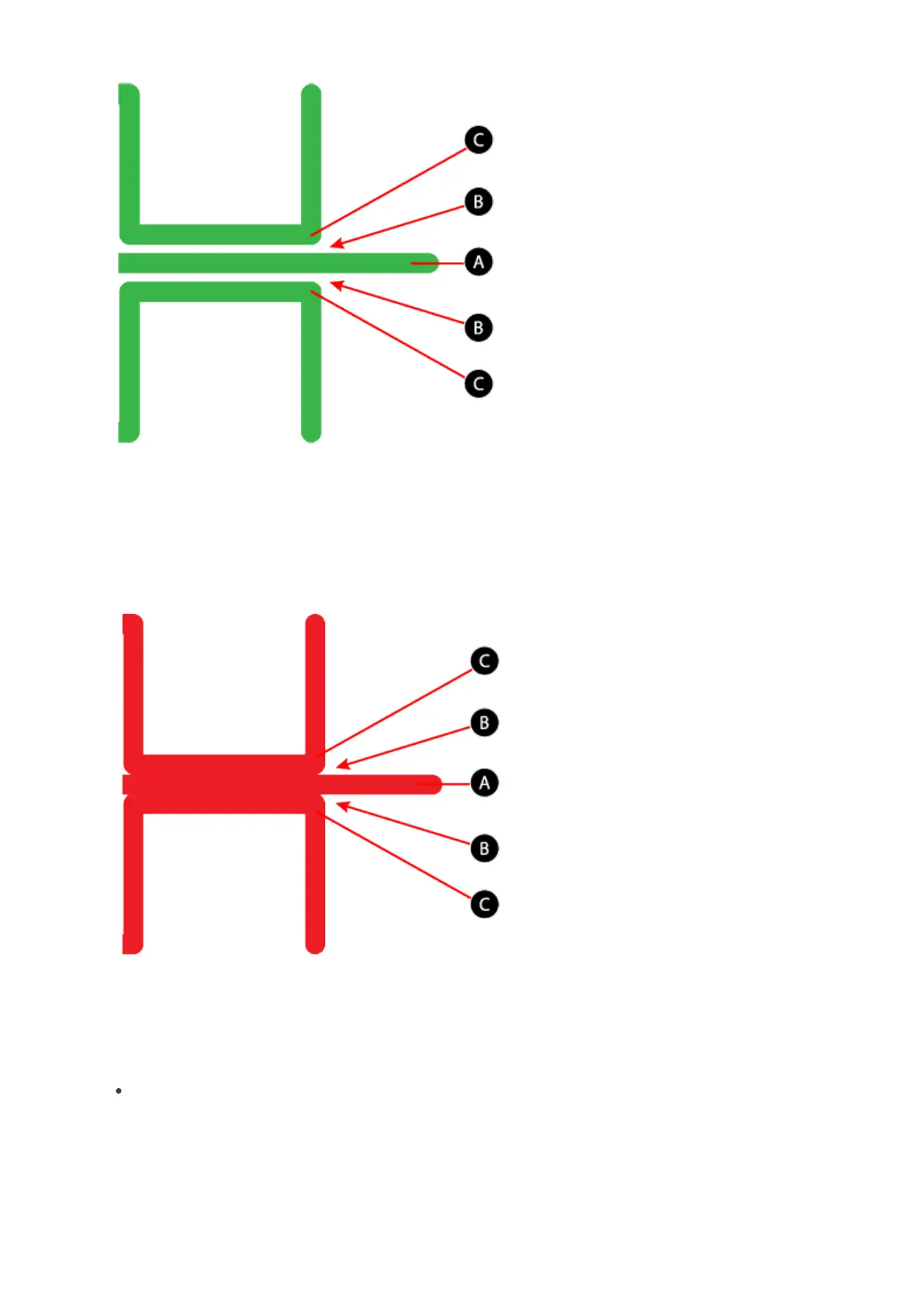

Incorrect Open Z-Gap
If there is no gap (B) between the Open Z-Gap bars (C) and the baseline (A), that print jet is
too low and should be adjusted. Once it has been adjusted, print the calibration file again to
verify that the print jets are level.
Leveling The Print Jet Nozzles
Tools Needed
T10 Torx Driver
Level The Print Jets
