ProJet
®
x60 Series User Guide Troubleshooting the ProJet x60 Printers
3dscentral.3dsystems.com 53 All Rights Reserved
5/12/13
7.4.1 Troubleshoot Fast Axis

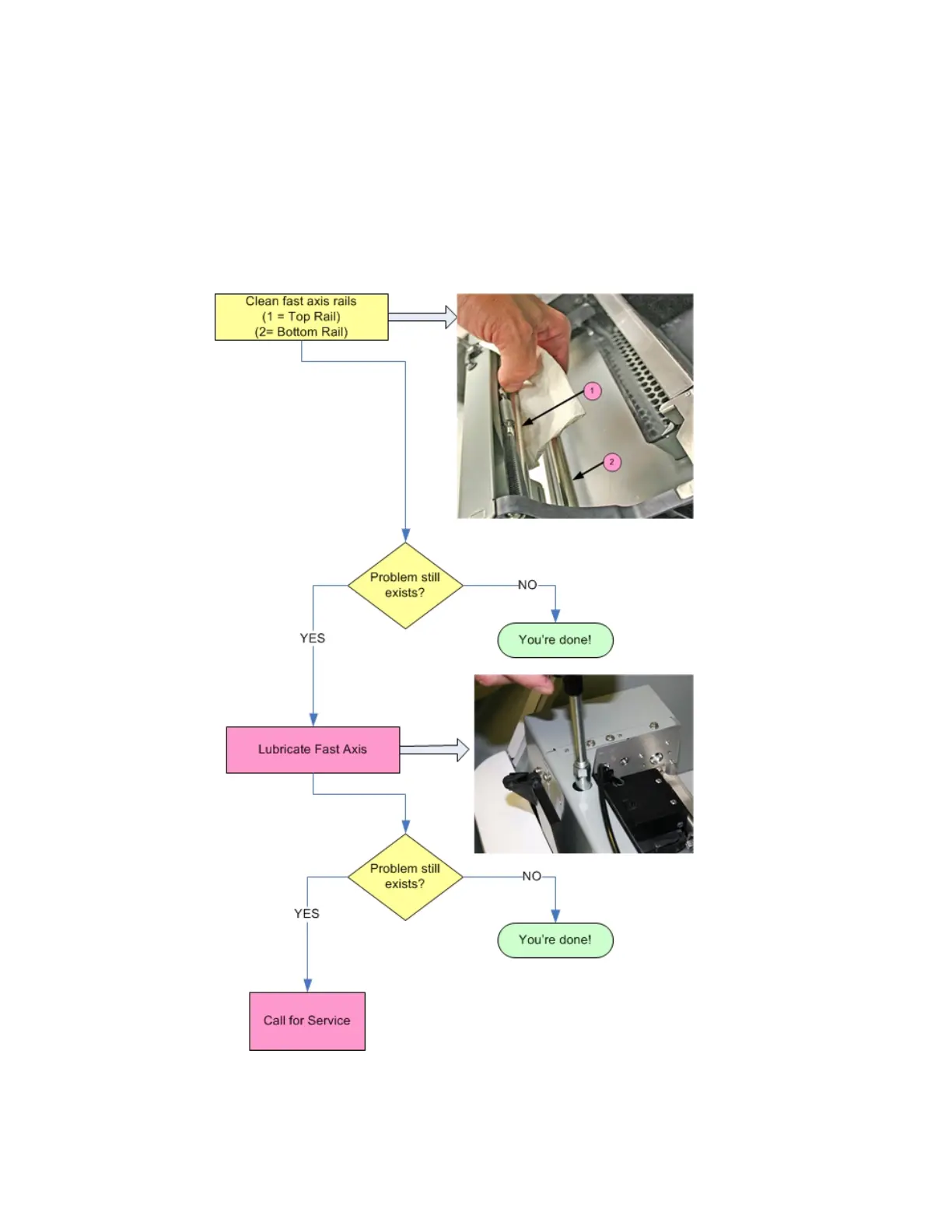

If your printer is reporting Fast Axis errors, follow the flowchart below.
How to do it
To perform the cleaning and lubrication called for in the flowchart, see:
• Section 3.3, ’Clean The Fast Axis Rails and Carriage’
• Section 6.2, ’Fast Axis Bearing Lubrication’
To Next Page
