9/92
2-5
MODEL 2100 OVERHEAD PROJECTOR
LUBRICATION
As needed and upon new parts installation,
lubricate lightly the following area with
Anderol No. 757 Grease (3M Part No. 78-
8000-8079-4).

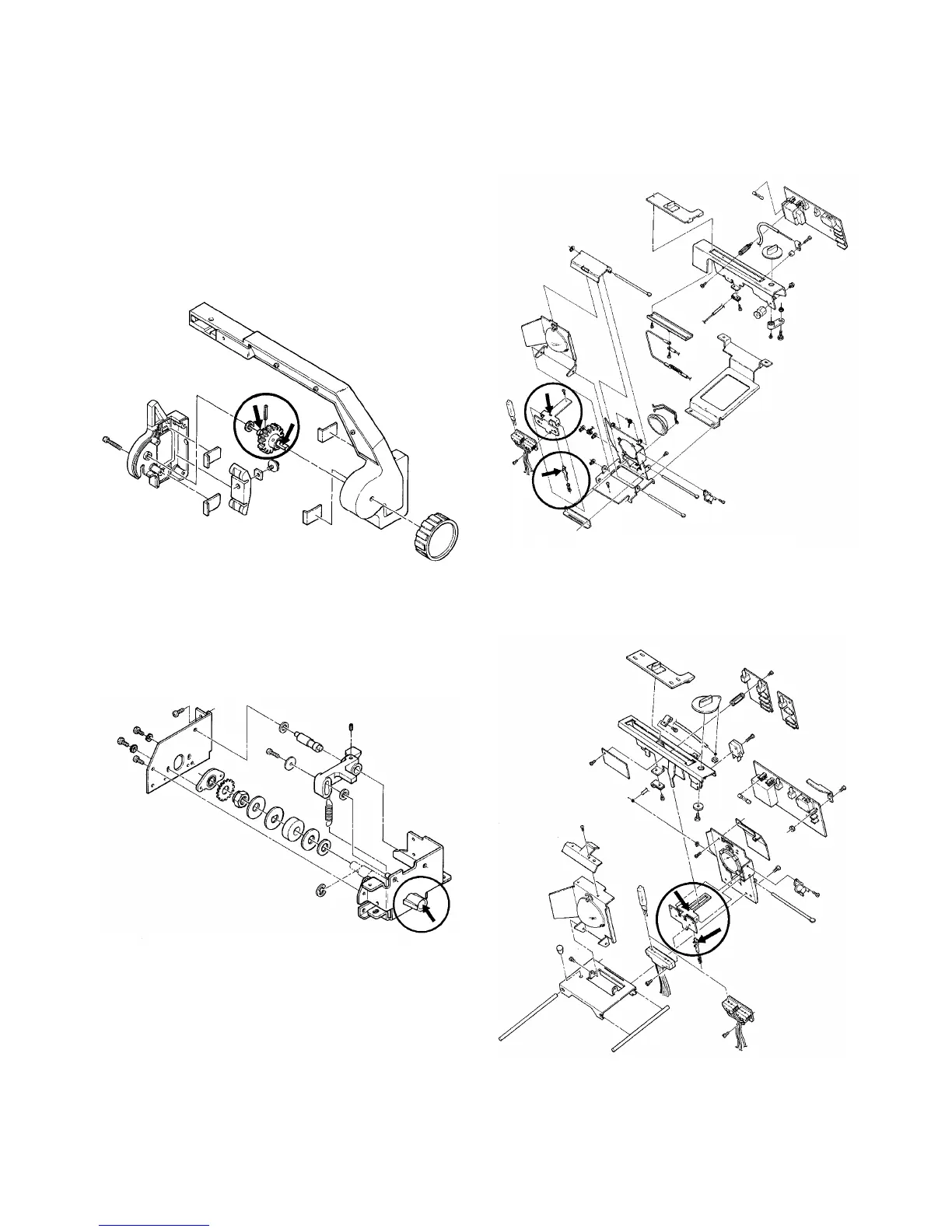

For reference on the lubricating points, see
the three blow-up parts lists.
Folding Post Assembly
Lamp Changer Assembly
Before S/N 439180
Lamp Changer Assembly
After S/N 439180
Focus Assembly
