MODEL 2100 OVERHEAD PROJECTOR
This service manual contains servicing instruction, troubleshooting guide,
adjustments, electrical diagrams, assembly/dis-assembly of parts and the
illustrated parts list.

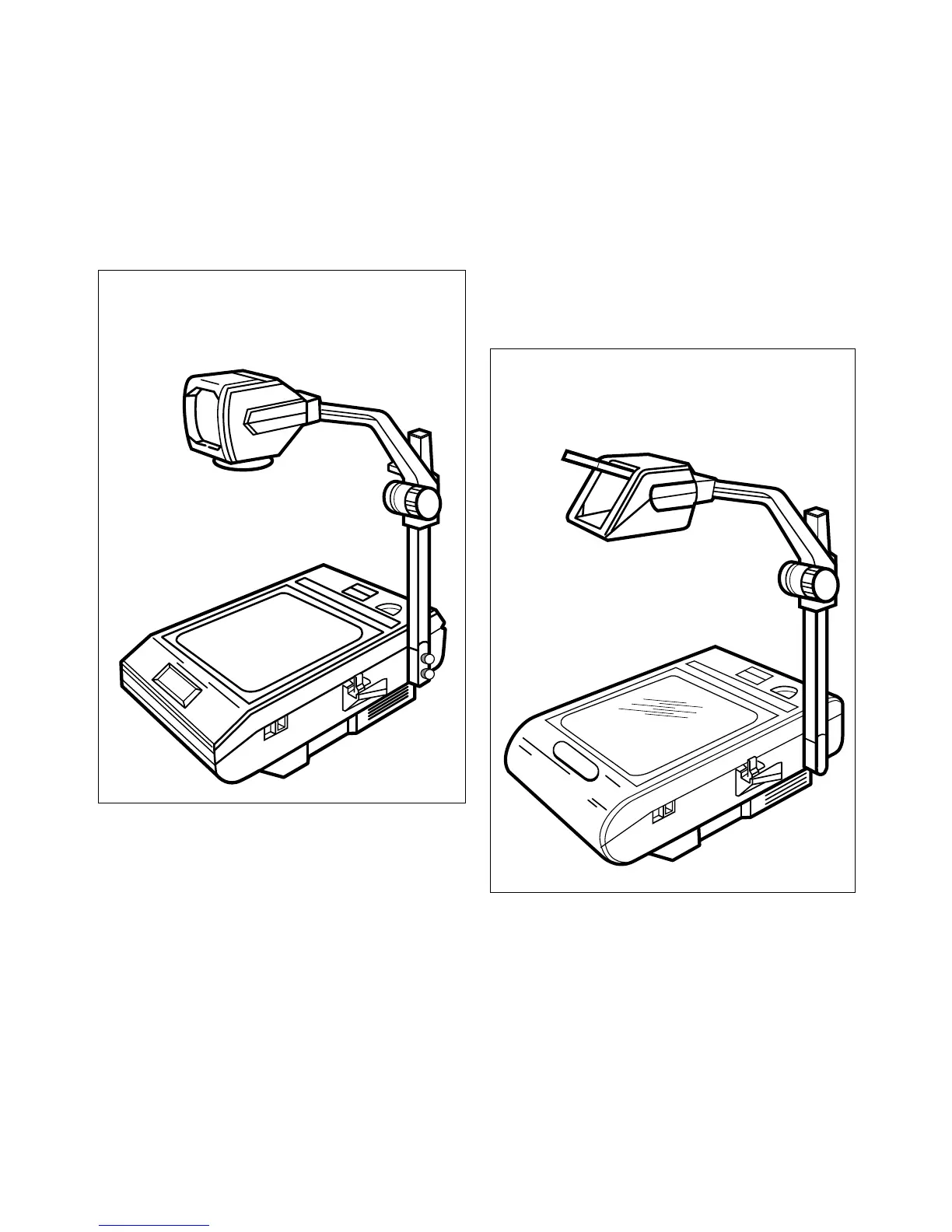

ANGULAR BODY
(2130/4130, 2140/4140, 2160, 2170)
ROUND BODY
(2150/4150, 2180)
SPECIFICATIONS
Physical
Width - 15.25" (387mm)
Depth - 20.25" (514mm) (Post in upright position)
- 26.25" (667mm) (Post in folded position)
Height - 7.75" (197mm) (Body)
- 30.75" (781mm) (Maximum, top of head)
Weight - 22 lbs. (10.0 Kg) 2180
- 25 lbs. (11.3 Kg) 2130, 2140, 2150, 2160, 2170, 4130, 4140, 4150
1-1
SECTION 1 INTRODUCTION
