NA - ENG
April 2016
3M-Matic
™
8000a-8000a3
Page 33
6. Install the new belt around drive
rollers and insert new pin.
Pin must not extend beyond
edge of belt.
7. To set drive belt tension, turn
adjustment screws (G) equally
on both the upper and lower
tension assemblies. Turn the
screws clockwise to increase
tension or counterclockwise to
decrease tension -
See Figure 13-2.
Use a force gauge to pull the belt
outward 25mm [1 inch] at mid span,
as shown with a moderate pulling
force of 3.5 kg [7 lbs].
8. Reverse procedures in Steps 1-3
(Figure 13-1) to reassemble the
drive belt assembly.

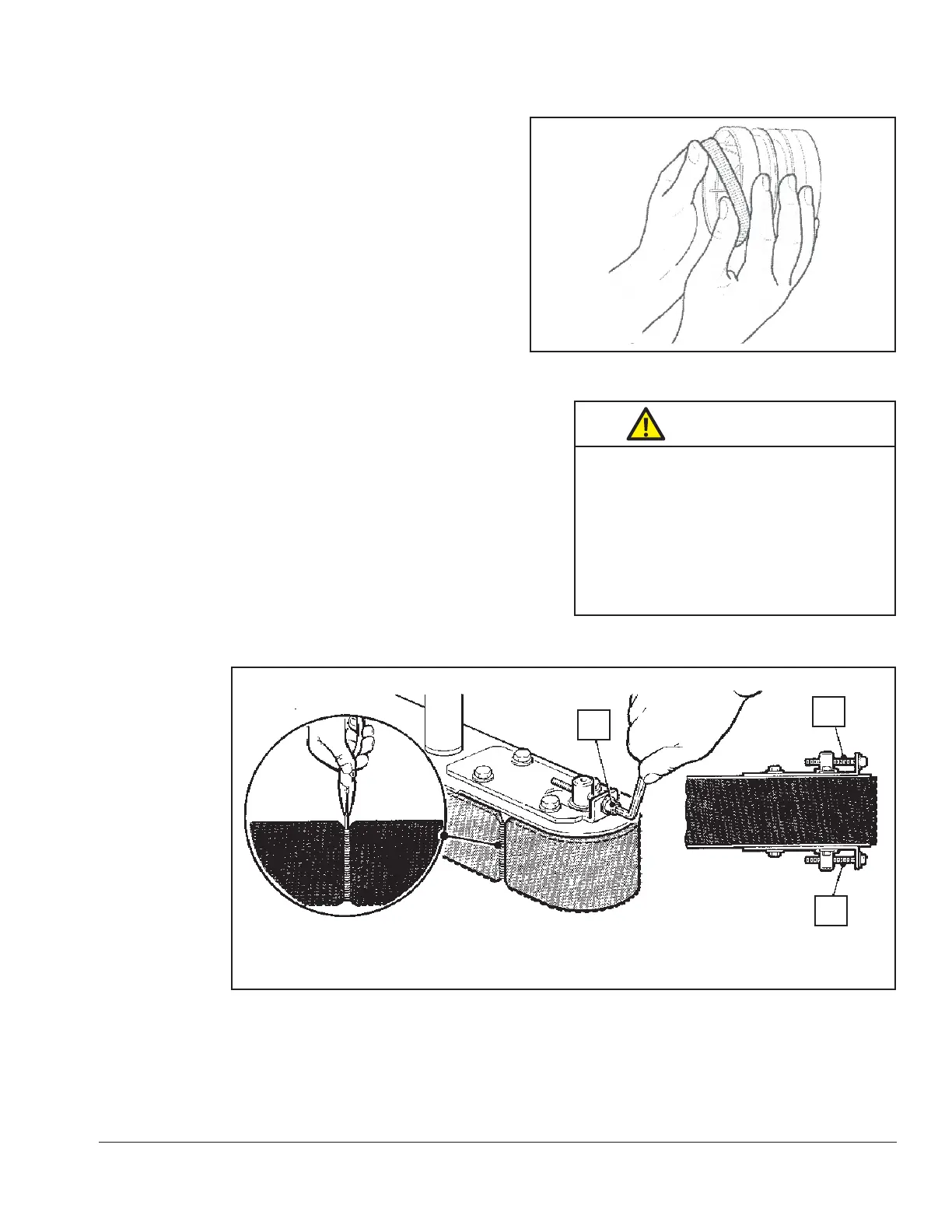

13.9 Box Drive Pulley Rings
Before installing a new belt,
check the orange plastic drive
pulley rings for wear. If torn,
broken, or worn smooth, replace
the rings (Figure 13-3).
Figure 13-3
13. Maintenance and Repairs (continued)
Figure 13-2 Box Drive Assembly (Infeed End)
G
G
G
• To reduce the risk associated with
pinches, entanglement and hazardous
voltage:
- Turn electrical supply o and disconnect
before performing any adjustments,
maintenance or servicing the
machine or taping heads.
WARNING
To Next Page
