10

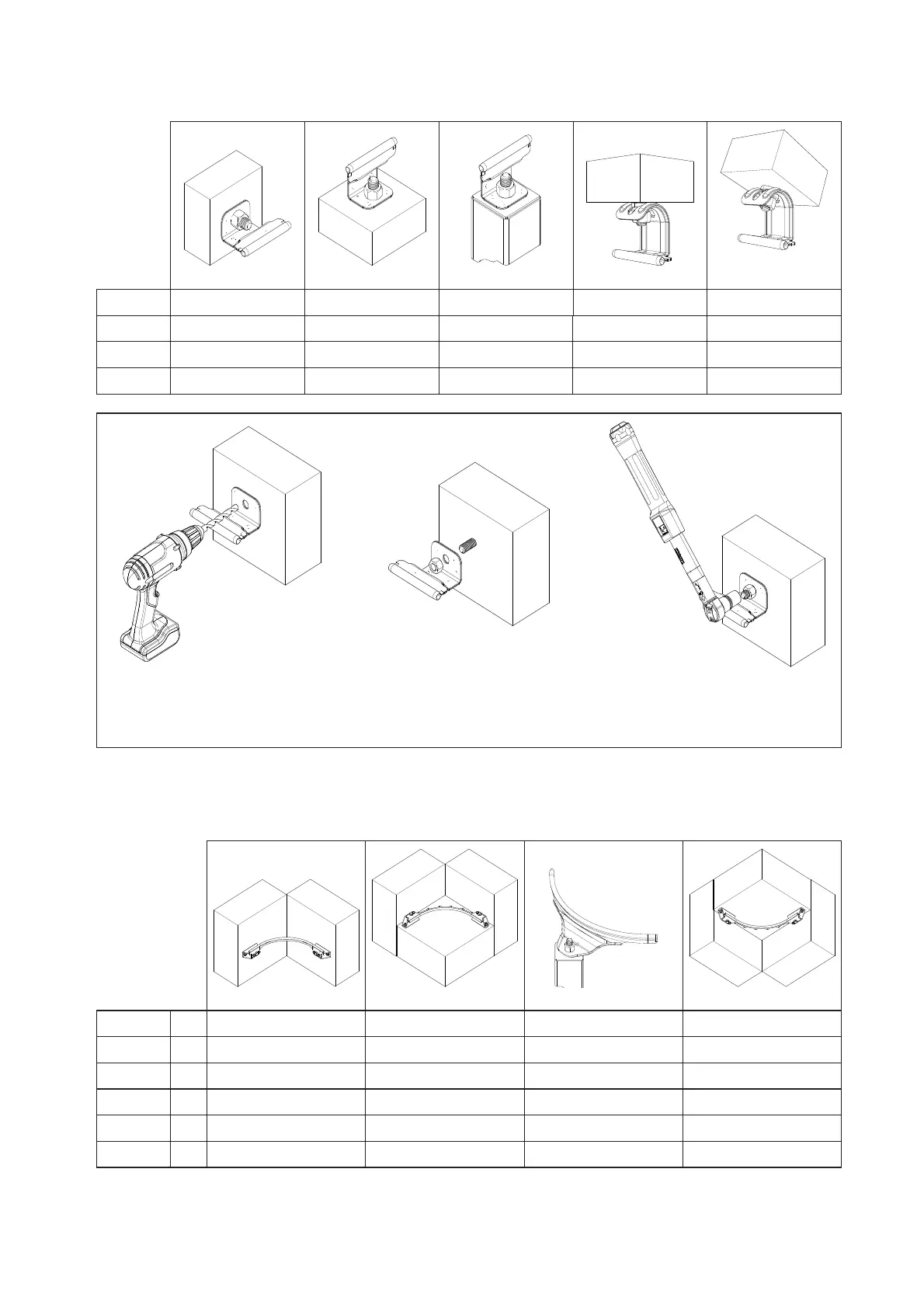

3.2 INTERMEDIATE BRACKETS: Minimum Grade A4-70 M12 ( or 1/2 in) Fasteners should be used to mount Intermediate
Brackets to structure at a recommended torque of 50 Nm (37 ft-lbf). Mounting must support a bracket load of 24 kN
(5,400 lbf) perpendicular to the lifeline. Mounting orientations and installation are as follows:
Wall Mount Floor Mount Post Mount Overhead Mount
Overhead Mount
(pitched)
7241412
√√√
7241413
√√√
7241414
√√√ √ √
7241415
√√√
1. Mark and drill a mounting hole to
the depth and diameter specifi ed
in the fastener manufacturer’s
documentation.
2. Secure the End Anchor Bracket
to structure as recommended
in the fastener manufacturer’s
documentation.
3. Torque fastener to manufacturer’s
specifi cation or recommended 50
Nm (37 ft-lbf)..
3.3 CORNER BRACKETS: Minimum Grade A4-70 M12 (or 1/2 in)Fasteners should be used to mount Corner Bracket to
structure at a recommended torque of 50 Nm (44 ft-lbf). Mounting must support bracket load of 38 kN (8,550 lbf) in the
plane of the lifeline and a load of 24 kN (5400 lbf) perpendicular to the lifeline. 45° and 90° Corner Brackets are available
for internal or external corners on 0.8 kN or 5 kN tensioned systems:
Internal
Corner Brackets
Wall Mount Floor Mount Post Mount Overhead Mount
7241406 90°
√√ √
7241408 90°
√√
7241409 45°
√√ √
7241411 45°
√√
7241526 90°
√
7241570 45°
√
To Next Page
