Aerial Faults (Toning)
Transmitter Setup
Connect the transmitter (based on type of fault) as described in
Connection Diagrams in the following section.
Press and hold [T-1] to perform a battery test.
Press OHMS/FAULT/TONE [T-2] to turn the Transmitter on and to
verify the fault.
Press OHMS/FAULT/TONE [T-2] twice more to select the Tone mode.
The display [T-4] will alternately flash between 577 and 200K.
Press OUTPUT [T-5] for high output level.
Receiver Setup
Press ON/OFF [1] to turn the Receiver on.
Press Locate [5]
Press Tone/Ext [SK] to select Tone mode.
Press Freq [SK Toggle] to select 577Hz.
Connect a toning coil to the receiver EXTERNAL JACK [13].
Move the toning coil along the cable and find a peak signal then press
Gain/Down [4] to adjust the receiver gain.
Press SPEAKER [2] to adjust the speaker volume as needed.
Follow the cable with the toning coil.
* When the receiver detects a short, cross, or ground fault (Connection
Diagrams #1, #2, or #3), the audio and signal strength will stop or drop
off sharply.
* When the receiver detects a split (connection #4) the audio and signal
strength will increase significantly.
* When verifying a split (connection #5) the audio and signal strength
will decrease after the toning coil has passed the split.
Connection Diagrams:
Short:

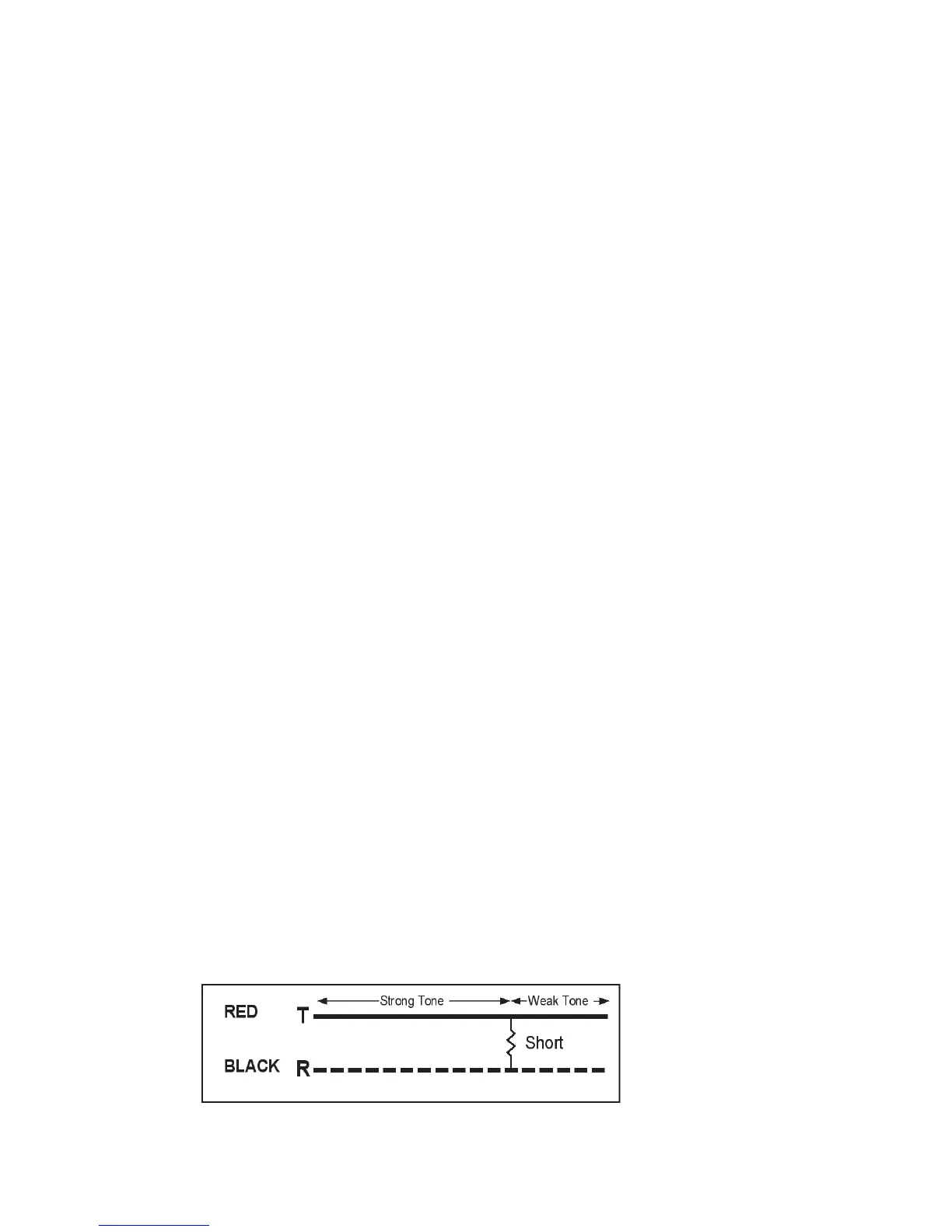

Figure #1 Red clip to Tip; Black clip to ring.
