General Description

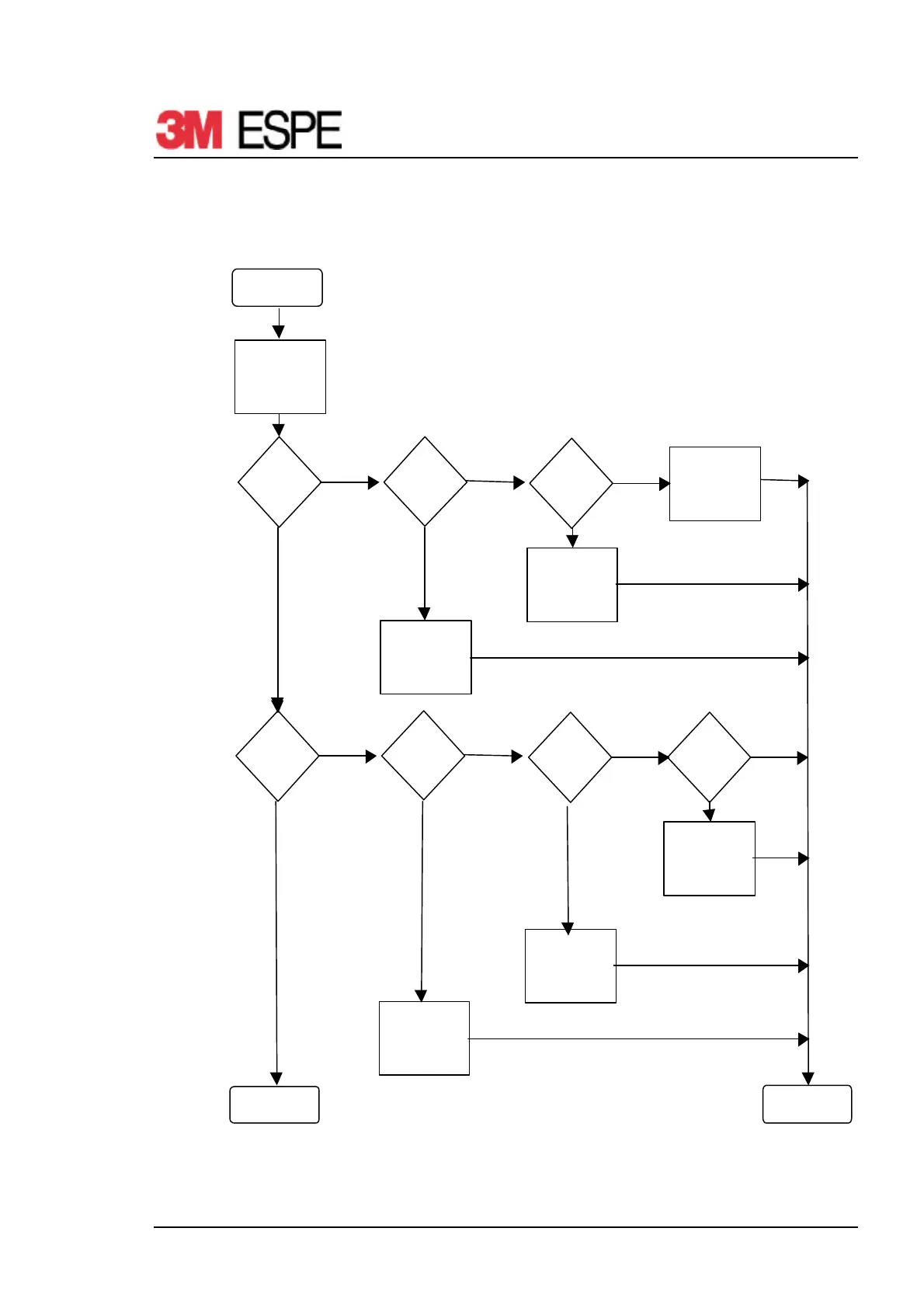

Fault location diagram
Enough
material
conveyed
?
Pinion faulty
?
Clutch worn
?
Exchange clutch
Exchange pinion
END
Feed motor
faulty
?
Exchange
feed motor
N N N
N
Y
Y
Y
Y
BEGIN
Connect to mains,
press button
Plunger discs
move
?
Power cable
faulty
?
Fuse faulty
?
PC board defect,
exchange if
necessary
Exchange
fuse
Exchange
power cable
N N N
Y
Y
Y
BEGIN
