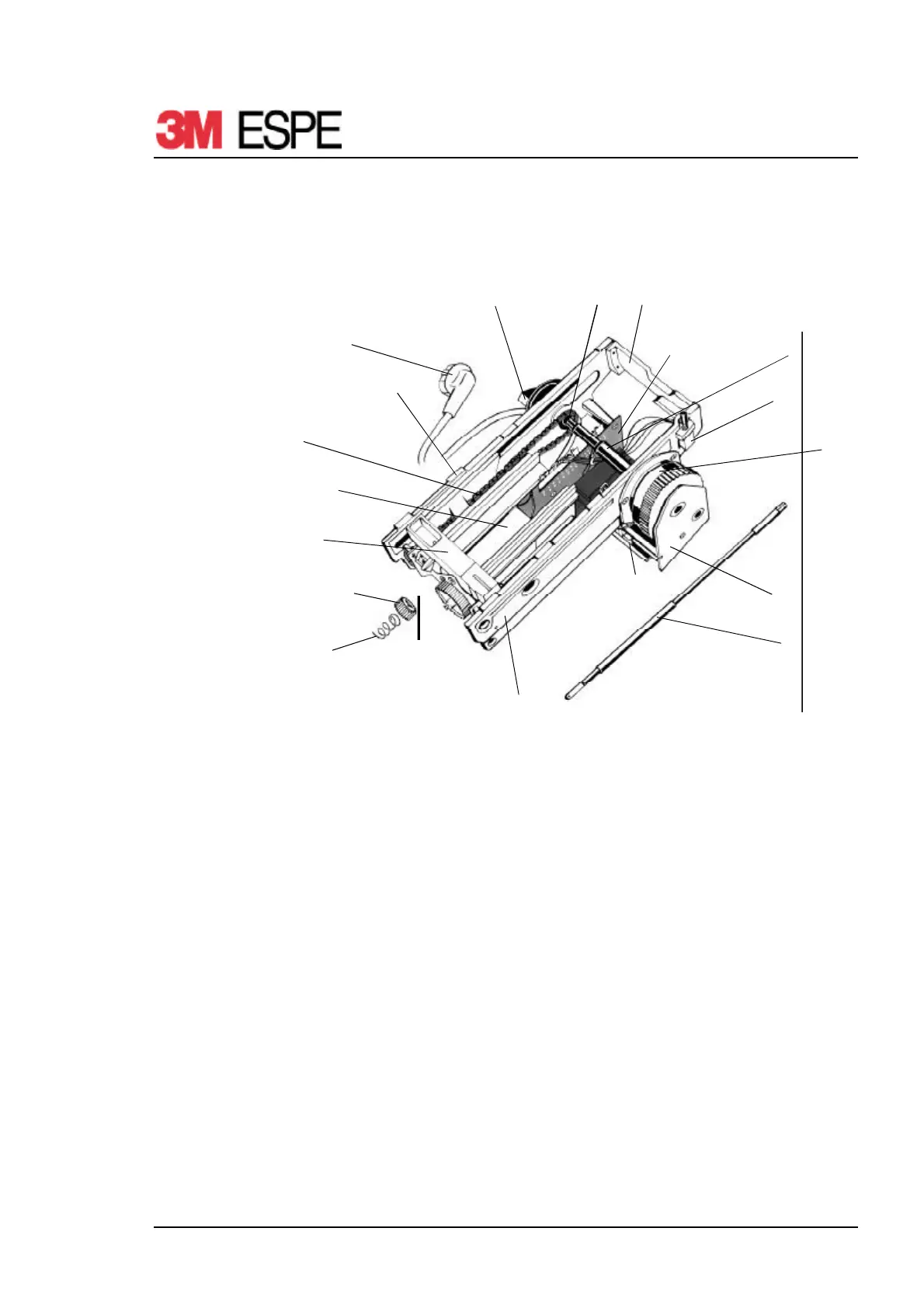

Fig. 2 Open PENTAMIX 2
5.1 Case Lid
Changing case lid
1. Open case lid and grasp with both hands
2. Remove case lid sideways
3. Snap new case lid into place by pressing onto both hinges
Power Cable
PC Board
Feed Motor
Power Switch
Helical
Compression Spring
Sliding Seal Ring
and Pinion
Case Twist Grip Endpiece
Clutch
Bottom
Plate
Drive Shaft
Bearing Plate
Mixer Shaft
Side Left Complete
Traverse
Mixer Motor
Side Right Complete
Chain
