12
d) Cut off the plastic cap on the end of the 3M
™
Monitor/Table Mat Cord
2380D and strip off approximately 1/2 inch of insulation and twist the
stranded wire together (Figure 6). Attach this end to an electrical ground
using a ring terminal (not supplied) or by wrapping the wire around the
head of a screw (Figure 7A).
e) Determine how you want to ground the 3M
™
Workstation Monitor 724:
• If you are grounding through the AC adapter, perform Step (3f.)
• If you are grounding through the Workstation Monitor 724 ground .........
wire, perform Step (3g.)
f) Attach the tinned ground wire of the AC adapter to the ground terminal
of the two-wire connector by inserting into opening and securing with
screwdriver (Figure 5B). Continue with Step (3h.)
g) Attach the tinned Workstation Monitor 724 ground wire to the ground
terminal of the two- wire connector by inserting the tinned end into opening
and securing with screwdriver (Figure 5A). Attach the ring terminal end
with a screw (not supplied) to an electrical ground (Figure 7B). Continue
with Step (3h.)
h) Plug the two wire connector into the jack at the rear of the Workstation
Monitor 724 monitor (Figure 8).
Two-Wire Connector
3M
™
Monitor-Table Mat
Replacement Cord
with Diode
3M
™
Monitor-Table Mat
Replacement Cord
with Diode
2380D
AC Adapter
Ground Wire
AC Adapter
Fig. 5A
Fig. 5B
Attach 3M
™
Workstation Monitor
724 Ground Cord or AC
Adapter Ground Wire
3M
™
Workstation Monitor
724 Ground Cord
DC Plug

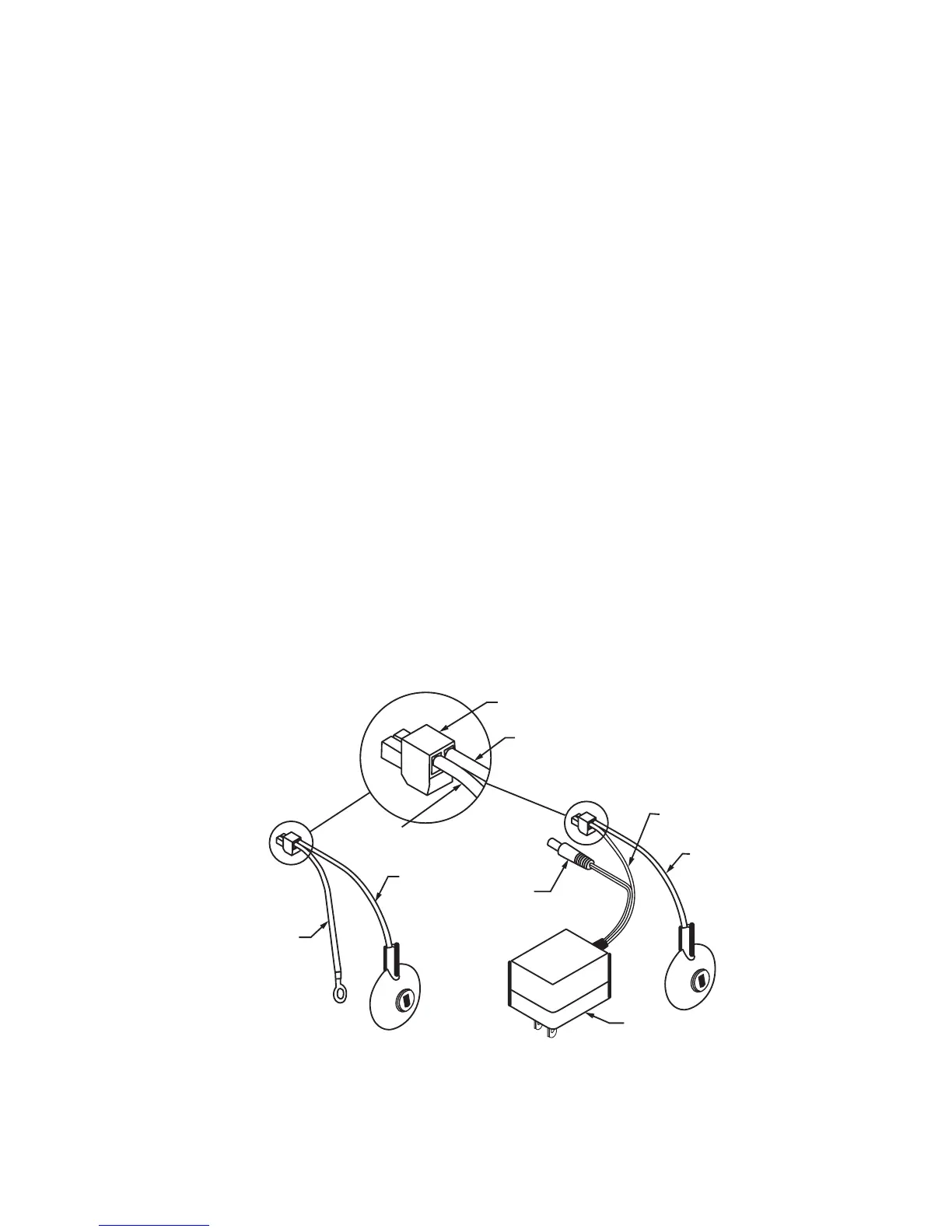

Figure 5A & 5B – Attaching ground wire/cord and work surface cord to two-wire connector.
