3M Workstation Monitor 724 - Page 13

13

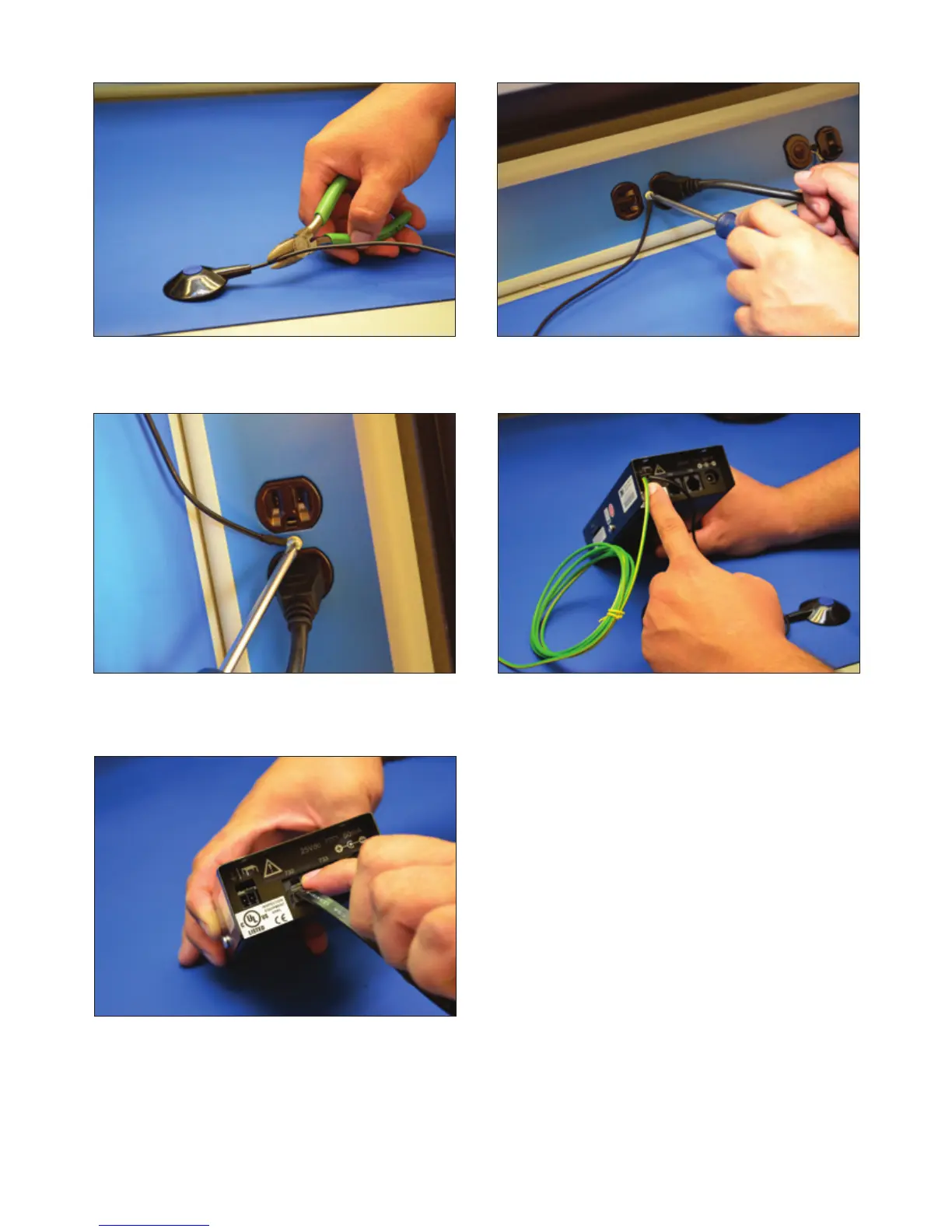

Figure 7A – Attaching system grounds. Note work,
surface and unit are grounded at different locations.
Figure 6 – Cutting off table mat ground snap.
Figure 7B – Grounding 3M
™
Workstation Monitor
724.
Figure 8 – Inserting two-wire connector into rear of
3M
™
Workstation Monitor 724.
Figure 9 – Inserting 3M
™
Dual Conductor Remote
Input Jack plug into rear of 3M
™
Workstation Monitor
724.
