A2 printer only: longest pipe is to be placed on feeder #1
(rightmost, when looking on the rear side).
After fitting PTFE piping on each filament feeder, you can
mount them on the printer, feeding the piping thru the
rear openings, just above each feeder position.
Each feeder has a “mandatory” position: refer to below
drawing to understand feeder placement on each printer
model
10

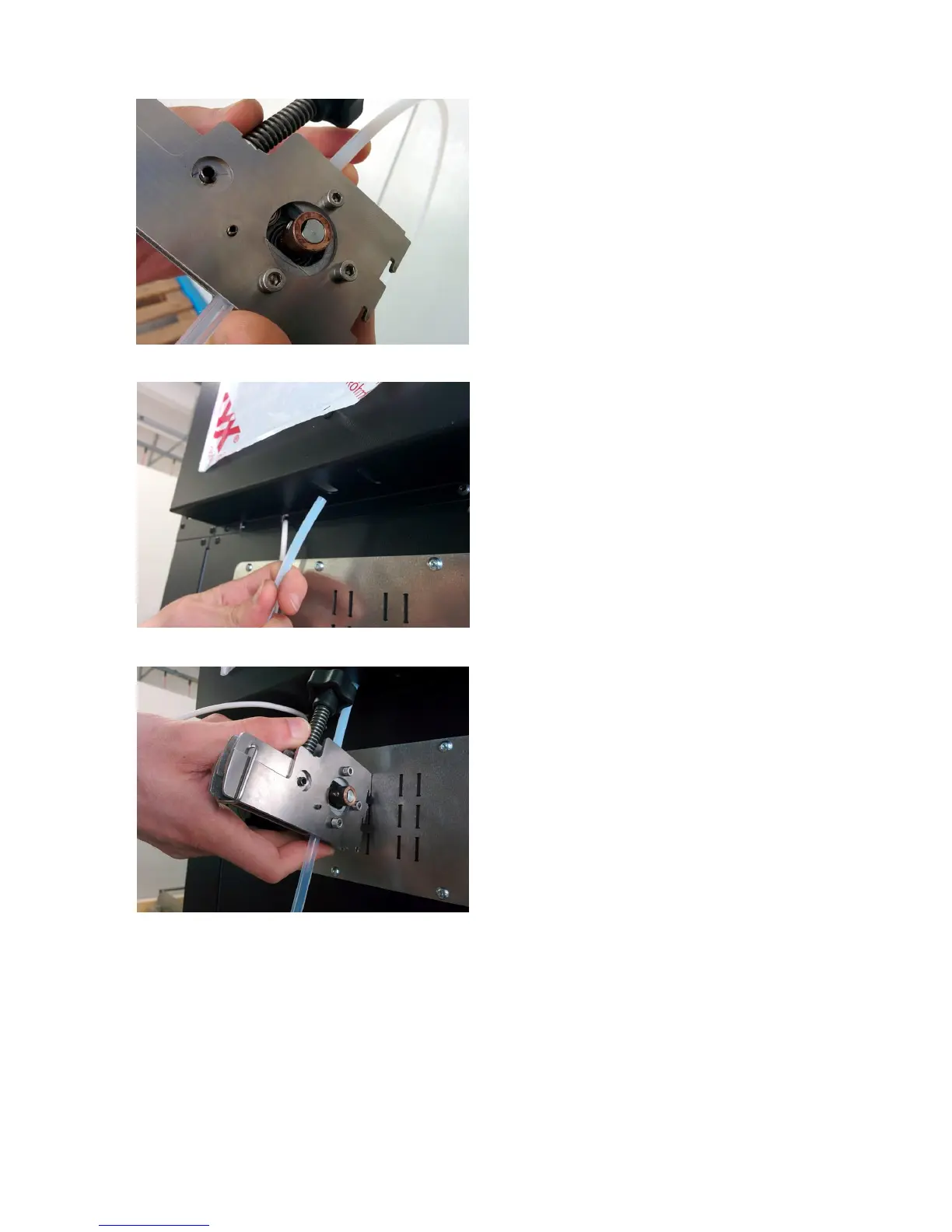

Fig. 5: PTFE piping must not touch feeding roller
Fig. 6: Feed PTFE in the rear openings
Fig. 7: Mounting feeder on printer
