After placing fitting PTFE piping on filament feeder, you
can mount feeders on printer, feeding the PTFE piping
thru printer opening on the rear, above each feeder
position.
Each feeder has a “mandatory” position: please refer to
fig 7 and 8 for respective printer models.
Mount all filament feeders.
Plug cables to each feeder.
Feeder #1 (rightmost, when looking at rear side of printer)
has longer cabling, to allow its use with optional feeder
(SPFU) for use with soft polymers.
11

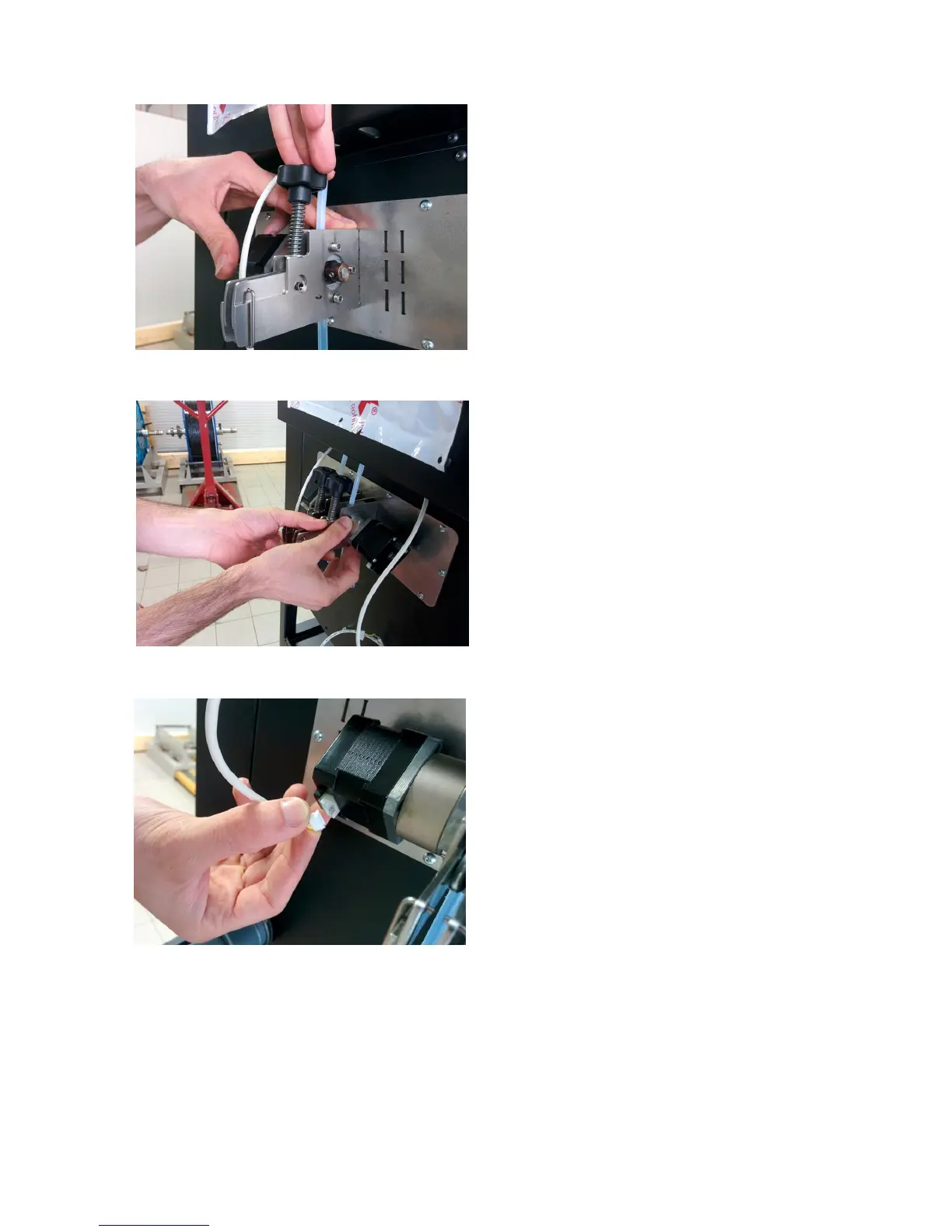

Fig. 8: Locking feeder on printer
Fig 9: lock feeder into rear “seating” holes
Fig 10: electrical wiring connection
