Caution:
The AC/DC adapter supplied with the unit provides mains isolation to UL60950/EN60950. If an alternative power
source is used, it must have an equivalent rating.
3.5.3.2. Power Consumption
Total power consumption depends on the number of active ports and options: up to around 25W. 3.5.3.3.
Power Connector
Power is supplied using a rear-panel-mounted 5-way 240° DIN connector with a screw-locking mechanism.

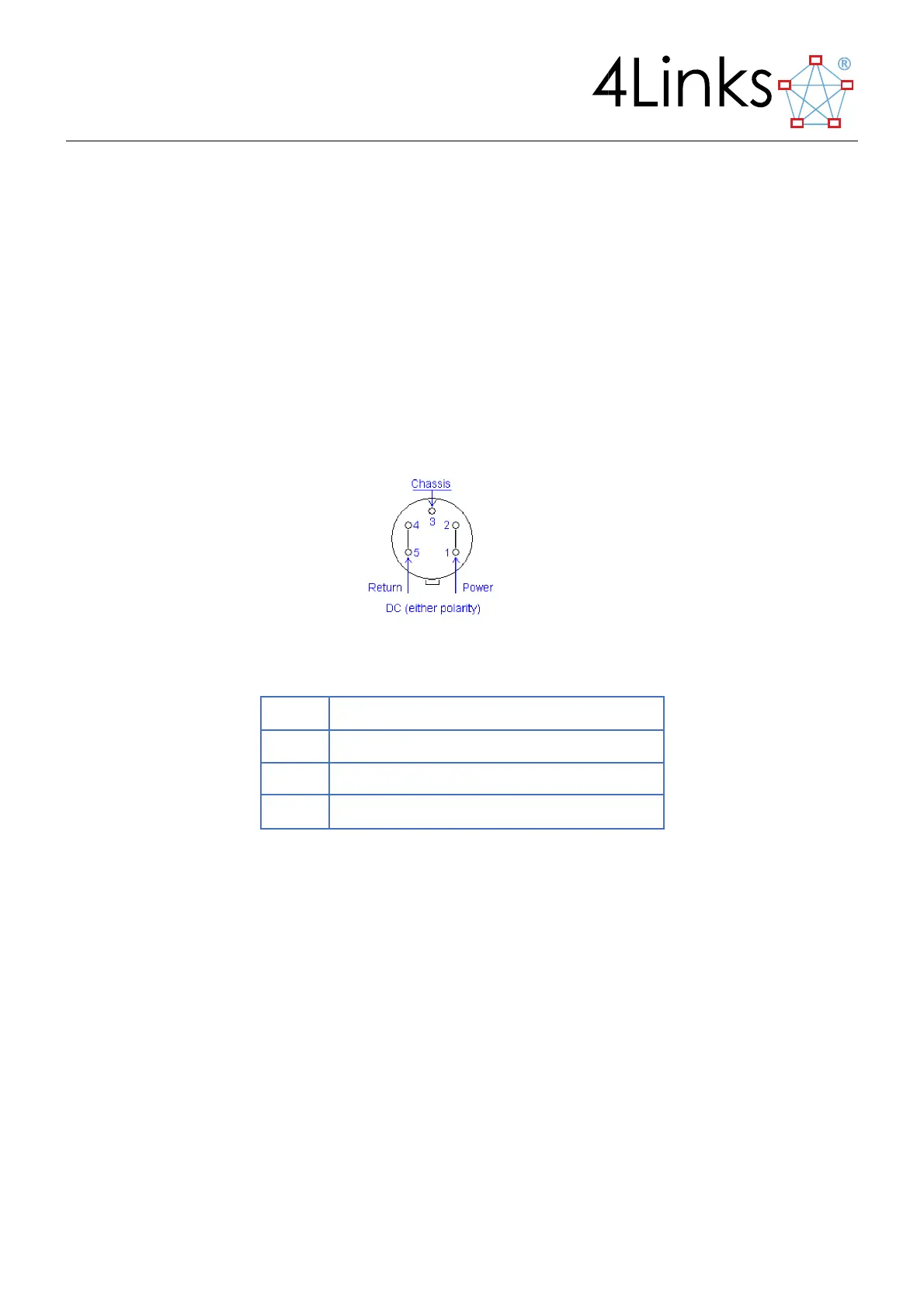

Figure 3.3: The 4Links RG Platform power connector
Functional ground (connected to case)
The connector type is a Binder 680-series 5-pin 240° chassis plug. A compatible mating connector is Binder part
number 09-0314-00-05.
