Page 30
6.1. IP address
This section allows the unit’s IP address is to be set statically. Each set of three digits holds the value of a byte and
thus may only be set between 0 and 255; attempts to set the values 256 to 299 will cycle digits within that byte
and selecting “next digit” will not move to the next byte until the value is within range.

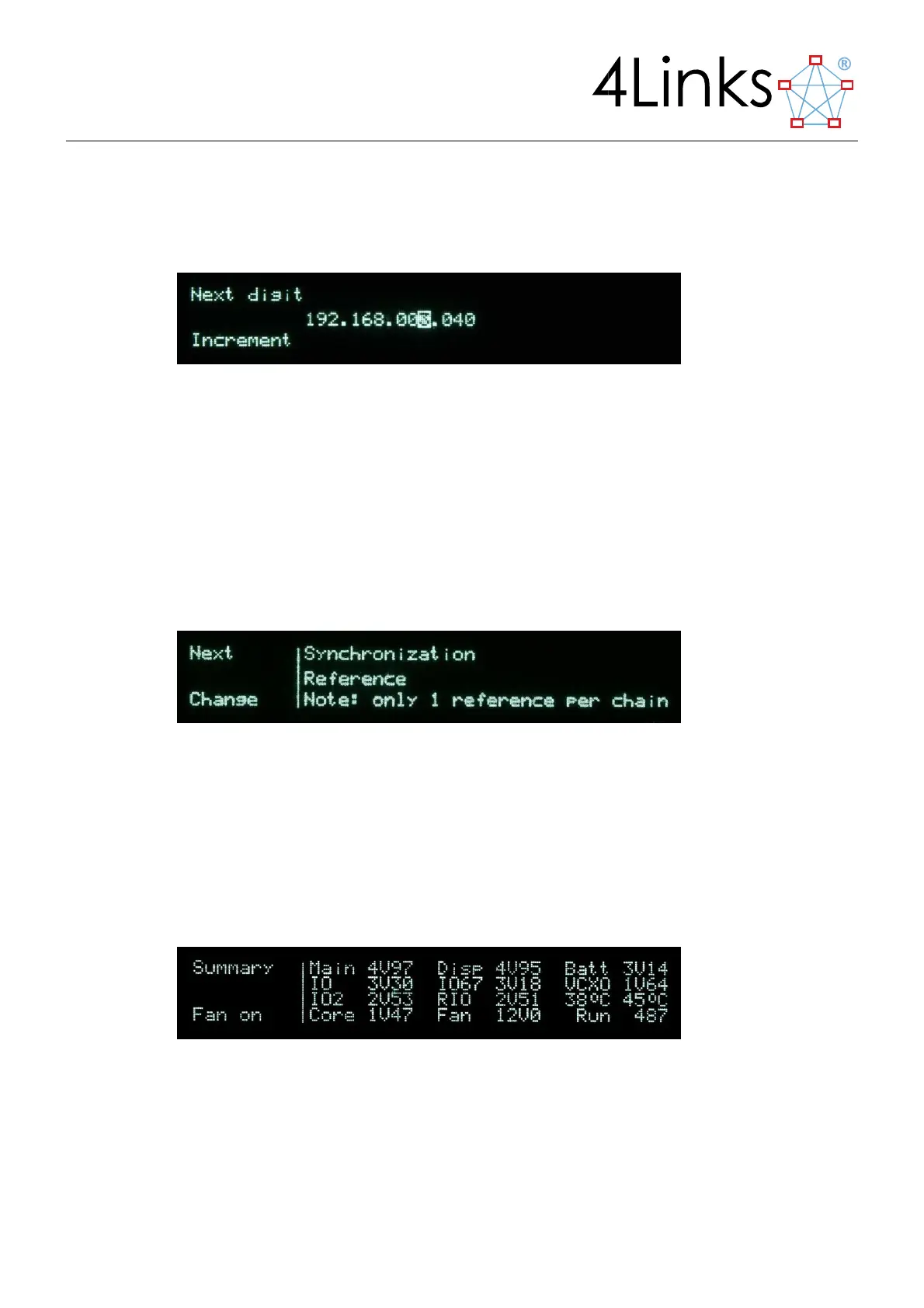

Figure 6.5: The IP address display
6.2. Time Synchronisation
This dialogue allows the selection of three settings for the time synchronisation between EtherSpaceLink units:
Synchronise to another unit’s reference time;
Provide the time reference source for other units;
Remain isolated and generate time tags locally.
For further details, see section 8, “Unit-to-Unit Time-Tag Synchronisation”.
Figure 6.6: The time synchronisation display
6.3. Health Display
The Health Display provides a frequently-updated view of the important temperatures and voltages in this
EtherSpaceLink unit.
It is possible to toggle the fan between an automatic mode, when it operates as necessary, and a permanently
enabled mode, when it operates continuously.
Figure 6.7: The health display
