5. Applications
This section describes sample Aprisa SR+ radio applications.
The following applications are described:
Basic point-to-multipoint application
Advanced point-to-multipoint application with repeaters
Multi-interface point-to-multipoint application

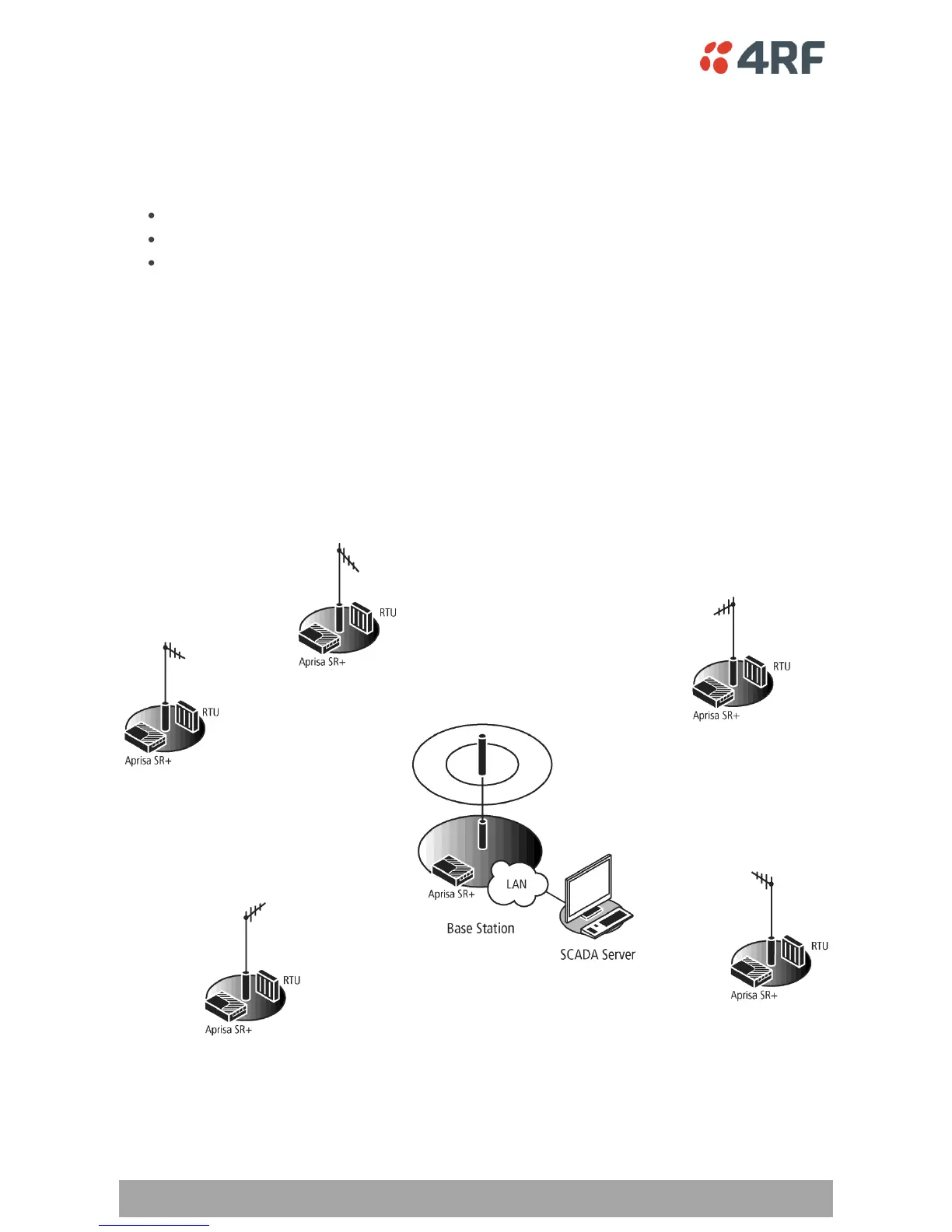

Basic point-to-multipoint application
Single base station with Ethernet SCADA data inputs to multiple geographically remote sites with Ethernet
RTUs requiring control and data acquisition.
The base station receives Ethernet frames from the SCADA server LAN and broadcasts all Ethernet frames
to all remote stations
Each remote site receives Ethernet frames from the RTU and unicasts over the air to the base station.
The base station uses an omni directional antenna to provide wide coverage and the remote stations are
fitted with directional Yagi antennas to provide higher gain.
