BRAKE DRUM BEARING (DE-LUXE MO DELS)
The independent ball bearing upon w hich the rear brake drum is mounted, is packed
with grease upon assembly and requires no further attentio n for a considerable time.
During a general overhaul howeve r it is recommended that the bearing is dismantled and
re-packed with fresh hub grease.

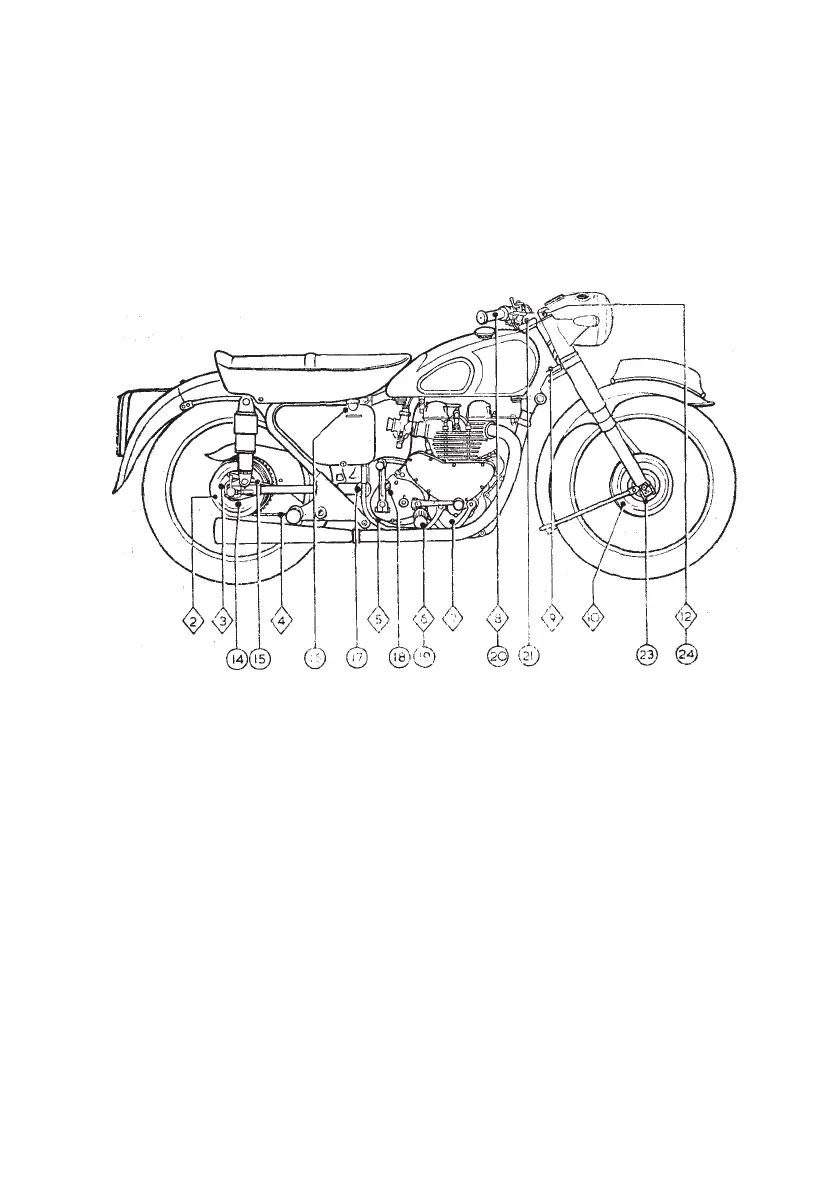

LUBRICATION CHART
The figures in diamond frames refer to parts located on the left hand side of the machine
and those in circles refer to parts located o n the right hand side, and apply to both
single and twin cylinder models.
16
7
8
20
2
6
19
12
24
18
Engine Oil Locations
MAIN OIL TANK.
FRONT CHAINCASE.
CONTROL LEVER MOVING PARTS.
BRAKE ROD JOINTS.
CENTRE AN D PROP STAND HINGE PINS.
Hydraulic Fluid Locations
FRONT TELEDRAULIC F ORKS.
Heavy Engine Oil Location
GEAR BOX.
23
14
21
9
15
10
3
5
17
4
Grease Locations
FRONT HUB.
REAR HUB.
STEERING HEAD TOP BEARING.
STE ERING HEA D BOTTOM BEARING.
SPEEDOMETER GEAR BOX.
FRONT BRAKE EXPANDER.
REAR BRAKE EXPANDER.
BRAKE PEDAL SPINDLE.
Heavy Gear Oil Location SAE- 140
REAR FORK HINGE.
Molten Gr ease Location
REAR CHAIN.
Lubrication Chart
Illustration 10
When buying oils and greases it is advisable to specify the Brand as well as the grade
and, as an ad ditional precaution, to only buy in sealed containers or from branded cabinets.
BRAKE EXPANDER LUBRICATION
Grease nipple on each brake expander bush. (One on each brake cover plate.) Use
grease sparingly. Excessive grease may impair efficiency of brakes.
}
}
}
