A.J.S. 16 - Distributor Diagram

To Next Page

To Previous Page

Examine the contact breaker. The contacts must be free from grease or oil. If they

are burned or blackened, clean with fine carborundum stone or very fine emery cloth,

afterwards wiping away any trace of dirt or metal dust with a clean petrol-moistened

doth.

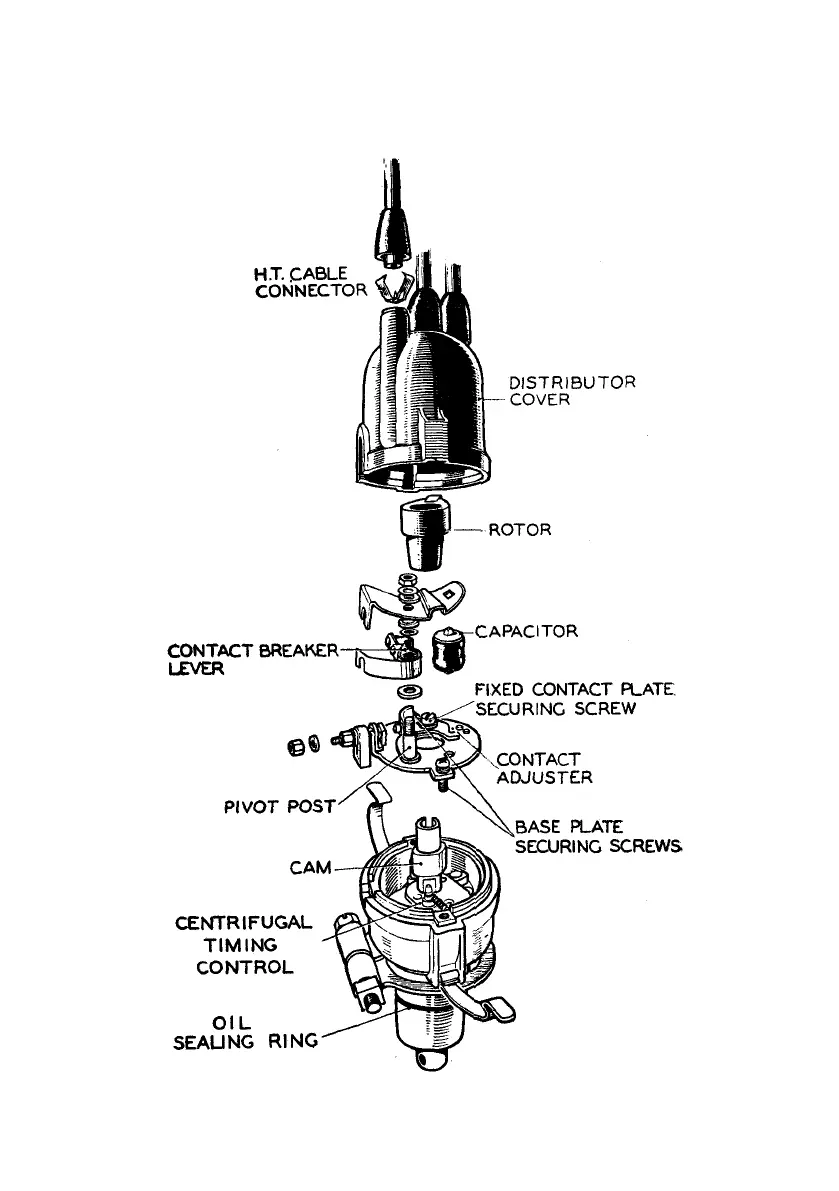

Illustration 43—Distributor
