A.O. Smith 101 Series Service Handbook

Servicing should only be performed by a Qualified Service Agent
19
OPERATION & SERVICE

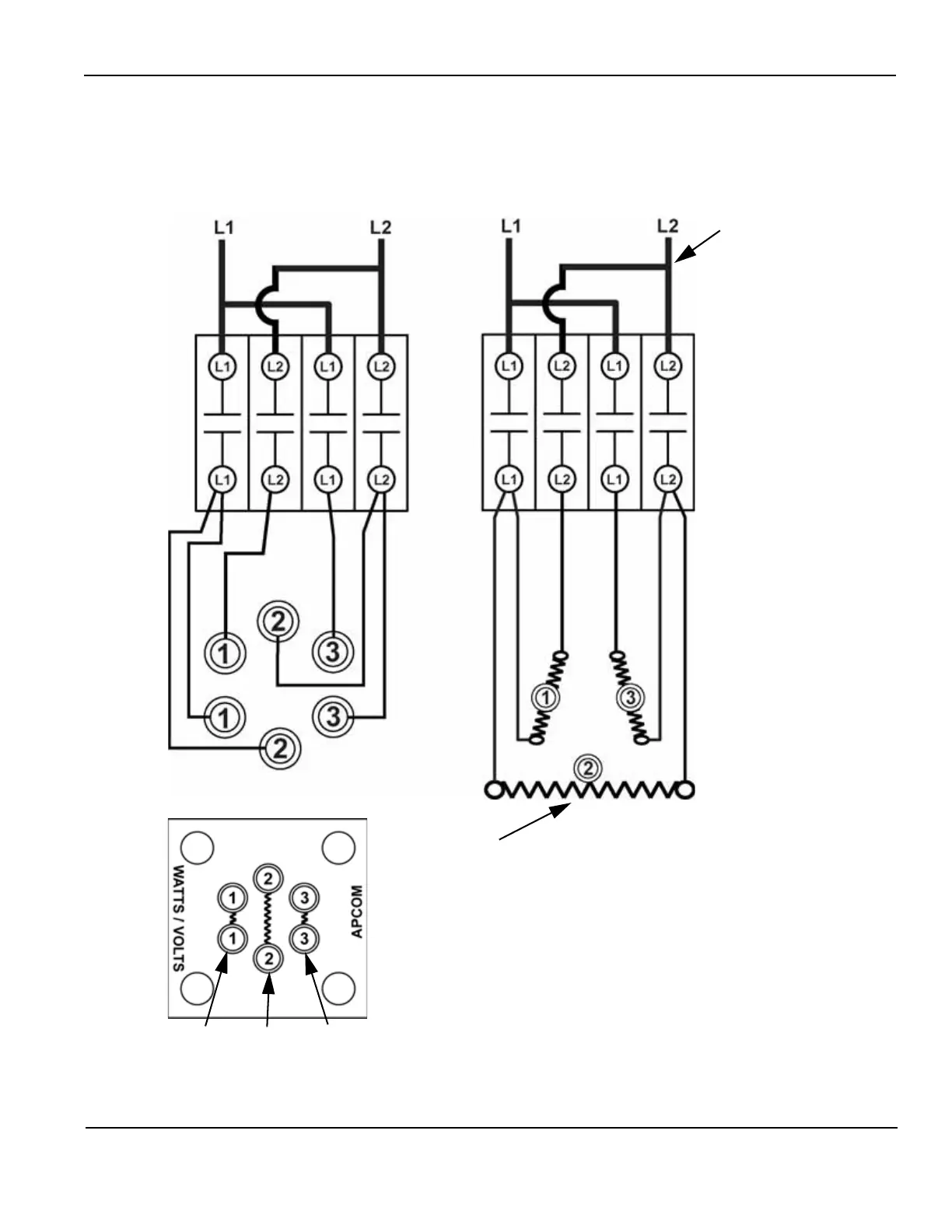

Single Phase Wiring - 4 Pole Contactor
The illustrations below show how six wire heating elements (page 17) are wired to 4 pole
contactors on water heaters connected to a single phase power supply. See the
“Contactors” section of this manual - pages 34 - 38.
Heating Element Flange - End View
Two ends
of loop 1
Two ends
of loop 2
Two ends
of loop 3
Connection Diagram Wiring Diagram
4 Pole
Contactor
Three loops
of one heating element
Single phase (1Ø)
power supply
Models configured for
single phase power (1Ø)
and equipped with 4 pole
contactors will have two
jumper wires. One
between the 1st and 3rd
poles of the contactor
and one between the 2nd
and 4th poles of the
contactor.
