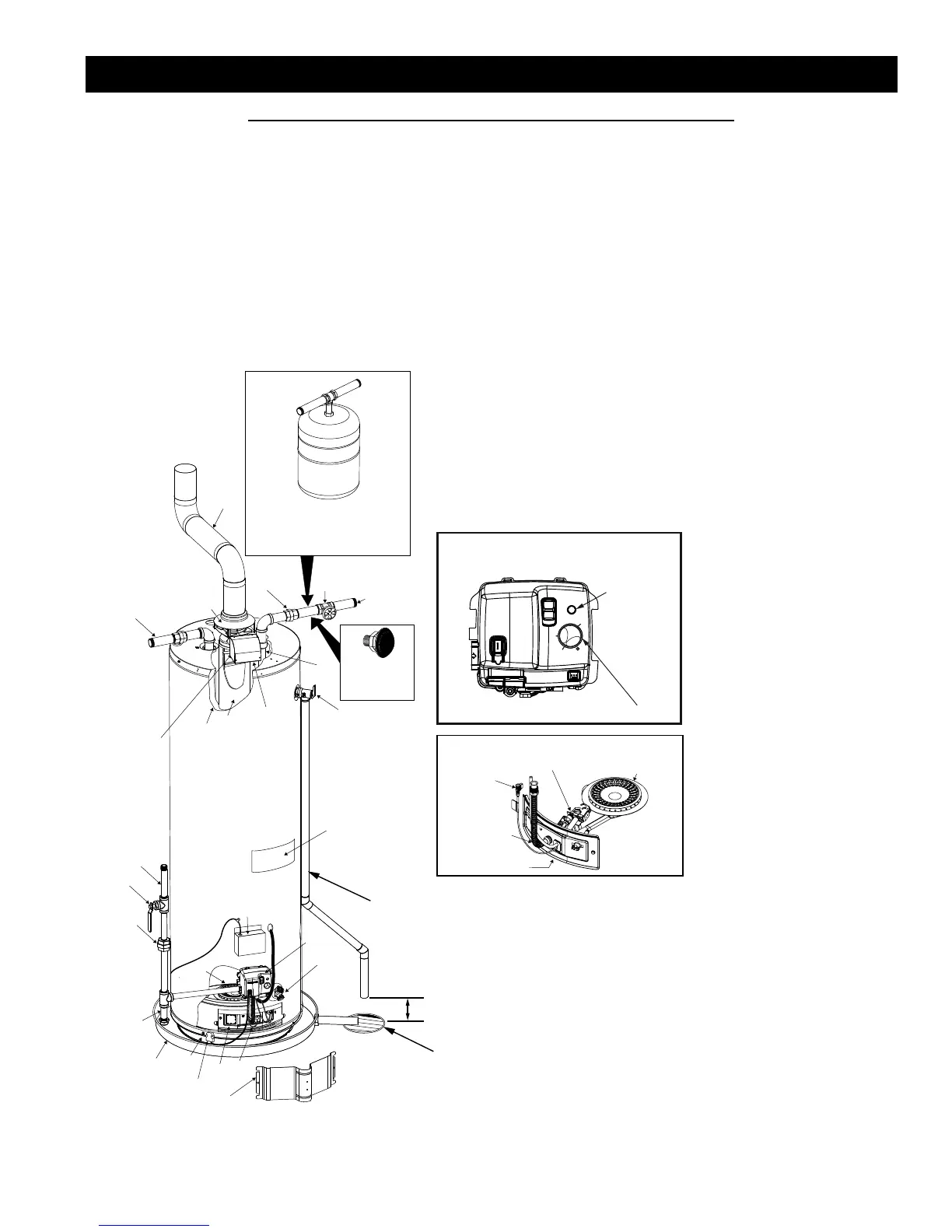

TYPICAL INSTALLATION
GET TO KNOW YOUR WATER HEATER - GAS MODELS
A Vent Pipe
B Draft Hood
C Anode (Not Shown)
D Hot Water Outlet
E Insulation
F Gas Supply Piping
G Manual Gas Shut-off Valve
H Ground Joint Union
I Drip Leg (Sediment Trap)
* INSTALL IN ACCORDANCE
WITH LOCAL CODES.
* DRIP LEG AS REQUIRED
BY LOCAL CODES.
J Inner Door
K Outer Door
L Union
M Inlet Water Shut-off Valve
N Cold Water Inlet
O Inlet Dip Tube
P Temperature-Pressure Relief Valve
Q Rating Plate
R Flue Baffl e
S Gas Control Valve/Thermostat
T Drain Valve
U Pilot and Main Burner
V Flue
W Metal Drain Pan
X Igniter Wire
Y Base-Ring Filter
Z FV Sensor
AA Transformer
BB Flue Damper
* ALL PIPING MATERIALS TO BE
SUPPLIED BY CUSTOMERS.
TO VENT
TERMINATION ON
ROOF
B
D
F
G
H
I
W
U
T
O
R
J
K
Q
VACUUM RELIEF
VALVE
*INSTALL PER
LOCAL CODES
INSTALL THERMAL EXPANSION
TANK IF WATER HEATER IS
INSTALLED IN A CLOSED
WATER SYSTEM
M
N
L
E
P
Y
MANIFOLD
TUBE
IGNITER
WIRE
MAIN BURNER
PILOT ASSEMBLY
(U) MANIFOLD/BURNER ASSEMBLY
MANIFOLD DOOR
DISCHARGE PIPE
(DO NOT CAP OR PLUG.)
6” MAXIMUM
AIR GAP
FLOOR DRAIN
(S) GAS CONTROL VALVE/
THERMOSTAT
A
Z
AA
S
BB
GAS CONTROL/TEMPERATURE KNOB
STATUS
LIGHT
ON
OFF
STATUS
X
V
A
B
C
•
•
VE
R
Y
HOT
HOT
LOW
VA C
NOTE: POWER CORD NOT
SHOWN FOR CLARITY
