T-H2-DV/T-H2-OS Service Manual
Ver. 1.01
57
CONFIDENTIAL

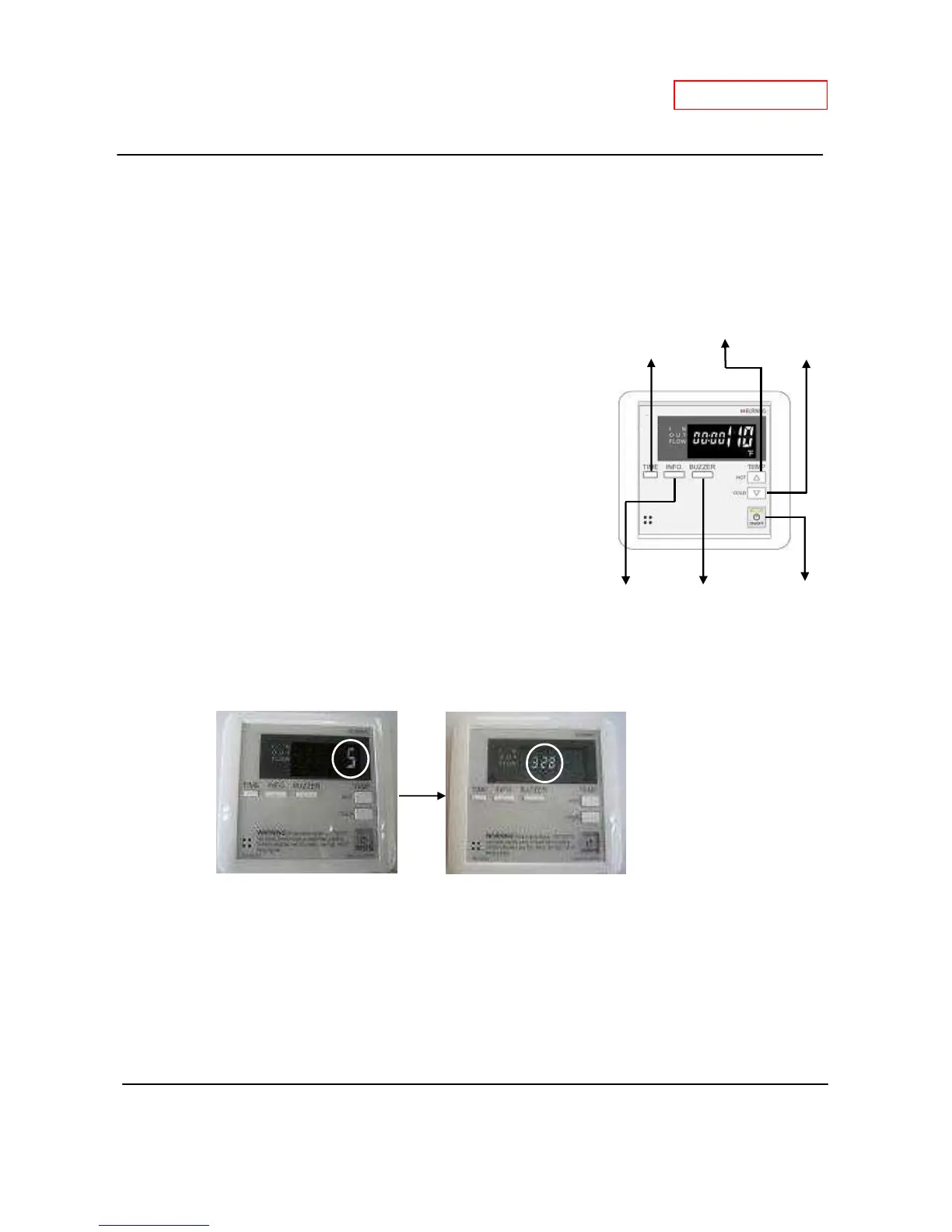

12-1. (B) Diagnosis using the TM-RE30
< Individual unit>
1. Press the "HOT" button and the "COLD" button simultaneously for
at least 5 seconds to enter “Diagnostic mode.
2. Scroll up or down to the needed information (mode #) of the
T-H2-DV or T-H2-OS by pressing the HOT or COLD buttons
(Fig.1 shows mode #5 being selected.)
When selecting information, please refer to the table on p. 58
and p.59 for the proper mode #.
3. Press the INFO button to select the mode #, and the
information to which the mode # correlates to will display on the
TM-RE30 (Fig.2).
4. When theON/OFFbutton is pressed or 5 minutes have elapsed
without pressing any buttons, the display will return to normal.
Fig.1
Fig.2
Mode #
Information
TIME”
Button
HOT”
Button
“ON/OFF”
Button
“COLD
Button
INFO”
Button
“BUZZER”
Button
