LCD MENU OPTIONS
The LCD Menu Options chapter below will give you a clear and concise understanding of what
each option entails and its default value. User is encouraged to use this as a guideline when
adjusting MK20RC’s settings for optimal video results
I. Camera Setup
*Underlined values are set as system default values.

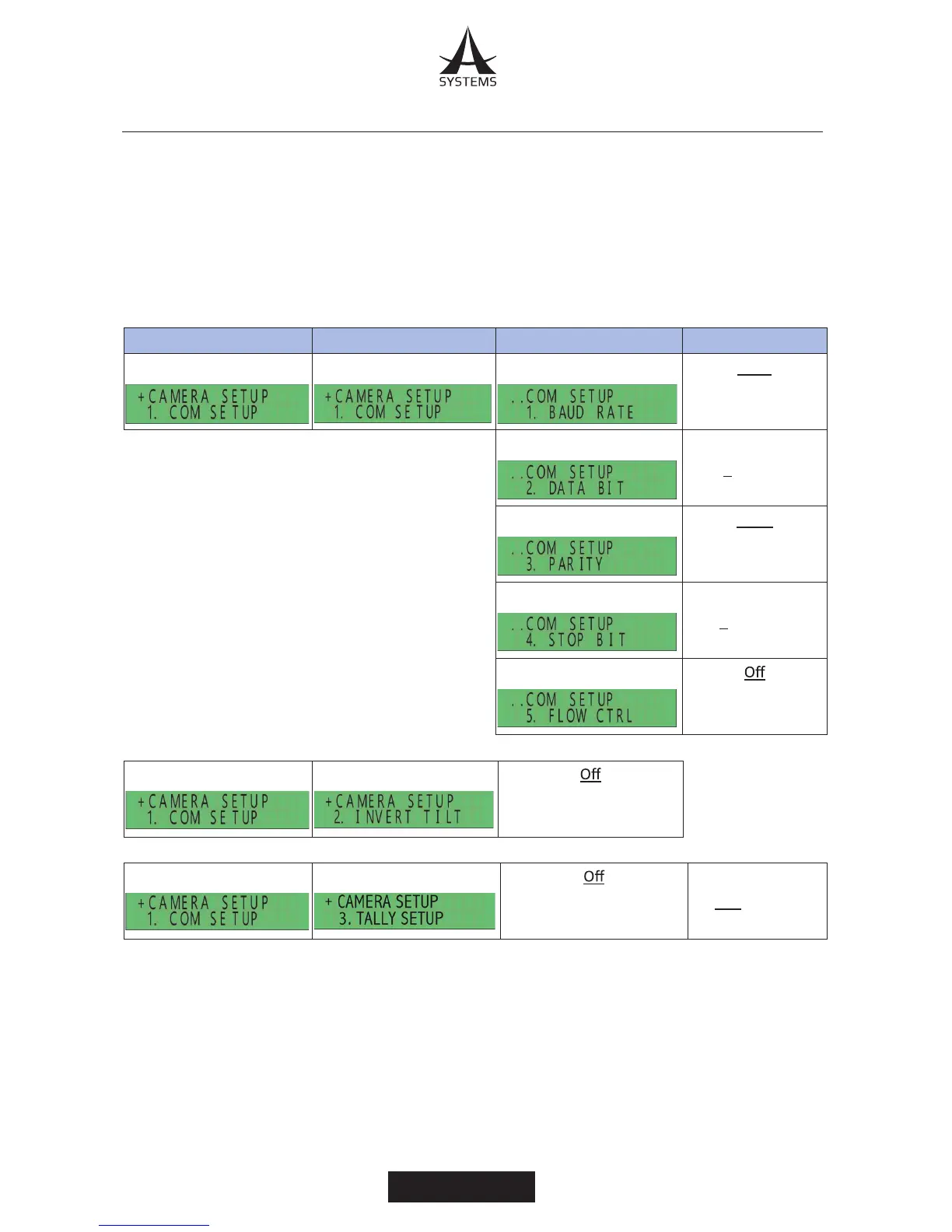

Level 1 (F1) Level 2 (F2) Level 3 (F2) Level 4 (F2)
Camera Setup COM Setup Baud Rate 9600
115200
384000
Data Bit
0 – 8 Bits
Parity None
Odd
Even
Stop Bit
0 – 10 Bits
Flow CTRL
On
Camera Setup Invert Tilt
On
Camera Setup Tally Setup
On
F1: (TALLY 1)-5
F2: OFF, CH1 to 8,
CHA and CHB.
