12
MHGRV-X Field Technical Guide
LCD SCREENS
Navigation Keys
LCD Display Screen and Navigation
Keys
The LCD display screens and buttons allow you to view status
and alarms, and enable force modes. See Figure 4, this page
and refer to Table 3, this page for descriptions.

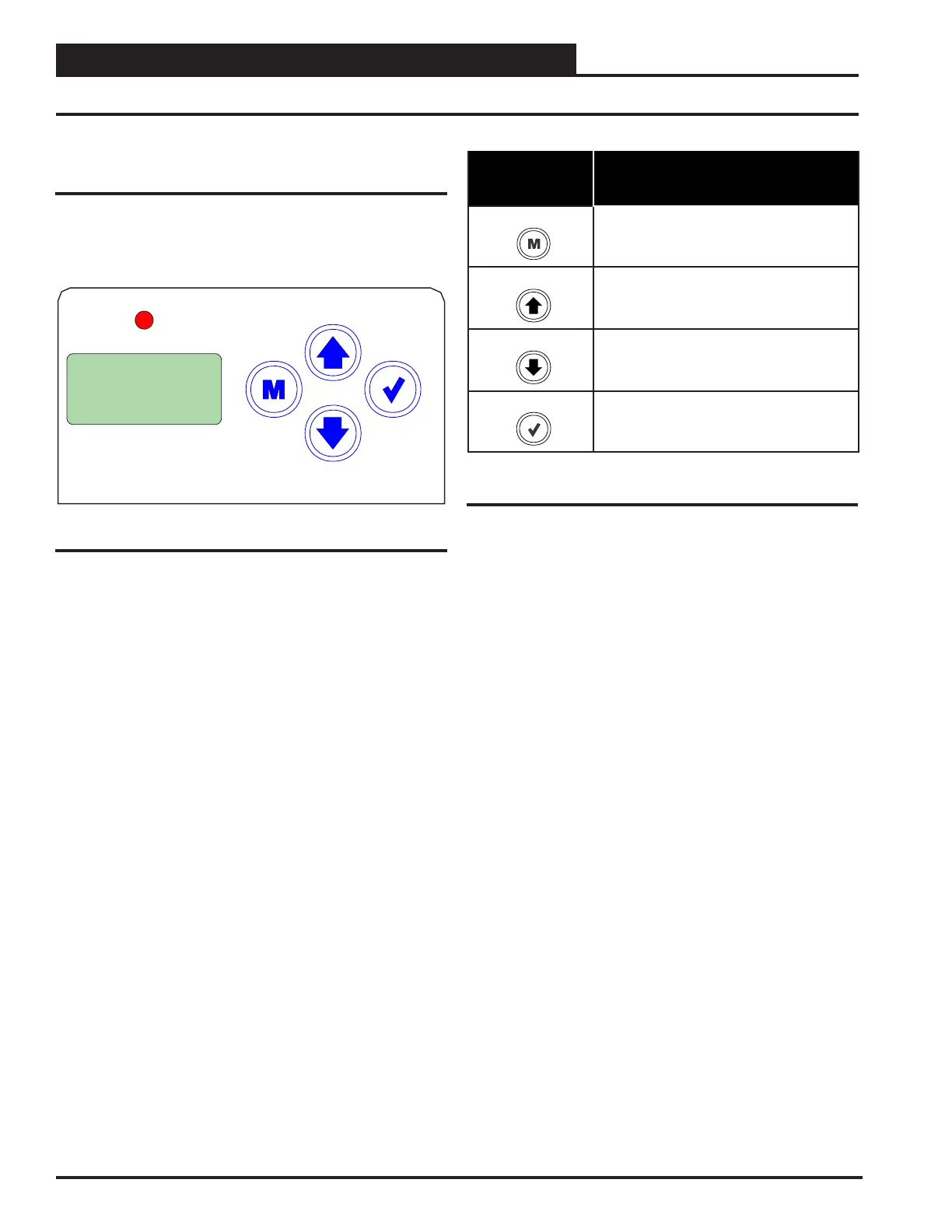

Figure 4: LCD Display and Navigation Keys
Table 3: Navigation Key Functions
NAVIGATION
KEY
KEY FUNCTION
MENU Use the MENU key to move through screens
within Main Menu categories and return to the
Main Menu while at other screens.
UP Use this key to adjust setpoints and change
congurations.
DOWN Use this key to adjust setpoints and change
congurations.
ENTER Use the ENTER key to navigate through the
Main Menu Screen categories.
ALARM
UP
DOWN
ENTERMENU
