MHGRV-X Field Technical Guide
Overview
The ASM01687 Reheat Expansion Module is designed to control
one set of reheat valves.
The Reheat Expansion Module connects to the MHGRV-X via
an EBC E-BUS communication cable.
Connected together, the Reheat Expansion Modules provide a
system that allows the proper control of multiple sets of valves.
See Figure 8, this page for dimensions.
Features
The Reheat Expansion Module provides the following:
• Up to seven Reheat Expansion Modules can be used
• Each Reheat Expansion Module controls one set of
reheat valves (one Reheat and one Condenser)
• Each Reheat Expansion Module has its own Cooling
• Reheat Flush Timers
• Reheat Expansion Modules conveniently plug into
one another

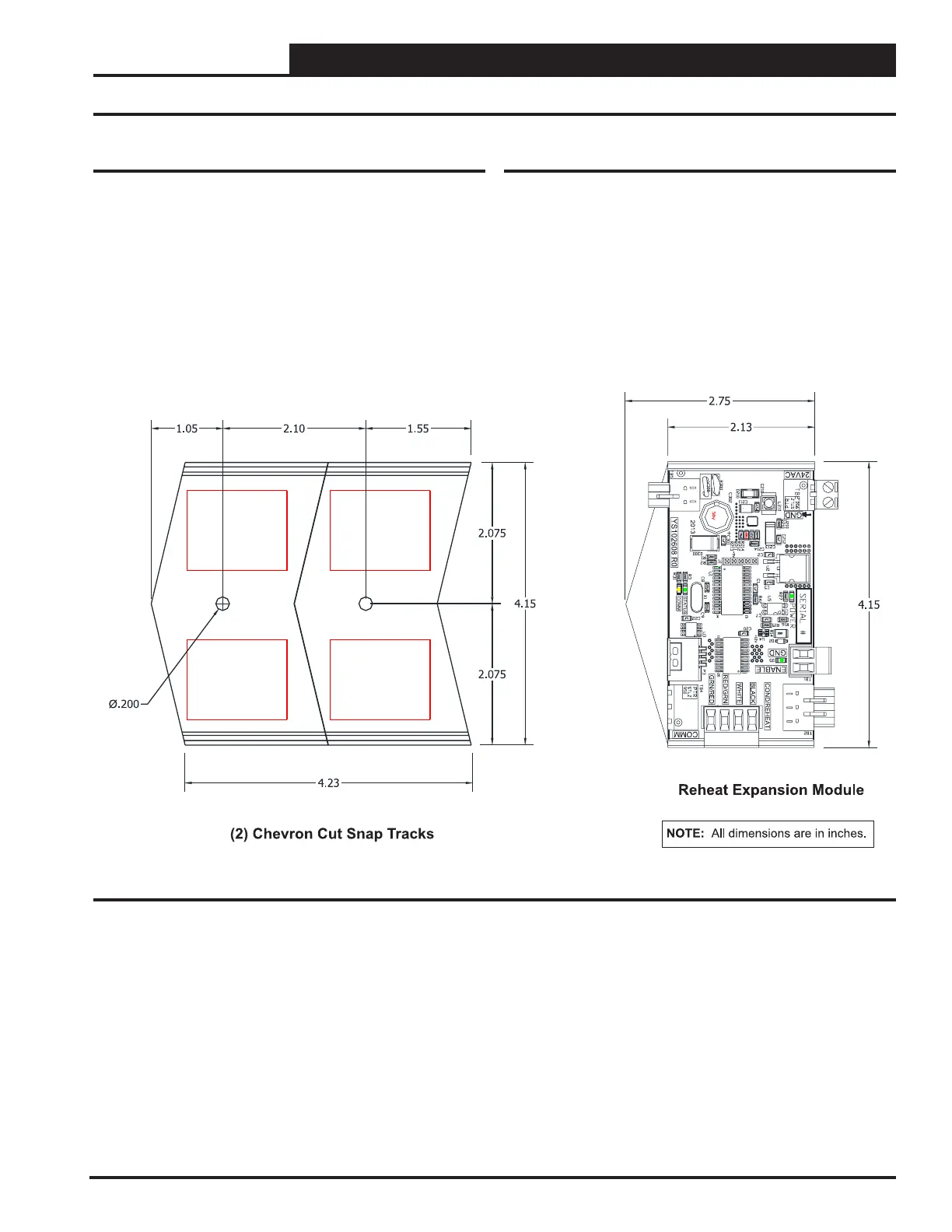

Figure 8: Reheat Expansion Module and Mounting Plate Dimensions
APPENDIX C: REHEAT EXPANSION MODULE
Features and Dimensions
