APPENDIX
E-BUS Digital Room Sensor Technical Guide
14
E-BUS Digital Room Sensor to VAV/Zone Controller Wiring
E-BUS Digital Room Sensor to VAV/
Zone Controller Wiring
The Temperature Only E-BUS Digital Room Sensor connects to the
VAV/Zone Controller with an EBC E-BUS expansion cable. It can also
be hard-wired to the VAV/Zone Controller.
The E-BUS Digital Room Sensor should be mounted at approximately
5 Ft. above the fl oor on the wall in an area that does not have drafts or
is exposed to direct sunlight. See Figure 20 for wiring details.

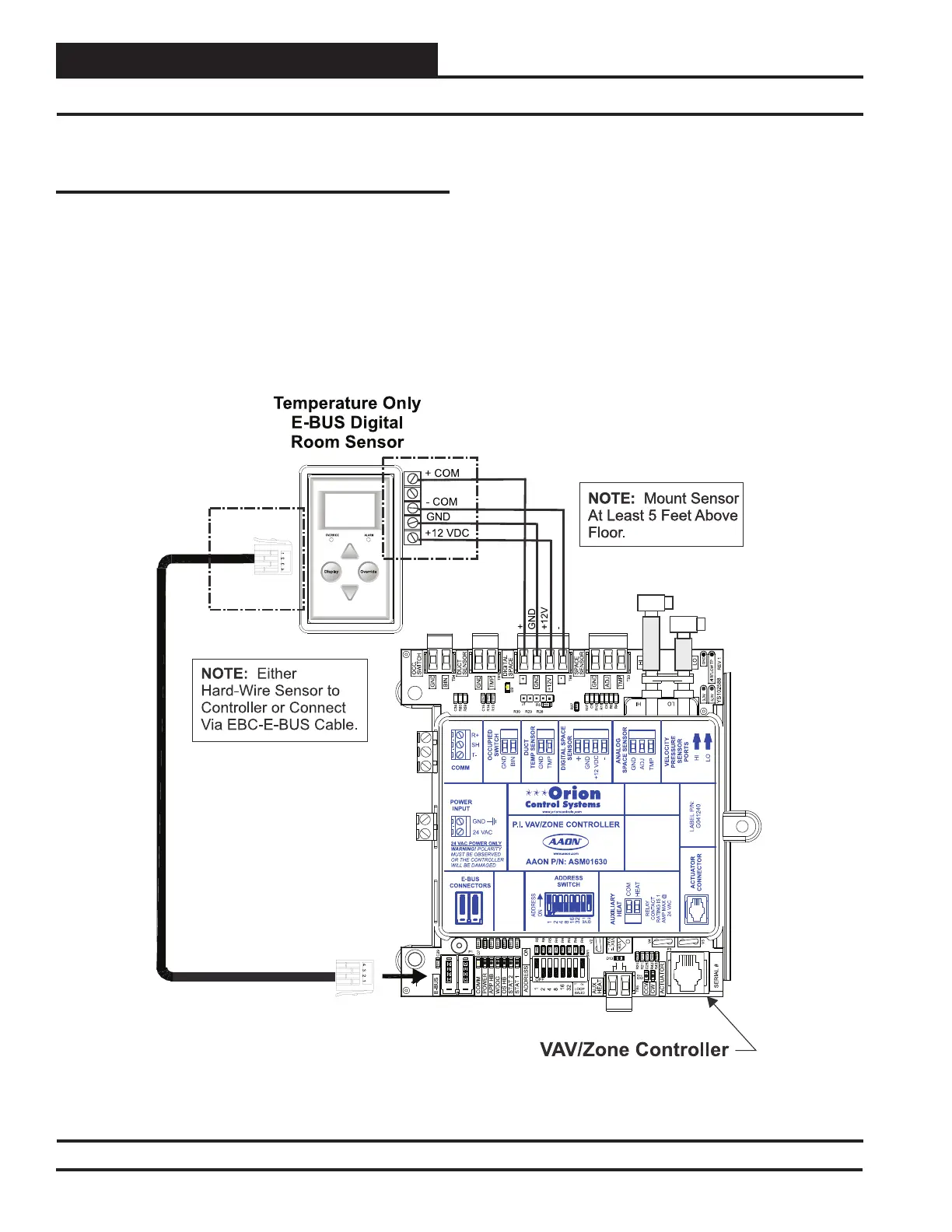

Figure 20: VAV/Zone Controller E-BUS Digital Room Sensor Wiring
