AAON Orion ASM02221 - Wiring to HVAC Unit Controller (VCCX2;VCB-X)

APPENDIX
E-BUS Digital Room Sensor Technical Guide
12
E-BUS Digital Room Sensor to HVAC Unit Controller Wiring
E-BUS Digital Room Sensor to HVAC
Unit Controller Wiring
The E-BUS Digital Room Sensor connects to the VCCX2 or VCB-X
Controller with the EBC E-BUS expansion cable.
The E-BUS Digital Room Sensor should be mounted at approximately
5 Ft. above the fl oor on the wall in an area that does not have drafts or
is exposed to direct sunlight. See Figure 18 for wiring details.

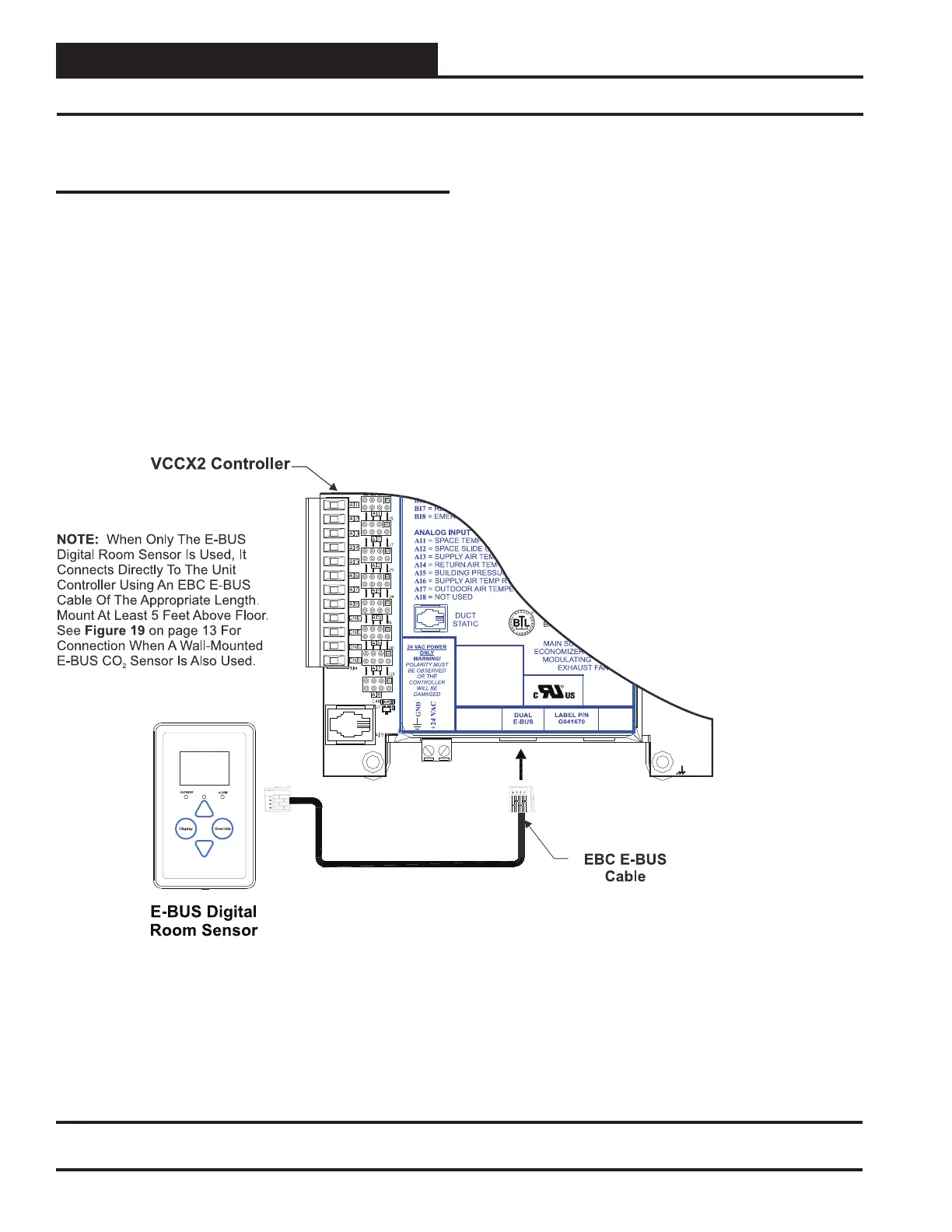

Figure 18: E-BUS Digital Room Sensor Wiring
