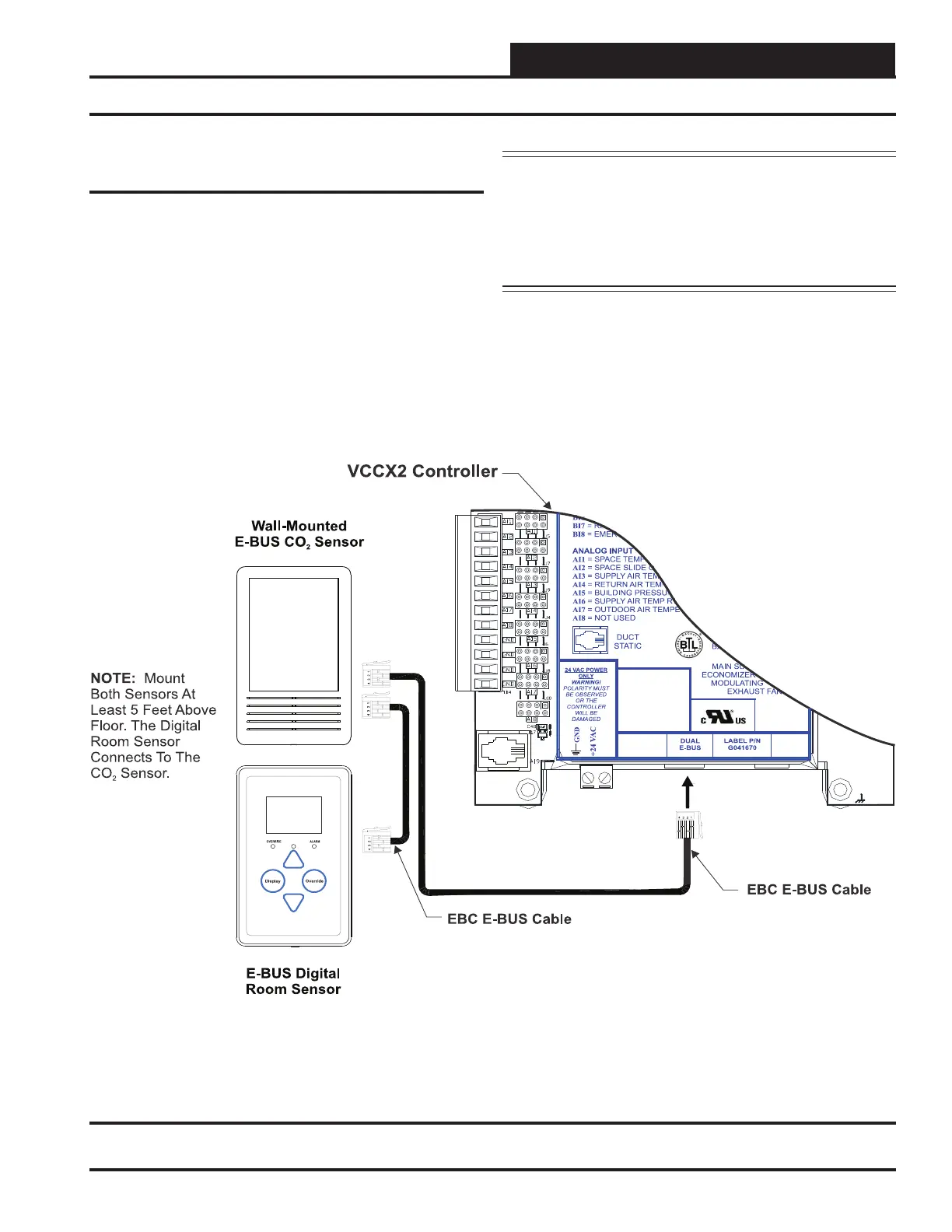

Figure 19: ASM01829 – Wall Mounted E-BUS CO
2
Sensor Wiring
E-BUS CO
2
Wall Mounted Sensor to
HVAC Unit Controller Wiring
The ASM01829 Wall Mounted E-BUS CO
2
Sensor is used to monitor
CO
2
levels in the space served by the HVAC unit. The CO
2
Sensor con-
nects to the VCCX2 or VCB-X Controller with an EBC E-BUS cable. It
can be daisy-chained with the E-BUS Digital Room Sensor for applica-
tions requiring both a room CO
2
sensor and room temperature sensor.
It should be mounted at approximately 5 Ft. above the fl oor on the wall
in an area that does not have drafts or is exposed to direct sunlight. See
Figure 19 for wiring details and installation notes.
Wall Mounted E-BUS CO
2
Sensor Wiring
NOTE: The ASM01831 Duct Mounted E-BUS CO
2
Sensor can
be used if desired instead of the Wall Mounted E-BUS
CO
2
Sensor. However, the E-BUS Digital Room Sensor
does not directly connect to the Duct Mounted E-BUS
CO
2
Sensor. See the Duct Mounted E-BUS CO
2
Sensor
Technical Guide for Duct Mounted E-BUS CO
2
Sensor
wiring details.
