APPENDIX
E-BUS Digital Room Sensor Technical Guide
18
Mounting Plate Dimensions

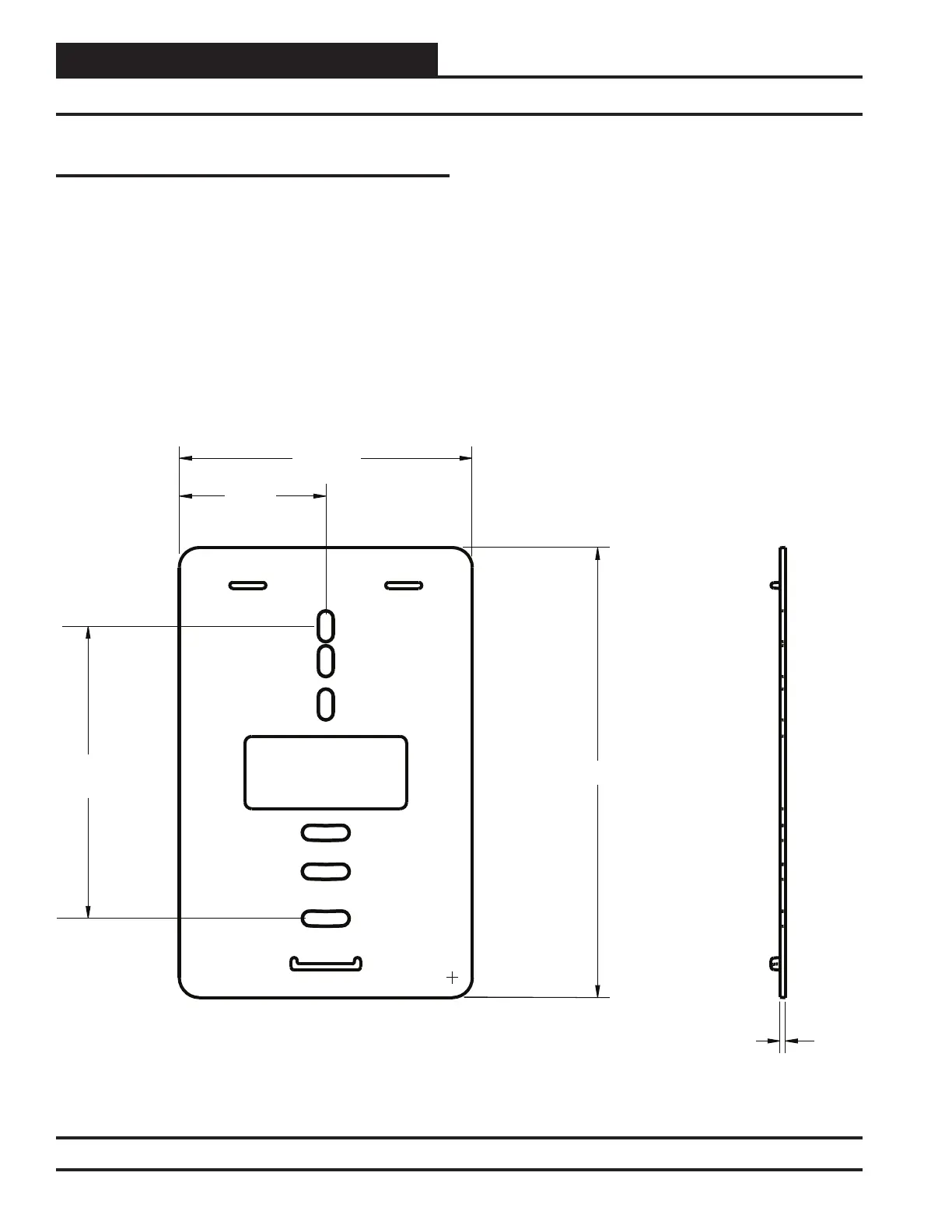

Figure 25: G026490 Mounting Plate Dimensions
1.64
3.285
0.060
5.045
3.27
Optional Mounting Plate
Included with the Digital Room Sensor is a mounting plate that
can be used, if necessary, to cover the sensor sheet rock opening.
This mounting plate screws onto the back of the housing base.
The mounting plate is then mounted and covers the recessed space
in the wall. A locking screw secures the sensor to the wall. See
Figure 25 for dimensions.
