WIRING
7 BACnet
®
General Controller Technical Guide
BGC Wiring

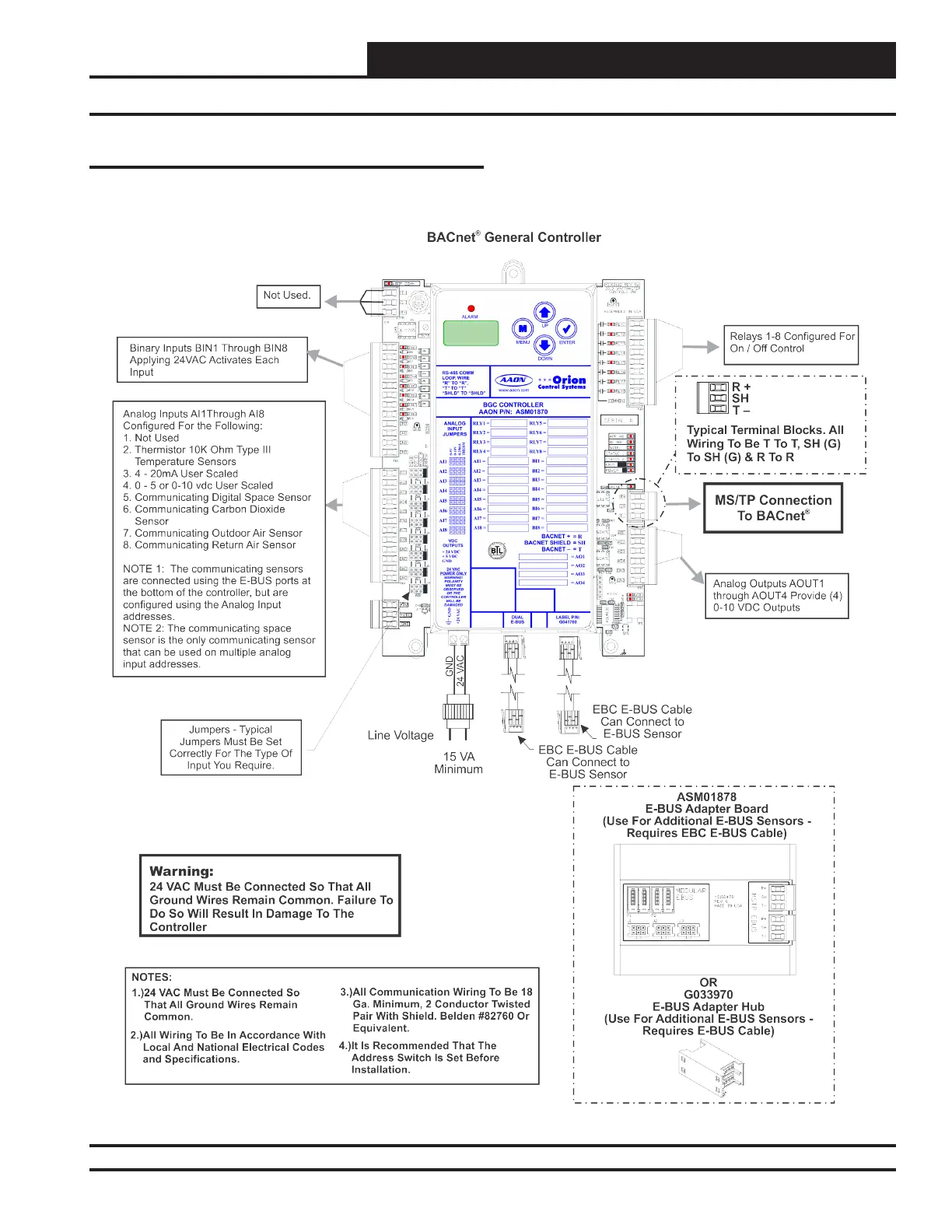

Figure 2: BGC Wiring Diagram
Inputs and Outputs Wiring
See Figure 2 below for wiring.
